Soilmec RT3-ST, 02 2003 Electrical Schematic – Factory Spec Diagram

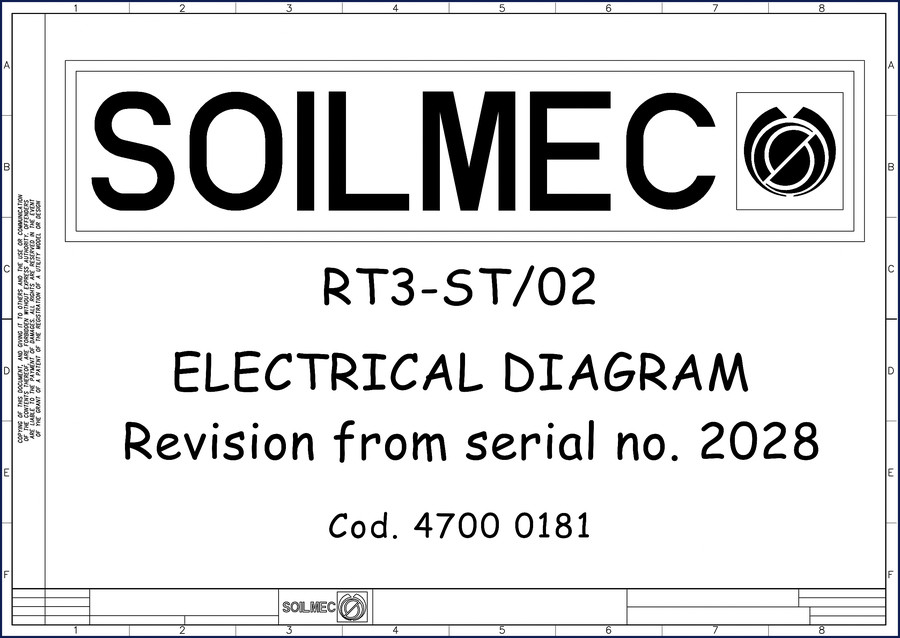

You’ve got a Soilmec RT3-ST that won’t crank, or a warning light that stays on. Aftermarket wiring diagrams are guesswork at best. This is the actual Soilmec factory electrical schematic, revision from serial number 2028, coded 4700 0181. It’s not a reprint or a scan of a copy. It’s the original 2003 OEM document covering the 02 variant. Sixteen pages of verified circuits that tell you exactly where every wire, relay, and fuse belongs. I’ve used enough bad diagrams to know: when a circuit protector is rated 85A on sheet 2, you don’t swap in a 100A breaker and hope.

What’s Inside the 16-Page Factory Schematic

This diagram covers the full machine: battery feed, starter motor circuit with 50mm² cable, preheating system, engine stop coil, alternator charging path, pressure transducer, and the entire instrument panel including warning lamps. Page 2 shows the 85A circuit protector (F1L) and the battery disconnector Q1. Page 4 details the pressure display and engine rev counter wiring. Each sheet is dated 23-12-03 and approved by the engineer. Wire cross-sections are given in mm² — where not indicated, assume 1.5mm². These are the specs your repair needs to match.

Battery and Starter Circuit (Sheet 1)

Start at the batteries GB1 and disconnector Q1. The 50mm² red/black cable to starter M1 must be sized right — undersize it and you get voltage drop that kills cranking speed. Circuit protector F1L (85A) protects the main feed. Relay K2, contacts 2,4, and diode B7 are shown. If your preheating circuit protector F3 (120A) trips on cold starts, you need to check the preheating induction elements against the diagram, not swap parts. The manual marks every junction: X1.1, X1.2, X1.3 — you can trace continuity without guessing.

Preheating and Engine Stop Systems

Sheet 2 shows the engine stop coil LA protected by a 1A fuse, powered through relay KSK and heater relay WK. Limit switches S15-S17 and lever switches S1-S4 control the interlocks. If your RT3-ST won’t shut off when you turn the key, check the limit switch wiring against pins X1.4 and X1.LA. The 16mm² preheating circuit runs through circuit protector F3 (120A) to the induction elements. Do not bypass the protector — I’ve seen melted harnesses because someone used a bolt instead of a fuse.

Pressure Transducer and Warning Lamps (Sheets 4-5)

The pressure transducer B1 connects to display P6 and relay modules K8.1-K8.13. Warning lamps H1-H4 for headlights are on sheet 1; sheet 5 covers lamp test button S8, coolant temperature indicator, clogged air filter lamp H7, oil temperature lamp H10, and filter closed lamps. The wiring for each lamp runs through connector X3.14-X3.20. If a lamp doesn’t light during test, you can isolate the fault to the specific pin without tearing the dash apart.

3 Reasons OEM Beats Aftermarket Diagrams

Aftermarket schematics often merge multiple revisions or drop wire colors. This Soilmec diagram is revision-locked to serial no. 2028 — it’s the exact build of the machine. Wire color codes are solid (e.g., WK/red for preheat, WH black for generator D+). The circuit protector ratings are factory-verified, not guessed. You also get the original part numbers like “F3 120A” — no cross-referencing needed. I’ve had jobs where a generic diagram had the starter relay coil on the wrong pin. That mistake costs a day. This one doesn’t.

Audience Fit: Who Needs This Schematic

If you own or maintain a Soilmec RT3-ST/02 drilling rig, this is the electrical bible. DIYers with some electrical experience can trace circuits using a multimeter and the factory notes. Home garage enthusiasts who do their own heavy equipment repair will appreciate the clear sheet layout and the 1.5mm² default convention. Beginners should work alongside someone who understands automotive wiring — but the diagram itself is readable: relays are labeled K3.1-K3.6, connectors are X2.1-X2.6, and every junction is numbered. Pair it with a good training resource like Automotive Wiring for fundamental theory. If you work on other brands, check the JLR L359 Electrical Circuit Diagrams Job1 Issue 2 or the Porsche 911 Carrera 4/2 Wiring Diagrams Vol 7 for passenger vehicles. For loaders, the Volvo L110E L120E Electrical System Schematic is available. And for a broader industry context, see the Automotive Industry Overview.

Frequently Asked Questions

Does this schematic cover the entire electrical system of the Soilmec RT3-ST/02?

Yes, from batteries to warning lamps, but it does not include hydraulic or mechanical diagrams. It’s strictly the wiring and components.

What torque specifications are listed in this manual?

None. It’s an electrical schematic — torque values belong in a service manual. You won’t find any fastener specs here.

Can I use this diagram for a different Soilmec model or serial range?

Only if the machine is an RT3-ST, 02 variant with serial number after 2028. Earlier serials may have different wiring. Check your machine’s serial plate before relying on this diagram to avoid misdiagnosis.

Is this the same as a service repair manual?

No. A service manual includes removal, installation, and overhaul procedures. This is purely the electrical schematic — 16 sheets showing wire paths, connector locations, and component ratings. You need both if you’re doing major electrical repairs, but the schematic alone gets you through tracing and troubleshooting.

You can stop chasing bad information. Access the Factory Manual now and start working from the same diagram Soilmec’s own technicians used.
