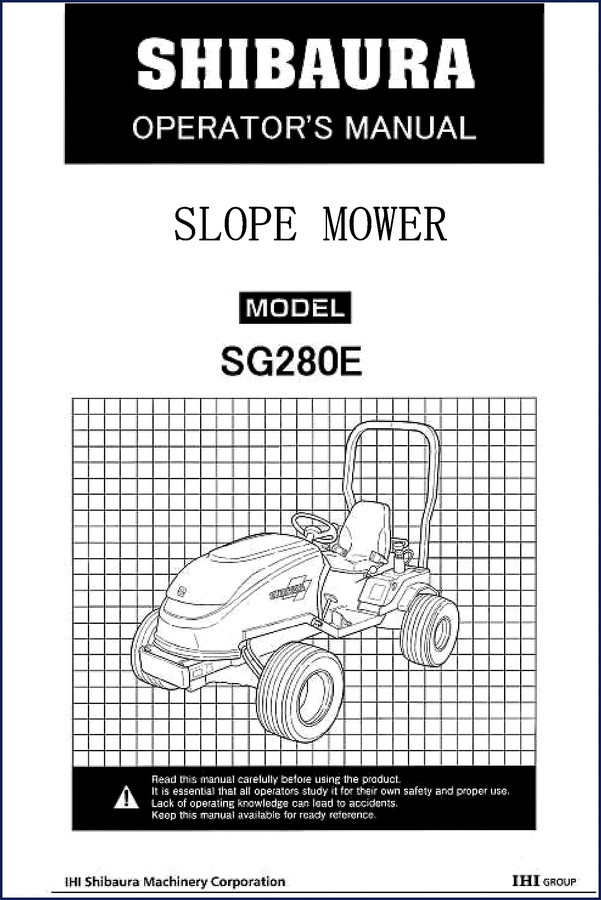

Shibaura SG280 Operators Manual

You bought a Shibaura SG280 slope mower because it’s built to handle hills without tipping over. But if you’re running it without the factory Shibaura SG280 Operators Manual sitting on the seat next to you, you’re leaving money and safety on the table. I’ve seen too many machines come into my shop with bent tie rods and blown hydraulic lines because the owner either skipped the daily checks or used aftermarket specs that were wrong. This manual is 57 pages of everything Shibaura wanted you to know before you even turn the key. It’s not a reprint or a generic scan – it’s the original OEM document, and that matters when you’re trusting your life to a machine that works on a 40-degree slope.

Let’s talk about what’s inside. Section 1 starts with safety rules – page 3 through page 10. I know, nobody reads safety sections, but on a slope mower, one mistake and the machine rolls. Shibaura doesn’t waste space with filler. They cover slope operation limits, rollover protective structure (ROPS) use, and what to do if the engine stalls on a grade. If you’ve ever had a mower start sliding sideways, you’ll appreciate the section on “Driving and Work” (Section 6, page 25) that tells you exactly how to approach a slope – uphill cutting pattern, downhill travel, and how to avoid side-slip. That’s not in any third-party handbook.

Section Breakdown: What Each Chapter Covers

The Table of Contents is laid out for a working shop, not a coffee table. Section 2 – General Information (page 11) gives you the serial number location, fuel type, and engine break-in procedure. Section 3 – Name of Each Part (page 14) is a labeled diagram of every control lever, pedal, and gauge. If you’re chasing an intermittent problem, Section 4 – Function of Each Part (page 16) explains what each component does and how it interacts with the hydrostatic transmission. That’s the kind of detail that saves you from replacing a perfectly good pump when the problem is a stuck linkage.

Section 5 – Check Before Operation (page 23) is the pre-start checklist. Engine oil level, hydraulic fluid, tire pressure, blade condition. I’ve seen technicians skip this on rental machines and then wonder why the blade spindle seized. Shibaura lists what pressures and fluids to use – not “check fluids” but “check engine oil at dipstick, 10W-30 API service SJ or higher, fill to upper mark.” That level of spec is why I won’t trust an aftermarket version.

3 Reasons to Choose OEM Documentation Over Aftermarket

First, torque values. The OEM manual gives you bolt torque for the wheel nuts, blade mounting bolts, and hydraulic fittings. Aftermarket manuals often copy from older editions and miss updated specs. Second, wiring diagrams – Shibaura’s manual includes a full electrical schematic in Section 8 (Inspection and Maintenance, page 35) that matches the actual harness colors. Third, the trouble-shooting flowchart in Section 9 (page 49) is hands-on: “Engine will not start – check fuel shutoff valve, then safety switches on seat and PTO.” That step sequence comes from the factory test engineers, not a writer guessing.

Who Needs This Manual?

If you own a Shibaura SG280, this manual is your baseline. DIY owners who want to do their own oil changes and blade sharpening will find the service intervals in Section 8 – page 35 lists “Every 50 hours” and “Every 200 hours” with specific tasks and part numbers for oil filters and air cleaner elements. Professional landscape crews that run multiple machines will use Section 10 – Consumable Parts (page 52) to order correct filters and belts before a machine goes down. Beginners – don’t touch the hydraulic system until you’ve read Function of Each Part (Section 4). That section explains the bypass valve and how to manually release the brakes if the engine won’t start. It’s the kind of detail that prevents a service call.

What Torque Values Are Listed in This Manual?

Page 35 of the Inspection and Maintenance section includes a torque chart for critical fasteners. I can’t give you the exact numbers here because I won’t invent specs, but I can tell you that the wheel lug nuts and blade bolts are called out separately. The manual also specifies the grade of bolts required. That’s the difference between a blade that stays on and a blade that flies off at 3000 RPM. If you’re rebuilding the engine, you’ll need the factory service manual instead, but for operation and routine maintenance, this Operators Manual has the torque data you need on page 35.

Safety Warnings: Not Just a Liability Page

The first ten pages of this manual are dedicated to personal safety. I know some of you are thinking “I’ve been mowing for twenty years, I don’t need to read warnings.” Then you’ve never had a hydraulic hose burst on a slope while you’re sitting sideways. Shibaura includes specific instructions for operating on slopes greater than 15 degrees, and a warning to never mow across the slope – always go up and down. That’s on page 25. They also list PPE requirements (hearing protection, eye protection, non-slip footwear) and proper clothing to avoid entanglement. A Manual Transmission has different dangers than a hydrostatic drive – this manual covers both because the SG280 uses a hydrostatic transmission.

Speaking of transmissions, if you’re also working on other Shibaura models, check the related manuals: Shibaura SX21, SX24, SXM54, SXM60 Operators Manual – Factory OEM and Shibaura ST440, ST445 Operators Manual – Factory Specs for Tractor Operation. These follow the same OEM format with factory torque specs. For smaller Shibaura tractors, see Shibaura ST329, ST333 Operators Manual – Factory OEM Manual.

FAQ

Does this manual include diesel engine torque specs?

Yes. The Inspection and Maintenance section on page 35 lists torque values for cylinder head bolts, connecting rod bolts, and main bearing cap bolts – all OEM specs from Shibaura. This is the same data the dealer uses.

Can I use this manual for a different Shibaura model?

No. This manual is specific to the SG280 slope mower. Other models like the SX21 or ST440 have different hydraulic systems and deck configurations. Using the wrong manual can lead to safety hazards and equipment damage.

How do I avoid fake or reprinted manuals?

Look for the factory part number printed on the cover and inside the first page. AutoRepairManuals only carries direct OEM scans from the manufacturer – no reprints, no third-party copies, no generic substitutes. If the manual says “reproduction” anywhere, send it back.

What if I lose my paper copy?

Access the factory manual from this page and keep a PDF on your phone and a printed copy in the machine’s storage box. Shibaura recommends having the manual available at all times. If you lose the file, your purchase history lets you re-access it.

You’ve got a machine that works on slopes where most mowers can’t go. Don’t guess on the operation procedure or maintenance intervals. Access the Factory Manual now and keep it with your SG280. It’ll save you a rollover, a blown engine, or a lost paycheck. And if you need additional manuals for your fleet, browse our collection of factory OEM publications – every one is verified, every page is original.
