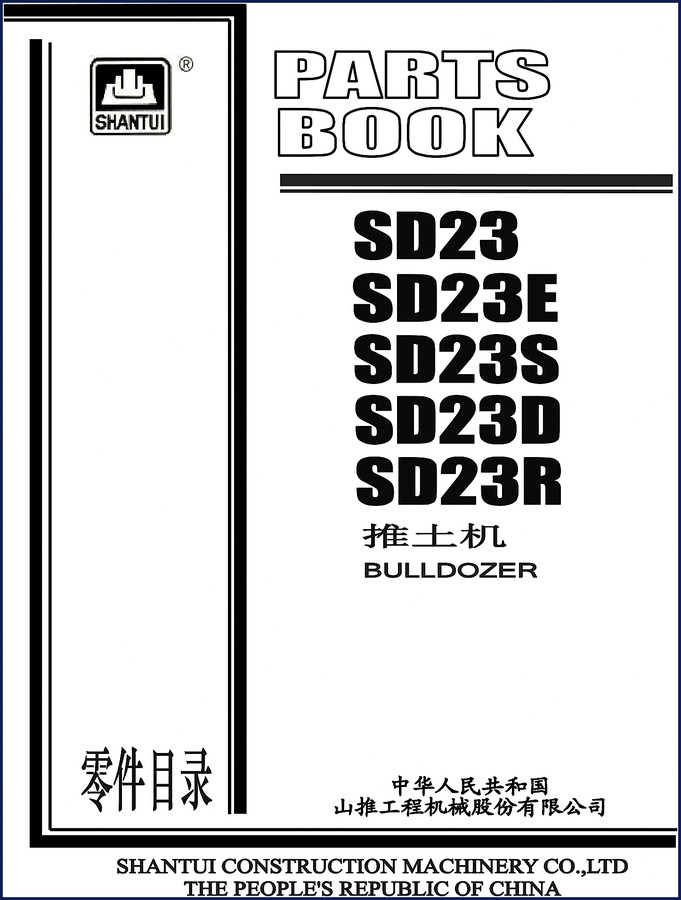

Shantui SD23, SD23E, SD23S, SD23D, SD23R Parts Catalog – Factory Parts Book

Mike Callahan here. I’ve been wrenching on heavy iron for 28 years, and I’ve seen more money wasted on wrong parts than on bad beer. If you’re trying to fix a Shantui bulldozer – whether it’s a standard SD23, a long-track SD23E, a desert SD23D, a swamp SD23S, or a rubbish-handling SD23R – you need the factory parts book. Not a scanned copy, not a third-party rehash. The real deal. This Parts Catalog from Shantui is 332 pages of OEM part numbers, exploded diagrams, and quantity tables that tell you exactly which parts are shared across all five models and which are unique. No guesswork, no returns because you ordered the wrong bellhousing bolt.

Why an OEM Parts Catalog Beats Aftermarket Lists

Aftermarket parts catalogs are compiled by people who never held a wrench on a Shantui. They transpose numbers, miss supersessions, and often list generic items that don’t fit. The factory book starts with the actual drawing from the Shantui engineering department. Each figure – like Fig. 101 for the engine mount (pages 3–4) or Fig. 202 for the torque converter – shows the assembly exactly as it left the factory. The quantity column tells you if that bolt is used on all five models or only on the SD23D. That matters when you’re ordering for a desert machine with different seals and undercarriage.

7 Systems with Sectioned Diagrams

This parts catalog is divided into eight chapters following the machine’s systems. The first chapter – 发动机关联零件 (Engine Related Parts) – covers everything from the engine mount to the fuel control linkage. Each figure has its own page range: for example, the radiator and piping take up Figs. 109 and 110, spanning pages 19–25. The second chapter covers the drivetrain: torque converter, transmission, steering, and final drives – Figs. 201–210 on pages 41–65. Every figure has a clean exploded view with callouts that match the part number table. You point at the part you need, read the number, order it. You don’t waste time cross-referencing internet forums.

Torque Converter and Transmission: Get the Right Seals and Gaskets

If you’ve ever had a transmission oil leak after a rebuild, you know how critical the correct seal part number is. In this catalog, the torque converter section (Figs. 202–203) shows every O-ring, gasket, and wear ring. The SD23E uses a different output shaft seal than the standard SD23 because of the longer track frame. The book flags that difference in the quantity column with a model designation above the number. No ambiguity. You order the seal for your exact variant, and it fits the first time.

Does This Catalog Include Undercarriage Parts?

Not directly. The undercarriage – track chains, sprockets, rollers, idlers – is covered in a separate Shantui chassis parts manual. This catalog focuses on the powertrain, cooling, fuel system, and operator controls. If you need track components, check the SHANTUI SD16/SD16E/SD16L Parts Catalog which shares many undercarriage concepts. For the larger machines, the SHANTUI SD42-3 Bulldozer Parts Book or SHANTUI SD32 Bulldozer Parts Book will give you the same factory-level detail for those models.

Source Authenticity: Printed by Shantui Construction Machinery Co., Ltd.

The front matter of this book – 前言 – states it was compiled by Shantui Construction Machinery Co., Ltd. in China. That’s the OEM, not a reproduction house. The foreword explains that the parts book covers five models and that quantities listed without a model mark are common to all. That official statement alone is worth more than any aftermarket version. If you rely on a third-party site that claims “OEM‑compatible,” you’re taking a risk on mismatched numbers. This book eliminates that risk. Compare that to what you get from general automotive industry overview sites; they don’t have the specific torque converter seal dimensions for an SD23R. The Automotive Industry Overview on Wikipedia gives background on trends, but not part numbers. Stick with the factory source.

FAQ – Common Questions About This Parts Catalog

Does this manual include engine internal parts?

No. The engine itself (short block, cylinder head, pistons, etc.) is covered in a separate “Parts Book of Engine,” as noted on page 2. This catalog lists only the parts that attach the engine to the machine: mounts, air cleaner, exhaust, flywheel housing, power take-off, and related.

Is there a digital version I can search?

Yes, the file available here is a high-resolution PDF. You can search by part number, figure number, or description.

How do I know which part fits my specific SD23 variant?

Look at the quantity column in the parts table. If a row has a model code written above the number – e.g., “SD23S” – that part is used only on that variant. If no code appears, the part is common to all five models.

Can I use this catalog to rebuild a transmission from scratch?

This is a parts catalog, not a service manual. It gives you the part numbers and quantities needed. You will still need the factory service repair manual for disassembly, clearances, and torque specs. The parts catalog ensures you order every correct seal, bearing, and snap ring before you open the case.

If you’ve got a Shantui SD23 series bulldozer in your shop, stop guessing on part numbers. Get the factory book on your screen or printed out. It pays for itself the first time you avoid a wrong order. Follow the link below and Access the Factory Manual now.
