Shantui SD16, SD16E, SD16L Parts Catalog

If you’ve ever ordered a part for an SD16 and ended up with something that doesn’t fit because you guessed the model variant, you know the frustration. That’s why this 278-page Shantui SD16, SD16E, SD16L Parts Catalog sits on my bench. It tells you exactly which parts are common across all three models and which ones are specific to the SD16E or SD16L. No guesswork, no return shipping fees. Just the Shantui part number and the exploded view that shows you where it goes.

Engine Mounting and Flywheel Housing: What the Catalog Shows

Flip to the ENGINE MOUNTING PARTS section. You’ll see the flywheel housing broken into three sub-assemblies (FLYWHEEL HOUSING ASS’Y 1/3, 2/3, 3/3). Each one has its own figure number and page range. If you need the part that bolts the engine to the frame, you pull the figure, find the callout, and read the part number across the table. The catalog also lists the Valve (Pressure Relief Valve under TORQUE CONVERTER) and every seal and gasket in the driveline.

Fuel System and Electrical: Common Replacement Parts

The FUEL TANK, FUEL PIPING, and FUEL CONTROL LEVER sections are all there. So is the full ELECTRICAL SYSTEM with CAB ELECTRICAL, INSTRUMENT BOX, SAFETY SWITCH, and BATTERY. Need a new neutral start switch for the SD16L? Look under SAFETY SWITCH. The exploded diagram shows the bracket, the switch itself, and the wiring pigtail. You order the right one the first time. Also, the radiator piping and wind break are covered under RADIATOR PIPING AND WIND BREAK and RADIATOR MOUNTING PARTS – both sections have their own figure numbers.

Torque Converter and Transmission: Critical Assemblies

This catalog goes deep into the powertrain. Sections include TORQUE CONVERTER SUCTION PIPE, SCAVENGE PUMP, TURBINE AND STATOR, PRESSURE RELIEF VALVE, and TORQUE CONVERTER HOUSING. Then it moves into the TORQFLOW TRANSMISSION CASE, REAR COVER, REVERSE CLUTCH, 1st CLUTCH, and 2nd and 3rd CLUTCH. Every clutch pack has its own figure – you can decode the exact number of plates, springs, and pistons without disassembling first. The BEVEL GEAR AND SHAFT and STEERING CLUTCH sections follow. If you’re rebuilding a transmission or steering system, you need this on the table next to the workbench.

Does This Catalog Cover the Steering and Brake Systems?

Yes. There are dedicated sections for BRAKE (two figures: BRAKE 1/2 and BRAKE 2/2), BRAKE PEDAL AND LINKAGE (two figures), BRAKE LOCK LEVER, and STEERING CONTROL LEVER. The STEERING CASE AND MAIN FRAME appears in two figures, covering the mounting brackets and the main frame itself. Also included: EQUALIZER BAR, TOW EQUIPMENT, TRACK FRAME (multiple figures), IDLER, and TRACK FRAME COVERS. Every part that touches the ground is cataloged.

278 Pages of Verified Part Numbers – Why Factory Originals Matter

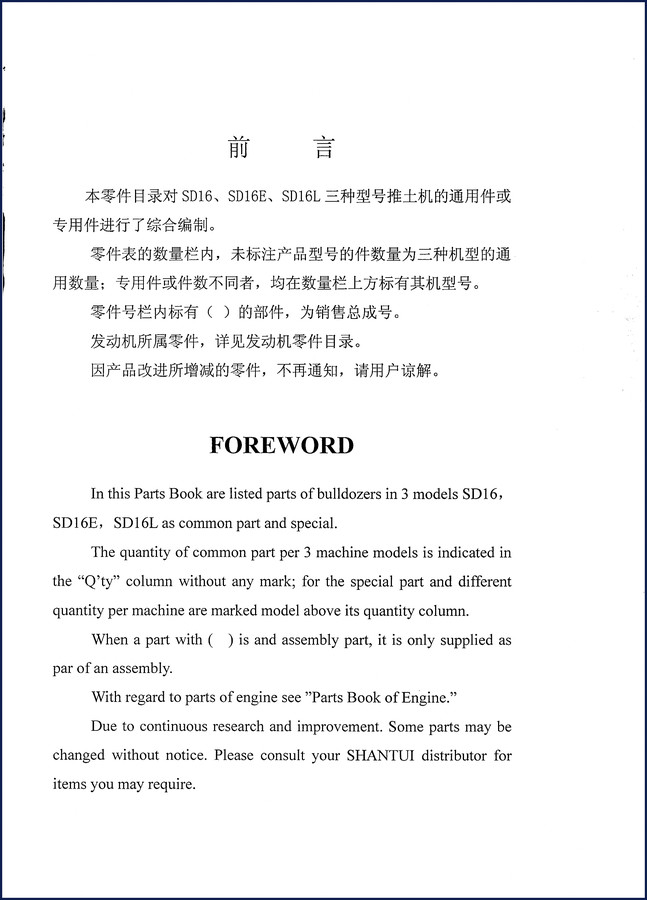

This is not a reprint from an aftermarket source. It’s the original Shantui Parts Catalog printed for dealerships. The part number column includes assembly numbers in parentheses when the part is sold as a sub-assembly. The quantity column shows which models use that part and how many. If the quantity is unmarked, it’s common to all three. Otherwise, the model number (SD16E, SD16L) is stamped above the quantity. That kind of detail saves you from buying a part that doesn’t fit. For related parts for other Shantui models, check out the SHANTUI SD16/SD16E/SD16L Parts Book (same catalog), the SHANTUI Bulldozer SD23 Series Parts Book, and the SHANTUI SD42-3 Bulldozer Parts Book. For general background on heavy equipment parts availability, see Automotive Industry Overview and another Automotive Industry Overview.

Bottom line: You want to order parts for an SD16, SD16E, or SD16L? Get this catalog open on your tablet or printed out. Every figure, every part number, every note about compatibility. Access the Factory Manual and stop wasting time on parts that don’t fit.
