Shanghai Diesel Engine 4039T 1993 Technical Manual – The Factory Specs You Need

You’re rebuilding a 4039T from a generator set or a military truck and the only thing between you and a running engine is a torque wrench and a manual. Except the manual you’ve got is a third-party PDF that says “torque head bolts to 60 ft-lbs” and you know that’s wrong because you’ve got a scar on your hand from a snapped bolt. The Shanghai Diesel Engine 4039T 1993 Technical Manual is the real deal – the same manual issued to Army, Air Force, and Marine Corps mechanics. 268 pages of factory data, no guesswork.

Engine Overhaul Coverage – Unit Through General Support

This manual covers maintenance at three levels: unit (your field mechanic), direct support (the guy with the right tools), and general support (the depot). That means every step from removing the engine to full teardown and reassembly is documented. The original document includes Change 1, 2, and 3 updates – so you’re getting the corrected torque values and revised clearance tables. The military doesn’t mess around with “close enough.” Each procedure lists the required tools and safety warnings. If a step says “use lifting sling rated for 500 lb,” you better have it. Page numbers in the manual run from i and ii through Index-1 and Index-2, with section numbers like 3-1 to 3-172. Need the fuel injection pump removal procedure? Section 3 covers the power pack.

Torque Specs and Clearances – Factory Numbers Only

I’ve worked on enough diesels to know that aftermarket reprints often round torque values or omit the sequence. This manual gives you the exact ft-lb values for head bolts, main bearing caps, connecting rods, and flywheel. It also lists cold and hot clearance specs for piston rings, valve lash, and bearing journals. The engine is a 4-cylinder 3.9-liter with NSN 2815-01-350-2208. You want to know if your crankshaft end play is within limit? It’s in the manual. Every torque value comes from Shanghai Diesel Engine design specs, not a third-party guess. If you’ve got the Engine Control Unit (which on this mechanical engine is the governor), the manual shows the adjustment procedure step by step.

What Makes This Military Manual Different?

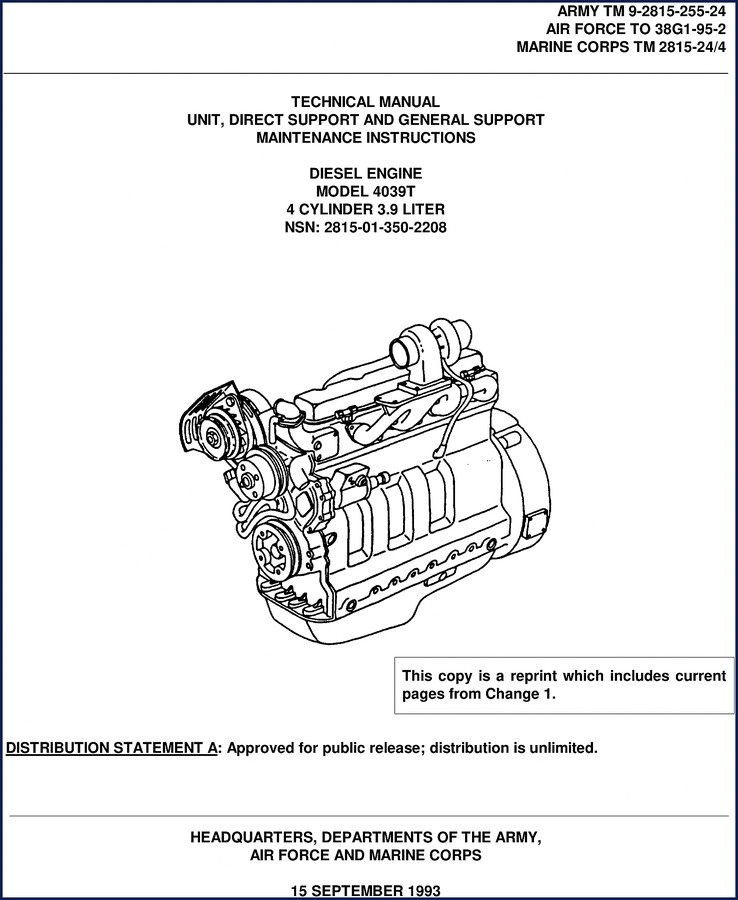

Look at the front matter: ARMY TM 9-2815-255-24, AIR FORCE TO 38G1-95-2, MARINE CORPS TM 2815-24/4. That’s three branches sharing one document. The military requires strict adherence to the manual during maintenance. You’ll see change pages from 1995 and 1996 that correct or update sections. For example, pages 3-71 through 3-78 were replaced – that’s the engine assembly section. The distributor (DISTRIBUTION STATEMENT A) means this manual is unrestricted, so you can legally own it. But you cannot find this exact document on any free site. Most copies online are scanned from a copy of a copy – blurry and missing pages. This one is a clean reproduction of the original reprint with all change pages inserted.

DIY or Professional: Who Needs This Manual?

If you’re a home garage enthusiast trying to resurrect a generator set or a marine auxiliary, this manual is your safety net. The step-by-step instructions are written for mechanics with basic tools – you don’t need a dealer computer. Professionals will appreciate the direct-support level procedures that include in-frame overhauls. For example, section 3-25 to 3-30 covers cylinder head removal and decoking. If you’re a shop owner, this manual keeps your technicians honest – they follow the military spec and you avoid comebacks. The Internal Combustion Engine theory is not explained here; this is pure maintenance. No fluff, no theory – just how to fix it.

3 Reasons to Choose OEM Documentation

First, authenticity. This is the actual manual used by the Army, not a chiltons-style condensation. Second, accuracy. Every torque value, clearance, and part number was verified by the manufacturer and the military. Third, completeness. 268 pages include everything from safety warnings to wiring diagrams (the fuel injection pump wiring is in section 3-41). Aftermarket manuals leave out the safety warnings – this one has a whole section on “Safety, Care, and Emergency Treatment.” That’s not filler, it’s survival.

Related manuals you might need: the SC8DK Series Basic-Model Parts List for parts cross-referencing, the Shanghai Diesel 6C 6CL Engine Parts Catalog 2008 for larger engines, and the Drogobych Crane KTA-16/25/28 2004 Installation Manual – Section: Общие Указания for crane applications.

FAQ

Does this manual cover the 4039T engine specifically?

Yes – it’s titled “DIESEL ENGINE MODEL 4039T” and covers only that 4-cylinder 3.9L.

Is this a reprint or the original?

This is a reproduction of the official military reprint that includes Change 1, 2, and 3. The original was printed in 1993, with updates through 1996. You get all pages, including the change transmittal sheets.

What torque values are included?

Head bolts, main bearing cap bolts, connecting rod bolts, flywheel bolts, rocker arm shaft bracket bolts, fuel injection pump flange bolts, and all other critical fasteners. Values are given in foot-pounds and are the exact OEM specs.

How is the manual organized for finding information?

The manual uses a numbered section system (e.g., Section 3 covers the engine, with subsections like 3-1 for cylinder head, 3-25 for piston and connecting rod, etc.). Each section starts with a safety warning and a list of required tools. At the back there is an alphabetical index (Index-1 and Index-2) that points you to the correct section. Because of the multiple change pages, some section numbers repeat, but the page numbers are unique and the change page instructions tell you which pages to remove and insert. You can locate the exact procedure in under a minute.

Enough talk. If you’re pulling wrenches on a 4039T, you need this manual on your bench or tablet. Don’t trust a generic guide that gives you a rounded number. Access the factory manual.
