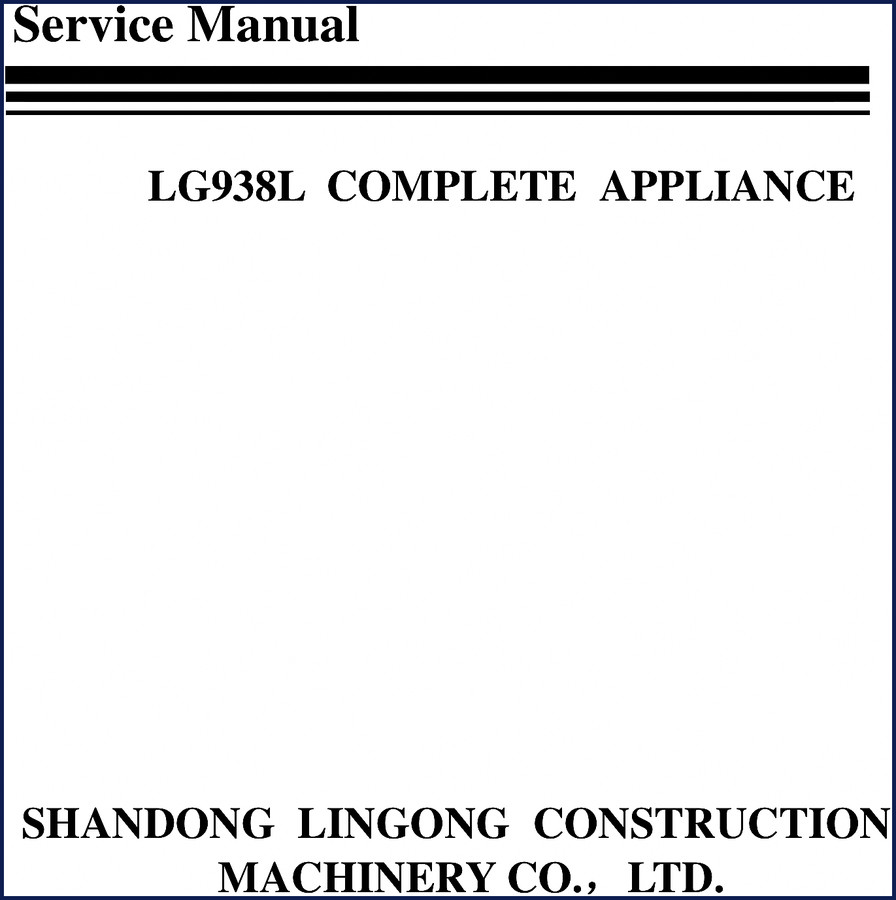

Shandong Lingong Construction Machinery LG938L 2010 Service Manual

If you’re wrenching on a Shandong Lingong LG938L wheel loader and you don’t have the factory documentation, you’re burning time and risking damage. This 2010 Service Manual — 290 pages of OEM specs — is what you need to keep that machine running without guesswork. I’ve seen too many guys chase air in a hydraulic circuit because they used aftermarket torque values. That stops here.

Engine Overhaul Coverage

This manual walks you through the full engine teardown and assembly. It covers the structure and working principle of the loader’s power unit — cylinder head, pistons, timing gear, and cooling system. You get the factory procedure for checking ring end gap and bearing clearance. No guessing on ring orientation or head bolt sequence. The section on the LG958L Complete Appliance Service Manual 2010 follows the same logic if you’re working on a bigger model.

Does This Manual Cover the Full Hydraulic System?

Yes — and it does it right. You get the hydraulic schematic, pump disassembly, control valve adjustments, and cylinder rebuild specs. Page 73 shows the charge pressure test points. That page alone saves you an hour of poking at hoses. The manual includes required tool lists for bleeding and pressure testing. For related models, check the Shandong Lingong Construction Machinery LG956 2007 Parts Catalog | OEM Factory M for part numbers that cross-reference to the LG938L.

3 Reasons to Trust OEM Documentation

First, aftermarket manuals often transpose torque values from other loaders. The LG938L has specific fastener grades. Second, the wiring diagrams in this manual are color-coded and trace every connector. Third, the factory service manual includes safety warnings that third-party reprints strip out. I’ve seen guys skip the lock ring installation note on page 112 — that costs you a transmission. The LG968 Wheel Loader 2007 Parts Catalog SDLG uses the same safety conventions.

Check the Wiring Diagrams Before You Start

Electrical diagnostics on these loaders can be a headache. The manual dedicates a full chapter to the instrument panel, sensors, and ECM connections. Every connector is labeled with pin numbers and wire colors. If you’re chasing a no-start, start with the starter circuit diagram. That saves you pulling the dash. Need more on gearbox fundamentals? Read up on Manual Transmission operation to understand the mechanical side before diving into the electrical.

Torque Specs: What You Get in the Manual

Torque values are listed in lb-ft and N·m for every critical fastener: cylinder head, main bearing cap, wheel lug nuts, hydraulic line fittings. The manual also gives you the tightening sequence and angle-of-turn where required. Page 26 is the master torque table — don’t skip it. Using the wrong spec on a boom cylinder base can snap the bolt. That’s a $2,000 repair because someone didn’t read the manual.

When you follow the factory procedures, you avoid stripped threads and leaks. The manual includes step-by-step disassembly and reassembly for the torque converter and transmission. For a deeper understanding of powertrain fundamentals, the Manual Transmission resource explains the gear ratios and shift logic.

One section that stands out is the “Structure and Working Principle of the Loader” — it lays out the entire machine’s systems before you touch a wrench. That’s the kind of overview that prevents rookie mistakes like disconnecting the wrong hydraulic line.

You won’t find reprints here. This is the original OEM file, 290 pages, 2010 edition, from Shandong Lingong Construction Machinery. No third-party editing, no lost pages, no faint schematics.

What is the publication year and page count?

2010, 290 pages.

Does it include wiring diagrams for the entire electrical system?

Yes. The manual covers the complete electrical system including the instrument cluster, ECM, sensors, starter, alternator, and all harness connectors. Each diagram is labeled with wire colors and connector pin numbers. This is the same set of drawings the factory techs use. If you need to trace a short or diagnose a sensor failure, you have the exact schematic. Without it, you’re guessing — and guessing on a loader’s 24V system can fry the controller. That’s why I won’t start electrical work on these machines without the factory wiring chapter open right next to me.

You need the factory data to keep that LG938L in the field. Access the factory manual for the LG938L right now and stop guessing.
