Schaeff SKL863 Parts Catalog

If you’re wrenching on a Schaeff SKL863 wheel loader and need to order parts, don’t rely on a generic exploded diagram from a third-party site. I’ve seen too many guys bolt on the wrong part because the aftermarket catalog showed a different revision. This is the factory Schaeff SKL863 Parts Catalog – 441 pages of OEM part numbers, grouped by assembly, with cross-references in German, English, and French. Every bolt, washer, seal, and bracket is listed with its exact identifying number. No guesswork.

Front Chassis and Loader Assembly: Exact Part Numbers for the SKL863

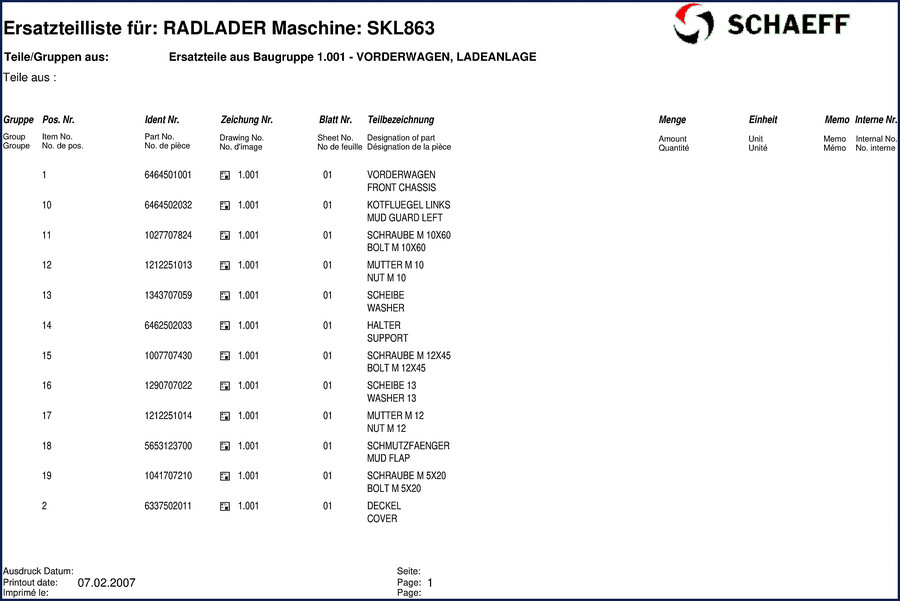

The catalog opens with Group 1.001 – VORDERWAGEN, LADEANLAGE (front chassis, loading equipment). This section covers the mud guards, light holders, lifting frame, bucket linkage, and all the hardware that holds them together. You get part numbers like 6464502032 for the left mud guard, or 5653123700 for the mud flap. Each fastener is listed: M10x60 bolt (1027707824), M12x45 bolt (1007707430), and the corresponding nuts and washers. If you need to rebuild the bucket tilt linkage, item 25 gives you the complete lever assembly with bushings. That level of detail saves you from ordering a whole assembly when all you needed was a bushing.

How to Use the Parts Catalog for Correct Ordering

Flip to any group – the layout stays consistent. Each page has a table with Item Number, Part Number (Ident Nr.), Drawing Number, Sheet Number, Description in three languages, Quantity, and Unit. The drawing reference points you to the exact explosion view. Before you call the dealer, write down the Ident Nr. from the column. That avoids the parts counter guy pulling up the wrong supersession. I keep a highlighter in my shop and mark the parts I’ve ordered – the catalog is 441 pages, so you’ll be flipping back and forth. It’s a working document, not a coffee table book.

441 Pages of Factory Specification Parts Data

Every page came from Schaeff’s own printout – dated 07.02.2007. That date matters because revisions happen. The catalog includes internal numbers (Interne Nr.) that dealers use for inventory tracking. You won’t find that in a scanned aftermarket copy. The three-language layout (German, English, French) also helps if you’re sourcing parts across borders. This is the exact same data the factory technicians used when assembling the SKL863 on the line.

Why OEM Parts Catalogs Beat Aftermarket Copies

Aftermarket parts catalogs often combine multiple models into one PDF, cropping out pages or using low-resolution scans. I’ve seen bolts listed with the wrong thread pitch because the aftermarket editor simplified the table. This factory catalog preserves every column: drawing number, sheet number, memo fields, and internal numbers. When a part has a note like “ALTE AUSFUEHRUNG” (previous version), you know there’s a supersession history. That information keeps you from ordering bolt M8x25 (1045707318) when the current revision requires M8x30 (1008707618).

3 Common Pitfalls When Ordering Parts for the SKL863

1. Misreading the quantity unit. The catalog lists “Menge” and “Einheit” – amount and unit. Some items are per assembly, others per axle. Double-check before you order ten of something that comes as a set of one.
2. Ignoring the drawing number. Part number 6464523015 (KIPPHEBEL KPL.) references drawing 1.001 sheet 01. If you only look at the part number without the drawing, you might grab the wrong lever for a different model year.
3. Assuming aftermarket cross-reference works. I’ve seen DIYers plug the part number into a generic cross-reference database and get a different number back. Stick to the factory numbers from this catalog. That’s your only guarantee.

For parts on related Schaeff loaders, check these factory catalogs:

• TEREX SCHAEFF SKL 871 Parts Catalog 4-97
• TEREX SCHAEFF SKL 861 Parts Catalog Edition 5.97
• TEREX SCHAEFF SKL 861 Parts Catalog Edition 1.94

If you want background on why factory documentation matters in heavy equipment, Automotive Industry Overview covers some of the standards. The Automotive Industry Overview page mentions supply chain and parts numbering systems – similar logic applies to construction machinery.

Does this catalog include torque specifications?

No, this is a parts catalog – it lists part numbers and quantities only. Torque values require a separate service manual for the SKL863.

How do I find the correct bolt for the bucket linkage?

Open Group 1.001 and look at the table rows near item 25 (KIPPHEBEL KPL.). Bolts like M12x35 (1045707030) and M12x25 (1008707529) are listed with their Ident Nr. Match the bolt to the position shown in the drawing referenced by the Blatt Nr. (sheet number).

Is the catalog in English?

Yes, every table includes column headers and descriptions in German, English, and French. The part numbers are universal.

Can I use this catalog to order parts for a SKL863 with a serial number after 2007?

This printout is dated 2007. Schaeff may have issued later revisions. The catalog is still a solid baseline, but verify with your machine’s serial number against the latest dealer database for any supersessions.

This factory parts catalog belongs on the workbench of anyone maintaining a Schaeff SKL863. It eliminates the back-and-forth of ordering wrong parts and keeps your machine running. Stop chasing aftermarket approximations. Access the Factory Manual now.
