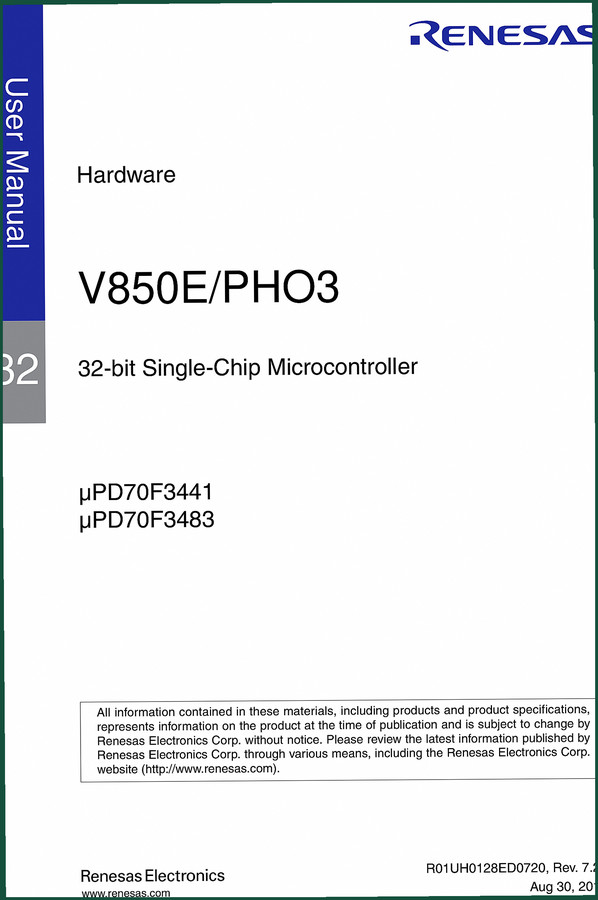

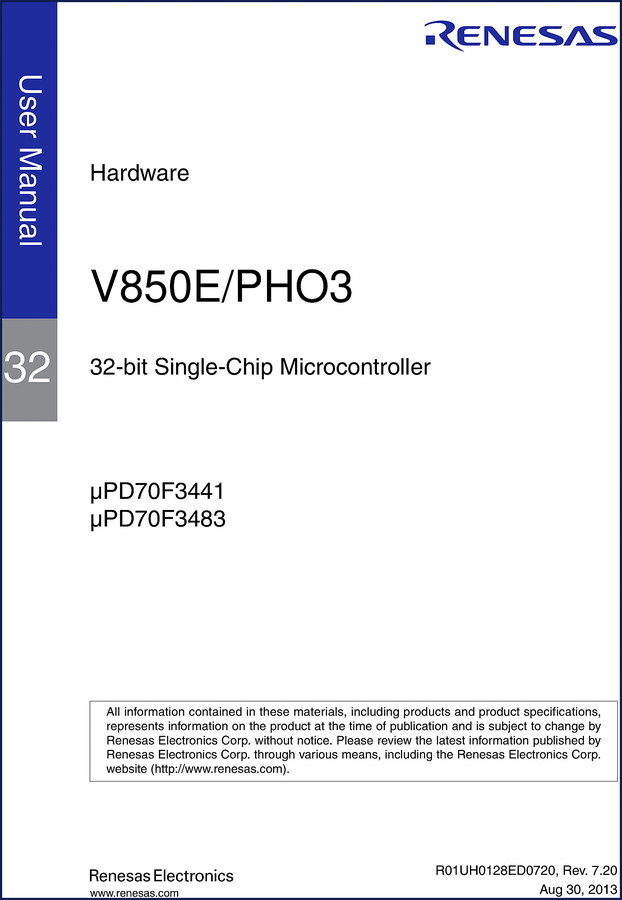

Renesas V850E/PHO3, μPD70F3441, μPD70F3483 2013 User Manual – Factory Microcontroller Specs

If you have ever swapped an engine control module and got nothing but a brick because you guessed at a pinout, you know the feeling. That ECU cooling fan relay stays off, the V850E CPU does not boot, and you are staring at a $600 paperweight. Aftermarket microcontroller summaries skip the critical details. You need the actual Renesas V850E/PHO3, μPD70F3441, μPD70F3483 2013 User Manual – a 1365-page factory document that covers pin assignments down to the last pull-up resistor.

Renesas designed these 32-bit parts for automotive and industrial control. The V850E core runs diagnostics, communication stacks, and motor control algorithms. Without the OEM register map, you are working blind. I see techs wire up a port group wrong and fry the SPI bus because they relied on a third-party reference sheet. Save the smoke for the barbecue.

Pin Functions: The Difference Between a Running ECU and a Brick

Chapter 2 of this manual is where you will live. It breaks down every port group – 0 through 11 plus port AL. Each group has its own configuration section with tables for pin function control, mode registers, and output types. The Alphabetic pin function list alone runs eight pages. Need to know whether port group 5 pin 12 is a PWM output or a general-purpose I/O? The answer is there. The manual also covers noise elimination techniques on the pin inputs. On a 32-bit microcontroller running at 80 MHz, a floating pin is not a minor issue – it is a crash waiting to happen.

Port Group Configuration Registers: Not Something to Guess At

The V850E/PHO3 uses a layered register structure for each port: PMCn (port mode control), PMn (mode), PFCn (function control), and PFCEn (function control expansion). There is also a Pn register for data I/O. The manual spells out every bit field in tables like Table 2-4 (PMCn register contents) and Table 2-5 (PMn register contents). If you are writing firmware for a replacement ECU, these are the exact addresses and bit definitions you need. One wrong bit in PFCEn can invert the logic level on a critical sensor line. Do not trust a forum post. Trust the OEM document.

Emergency Shut-Off Configuration – Safety First

Automotive microcontrollers handle fail-safe systems. The μPD70F3441 and μPD70F3483 include an emergency shut-off feature. Chapter 2.2.4 covers the PESCn (emergency shut-off control register), ESOSTn (status), and PESMKn (mask) registers. If you are working on a system that controls engine cut-off or brake booster isolation, you need to know how to configure those registers. The manual gives you the exact sequences for setting the mask bits. I have seen hacked ECUs that ignore emergency shut-off because the programmer did not know about these registers. That is a liability.

Why Factory OEM Documentation Beats Aftermarket Reprints

Third-party user manuals for the V850E/PHO3 often mix up the μPD70F3441 and μPD70F3483 memory maps. They cut corners on the general precautions for handling MPU/MCU products – things like ESD protection and supply voltage sequencing. This 2013 release from Renesas includes the full notice section with legal limitations, export control warnings, and best practices. If you are a shop owner, that notice also protects you if a customer claims the datasheet told you to do something that caused a failure. OEM documentation is the only version that holds up in a discussion with the manufacturer.

Manual Transmission systems that use this Renesas MCU rely on the same pin-level specs. The difference between a shift pattern that works and one that grinds gears is in the port configuration tables.

Who Needs This 1365-Page Manual – It Is Not Just for Engineers

Home-garage enthusiasts who repair ECU boards for a side business see a lot of Renesas V850E chips. This manual is for you. It covers the V850E CPU core, on-chip flash memory, and the full range of software development tools. If you are pulling a used ECU from a salvage yard and need to verify the pinout against your vehicle harness, Chapter 2 pays for itself in one hour. The manual assumes you have a multimeter and an oscilloscope – it does not hold your hand. That is how factory manuals work. No padding, no reprints, just the data you need to make a repair that holds.

Related manuals worth checking:

• Hitachi ZAXIS225US-3 2007 Operators Manual | OEM Factory Specs
• Masterpact NW08-63 IEC Low Voltage Products User Manual
• ASTRA HD8 User Manual 2005 Maintenance and Use

Frequently Asked Questions

Does this manual cover the on-chip flash memory?

Yes. Chapter 1.1 (2) lists on-chip flash as a feature. The manual discusses programming and reliability.

Can I use this to diagnose a V850E-based ECU that does not communicate?

Start with the pin function tables in Chapter 2. Check that the port group configuration registers (PMCn, PMn, PFCn) match the ECU schematic. Common failures: a misconfigured PFCEn register that disables the UART, or a floating emergency shut-off pin that holds the CPU in reset. The manual gives the exact bitwise settings for each register. Use the alphabetic pin list to locate the affected pins. If the pin hardware checks out, move to the write enable register (PRCMD) – a locked PRCMD can prevent any peripheral access. This diagnosis will take you through the first 200 pages of the manual, but it will narrow the fault to a register setting, not a dead chip.

Stop burning three hours hunting through forum archives for register addresses that may be wrong. Access the Factory Manual and get the pinout data, register maps, and safety information that Renesas put into this 1365-page document. It is the same manual Renesas engineers use. Your workbench deserves the same tool.
