Renault Trucks MГANE II, SCENIC II, F4R-776, F4R-T 774 Diagnostics Manual

If you are wrenching on a Mégane II or Scenic II with a Renault Trucks MГANE II, SCENIC II, F4R-776, F4R-T 774 Diagnostics Manual and you don’t have the factory diagnostics path, you are flying blind. I have seen too many guys burn a weekend chasing a fuel trim code using a generic OBD reader, only to find the real issue was a bad injector driver that the cheap tool never flagged. This is not a guess. This is the OEM document from Renault s.a.s. — the same one used by dealer techs — covering the Injection S3000 system (Program: AD, Vdiag: 4C). Everything you need to diagnose, interpret fault codes, run conformity checks, and replace components is laid out across 220 pages.

17B Gasoline Injection – System Overview

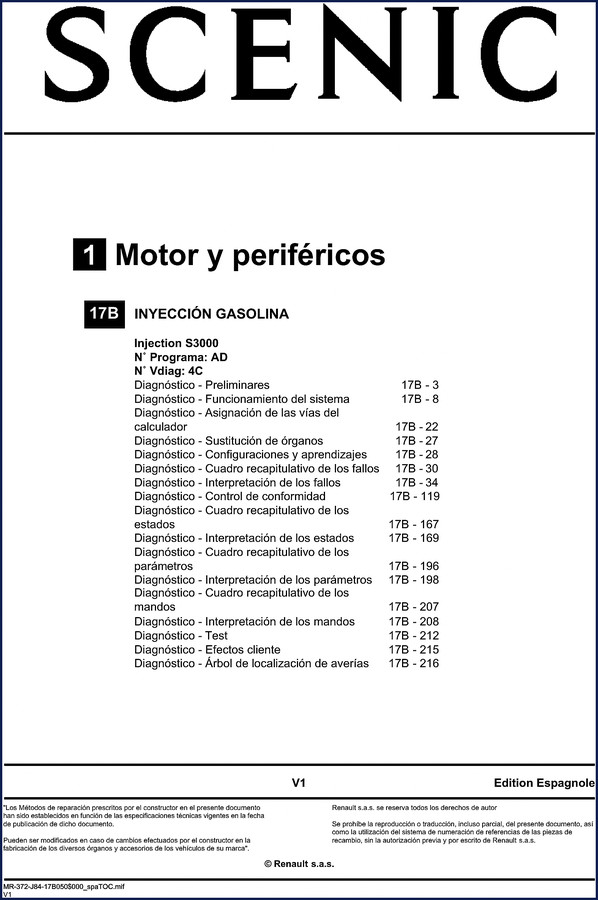

The manual opens with Diagnóstico – Preliminares (page 3), which tells you exactly what you need to get started. It lists the indispensable tools: the CLIP diagnostic tool plus a CAN probe — no substitutes. It also walks you through the + après contact forced procedure, which is easy to screw up if you skip the 5-second hold. Skip that step? The ECU won’t go into diagnostic mode. I have seen that on a 2005 Scenic — no communication, hours wasted. The section on Funcionamiento del sistema explains how the S3000 injection system actually works before you start throwing parts at it. That is the kind of context a parts house manual never gives you.

Diagnostic Fault Code Interpretation

This is the meat of the manual. The Interpretación de los fallos section breaks down over 50 individual fault codes, from DF001P (power stage) all the way to DF650 (whatever that one is — look it up). Each code gets its own sub-section explaining what triggers it, the conditions that cause it, and the step-by-step isolation procedure. Page 34 starts the list. For example, DF004 is the accelerator pedal sensor circuit. The manual tells you to check the dual-track signal, the 5 V reference, and the grounds in a specific order. If you skip to ‘check pedal position’ and you missed the broken ground at the ECU connector, you’ll replace a perfectly good pedal assembly. The fault code interpretation pages are where you earn your money back on this manual.

Required Tools and Setup for the S3000 System

Look at the Elementos indispensables para el diagnóstico section: “Tipo útiles de diagnóstico – CLIP + sonda CAN”. That is not optional. I don’t care if your aftermarket scanner reads Renault codes — it will not do the bidirectional actuations or the forced + after contact procedure correctly. The manual also covers Asignación de las vías del calculador — that is the pinout of the ECU connector. Page 22. When you need to backprobe a signal wire, you need to know which pin is which. Aftermarket diagrams are notorious for swapping the injector drive outputs on these F4R engines. This manual gives you the factory pin assignment, not a Chinese copy.

Component Replacement and Learning Procedures

After you replace a throttle body or an injector, the ECU needs to relearn its position. The Configuraciones y aprendizajes section tells you exactly how to initiate the learning sequence with CLIP. I have watched guys install a new throttle body on a Mégane II and then drive it for 30 miles hoping the idle would stabilize — it never did because they didn’t run the pedal-position reinitialization. That procedure is on page 28. Also, Sustitución de órganos (page 27) lists the safety steps: ignition off, wait 3 minutes for the ECU capacitors to discharge, and never disconnect the battery while the diagnostic tool is talking to the CAN bus. Burn that into your routine.

Conformity Checks and Validation

Once repairs are done, you run the Control de conformidad (page 119). This is the factory acceptance test. It checks that all system parameters fall within spec, that no fault code is active, and that the ECU has learned the correct idle and injection offset. If you skip this, your customer comes back next week with a CEL. The manual also includes Árbol de localización de averías (page 216) — a troubleshooting tree for common customer complaints like ‘engine hesitates’ or ‘hard start’. It is a logical diagnostic flow, not a shot in the dark.

Why Factory Documentation Beats Aftermarket

This is an original Renault s.a.s. publication, Copyright 2004, Spanish edition. It is not a reprint from some third-party flipper who scanned a copy and lost half the torque spec page. The manual states: “Los Métodos de reparación prescritos por el constructor … han sido establecidos en función de las especificaciones técnicas vigentes.” In other words, these are the methods the factory engineers wrote. The wiring diagrams come from Visu-Schéma, the official Renault schematic system. If you try to use a generic European wiring book, you will misidentify the injector ground circuit and create an electrical short. I have seen that happen. Stick with the original.

Who Needs This Manual?

If you own a Mégane II or Scenic II with the F4R-776 or F4R-T 774 engine — especially the gasoline injection S3000 — this is for you. DIYers who want to avoid the dealer $200 diagnostic fee will get the same factory data. Shop owners who need their techs to stop wasting billable hours on wrong-path diagnosis will benefit from handing them this book. And beginners? Read the Preliminares first. It tells you what tools to buy and the exact procedure to get the ECU into diagnostic mode. Do that before touching anything else.
