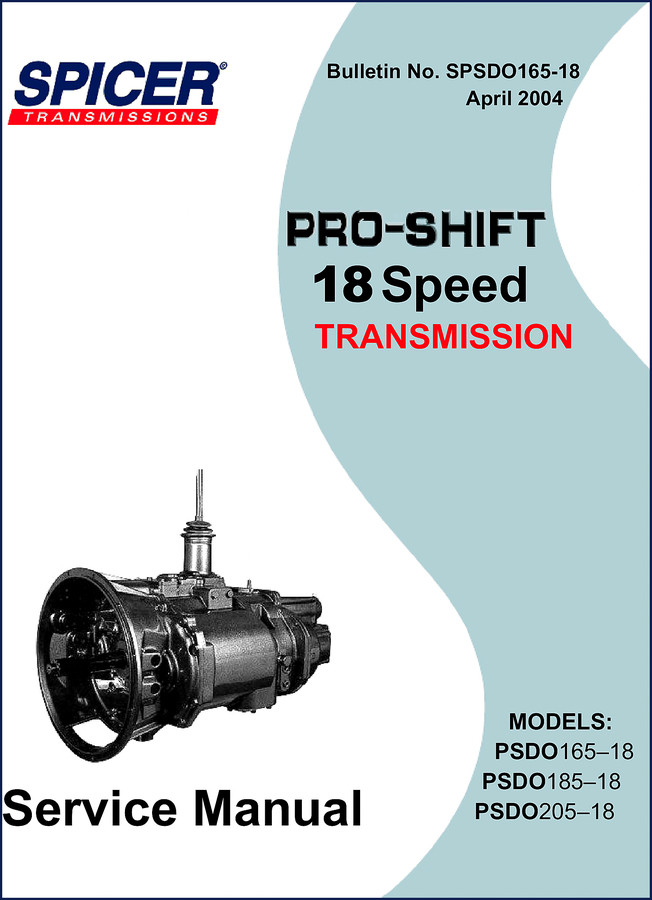

Dana Spicer PSDO165-18, PSDO185-18, PSDO205-18 2004 Service Manual

If you’ve ever pulled a main case apart only to find the aftermarket torque spec was off by 25 ft-lbs and ended up with a stripped countershaft bore, you already know why this manual exists. The Dana Spicer PSDO165-18, PSDO185-18, PSDO205-18 2004 Service Manual is the factory document from Dana Spicer, not a third-party reprint. It has 48 pages of actual OEM data, including the torque values you need to reassemble these 18-speed Pro-Shift transmissions without guessing.

Torque Specs on Page 4: Why You Need the Factory Numbers

Page 4 lists every torque specification for the PSDO165-18, PSDO185-18, and PSDO205-18. Bolts on the main case, range case, clutch housing, and shift lever assembly are all there with imperial units. I’ve seen rebuilds fail because someone used a generic chart from a repair forum. The factory numbers account for thread compound, material hardness, and seating sequences. Don’t skip this page.

Range Case Disassembly: Exploded Drawing on Page 14

Section VI starts on page 14 with a case exploded drawing that shows every snap ring, bearing, and gear in the range case. Page 17 walks you through disassembly in sequence—no skipping the order. If you reverse the snap ring removal sequence, you can damage the countershaft thrust washers. The manual is explicit about that.

Does This Manual Cover the Electrical Harness?

Yes. Section V on page 13 covers the electrical harness pin-out and routing. These 18-speed transmissions use a solenoid-operated shift control. If you mix up the harness connections, you’ll get no range shift or a stuck splitter. The diagram is OEM, not redrawn by some tech writer who never held a multimeter.

3 Maintenance Sections You Should Not Skip

The manual dedicates three full sections to maintenance: the air line piping diagram (page 7), filter regulator adjustment (page 8), and lubrication (page 9). Air pressure is critical on these units—below 90 psi, the shift fork won’t engage fully. The filter regulator section shows you exactly how to set the relief valve. Skip it and you’ll be pulling the valve body again in 500 miles.

Service Manual: Dana Spicer PSDO165-18, PSDO185-18, PSDO205-18 2004 Coverage

Section X (main case reassembly, page 33) and Section XI (range case reassembly, page 37) give you the order of operations. Bear in mind that the countershaft end-play spec is listed only in this manual—not in any aftermarket compilation. The troubleshooting section (page 42) lists twelve common failure modes with specific causes, like “grinding in 5th gear — check splitter brake piston clearance.” That level of detail saves you tearing down the whole box when the problem is a $15 seal.

If you’re working on a Pro-Shift 18-speed and you’ve been relying on a universal manual, you’re taking a risk. This factory manual is the same one that dealer technicians used in 2004. It covers the PSDO165-18, PSDO185-18, and PSDO205-18 identically except for torque values on the clutch housing bolts (see page 4 for the difference). I’ve rebuilt more of these than I can count, and I always pull this PDF before I touch an air line.

Related Manuals for the Same Transmission Family

• Dana Spicer 1372-A Service Manual – Factory Specs & Rebuild Guide
• Dana Spicer ES60-5, CM59, ES60-5A, ES60-5C, ES60-5D Service Manual
• Dana Spicer ES46-5 ES56-5 2002 Service Manual – 40 Pages of Factory Specs

For background on how these transmissions operate, you can read about Manual Transmission design principles. Another resource is Manual Transmission rebuild videos, but verify any torque numbers against the factory sheet—YouTube doesn’t replace the original spec.

FAQ

Should I trust the torque specs in this manual?

Yes. These are Dana Spicer OEM specs, not aftermarket estimates.

How does this differ from a generic transmission manual?

Generic manuals often skip the air line piping diagram on page 7, the filter regulator adjustments on page 8, and the specific electrical harness pinouts on page 13. This factory manual includes every step from disassembly through reassembly with exact torque values for every bolt, including the critical main case bolts on page 4. It also has the driver instructions section that explains proper shift timing, which most aftermarket books ignore entirely. If you are rebuilding a Pro-Shift 18-speed, you need this level of detail to avoid internal damage.

Don’t waste time with reprints or Google-translated PDFs. Access the Factory Manual and get the real spec data for your Dana Spicer PSDO165-18, PSDO185-18, or PSDO205-18 transmission. Torque values, exploded views, troubleshooting steps—all from the 2004 OEM release.
