Perkins Serie 1000 2000 User Manual – Factory Specs for Agricultural & Industrial Diesels

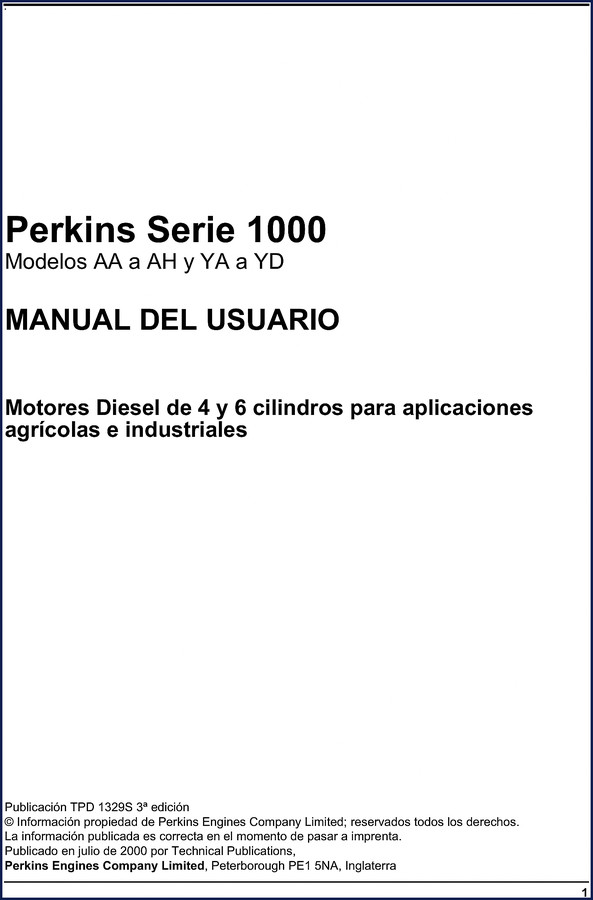

If you’re wrenching on a Perkins Serie 1000 diesel – models AA through AH or YA through YD – you need the factory User Manual. I’ve seen too many guys grab a reprint and then wonder why the head bolt torque felt wrong. This is the 2000 edition, 56 pages, printed by Perkins Technical Publications in Peterborough, England. Published July 2000, third edition. No aftermarket guessing.

Engine Identification and Safety (Chapter 1)

Chapter 1 of the Serie 1000 User Manual starts with engine identification, including serial number locations and a directory of Perkins service companies. There’s a full section on general safety measures – not the kind of generic warnings you skim past. Perkins lists hazards specific to these 4- and 6-cylinder diesels. You don’t guess where the lifting points are; they show you.

Preventive Maintenance Intervals – What You Need

Chapter 4 spells out the maintenance schedule. Oil change intervals, fuel filter replacement, coolant check – it’s all in there. The manual gives specific hours of operation between services. For a tractor or generator engine that runs every day, that schedule keeps you out of trouble. I’ve used these intervals on a 4-cylinder Serie 1000 that had over 10,000 hours. Follow it.

Does This Manual Cover the Fuel System?

It does. Chapter 6 (Diagnosis of Failures) walks you through common fuel system problems – hard starting, low power, black smoke. But more important, the manual includes the location of the fuel injection pump, fuel filter, and lift pump in Chapter 2’s engine views. You get a component location diagram with 24 labeled parts, from the fan to the turbocharger. That alone saves you time when you’re swapping a fuel line.

Troubleshooting: Chapter 6 Diagnosis of Failures

Chapter 6 is where you go when the engine won’t start or runs rough. Perkins provides a structured approach: check air intake, fuel supply, compression. No vague steps. For example, the manual tells you that if the engine cranks but won’t fire, check the emergency stop control first. Then test fuel flow at the injection pump. Real-world fixes, not theory.

Technical Data – Chapter 9 Specs

Chapter 9 is where the torque specs live. You get tightening sequences for cylinder head bolts, main bearing caps, connecting rods. The values are given in both metric (Nm) and imperial (ft-lbs) units. Also fluid capacities – coolant, oil pan, fuel tank – all in quarts and liters. Without this chapter, you’re flying blind. I’ve seen a head gasket fail because someone used a generic torque value from a website. Don’t be that guy.

Source Authenticity – Why Factory Beats Reprints

This is OEM. That means the data comes from Perkins Engines Company Limited, not a third-party compiler. The publication number is TPD 1329S, third edition. Compare that to the aftermarket “reprints” that often blur photographs, cut out critical torque tables, or omit safety warnings. If you’re a home garage mechanic working on a combine or an industrial pump motor, the factory manual is your insurance policy.

For earlier Perkins diesels, check the Perkins TU, TW, TX 1994 User Manual – OEM Factory Specs or the Perkins 4.41 2000 User Manual – OEM Factory Handbook for Model LM. The Perkins 4.2482, 4.248, T4.236, 4.236 1998 User Manual – OEM Specs covers older 4-cylinder engines. For driveline work, see the information on Manual Transmission and Manual Transmission.

If you’re working on a tractor, generator set, or industrial pump powered by a Perkins Serie 1000, you need this. The manual answers common questions without you having to hunt through forums.

Frequently Asked Questions

Does this manual include wiring diagrams?

It does not. The user manual covers mechanical operation, maintenance, and diagnostics. Electrical schematics are not part of this document.

What torque values are listed in Chapter 9?

Chapter 9 includes tightening specifications for cylinder head bolts, main bearing cap bolts, connecting rod nuts, and flywheel bolts. The procedure for the cylinder head involves multiple stages with a final torque angle. Without these values, you risk warping the head or blowing a gasket. The manual also provides fluid capacities for coolant and oil. For a 4-cylinder Serie 1000, the oil capacity is typically around 10 quarts, but confirm with your manual because years vary. The factory torque for main bearing caps on a Serie 1000 is given in both ft-lbs and Nm. If you don’t have this spec, you are guessing – and that costs you a rebuild.

You’ve got the engine on the stand and you need real numbers. Stop scrolling through forum posts that could be wrong. Access the Factory Manual and get the correct torque sequence, the right fuel system bleed procedure, and the preventive maintenance schedule that keeps your Perkins running another season.
