Perkins 4000 2001 User Manual – OEM Factory Specs for Diesel V Engines

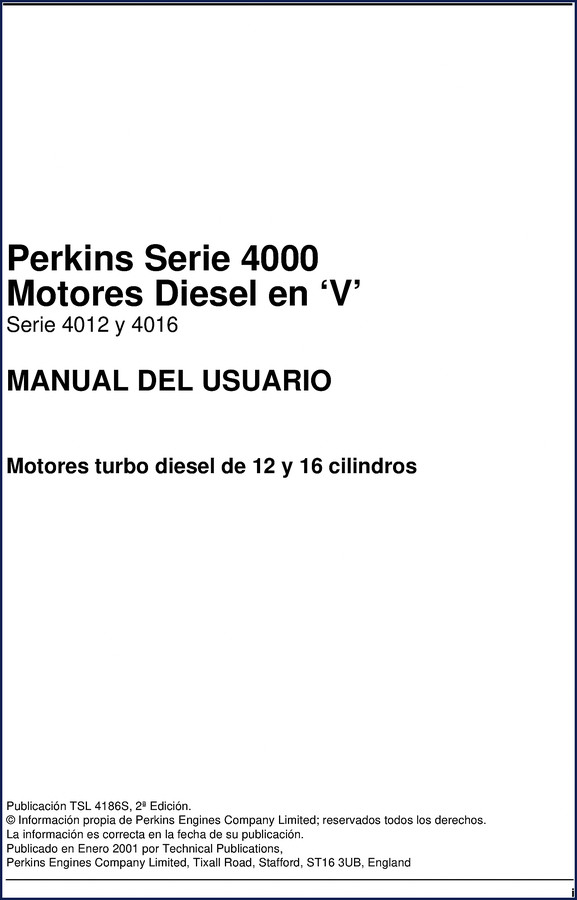

I’ve been turning wrenches for 28 years, and I’ve seen too many expensive engines trashed because somebody grabbed a generic spec sheet instead of the factory manual. The Perkins 4000 2001 User Manual is the real deal – 72 pages of original Perkins Engineering data, published January 2001. If you operate a 4012 or 4016 turbo diesel, this is the book you need on the workbench, not a photocopy from a third-party site.

Here’s what you get: engine identification, fluid capacities in U.S. quarts and gallons, instrument panel operation, preventive maintenance schedules, and a fault diagnosis chapter that actually routes you to the right cause. The manual covers both 12-cylinder and 16-cylinder V-configurations separately – Chapter 2 gives you engine views with component labels so you’re not guessing which hose goes where.

Engine Specifications and Fluid Capacities – Page 12

Page 12 lists the engine specifications for the 4000 series. You’ll find displacement, firing order, oil system capacity, coolant capacity, and fuel injection timing references. All numbers are in imperial units – quarts, pints, and degrees Fahrenheit. If you’re planning an oil change on a 16-cylinder 4016, you need the exact capacity to avoid overfilling. The manual also specifies the correct oil viscosity for ambient temperatures, which saves you from guessing at the parts store.

Safety Precautions: Why You Need Page 2

Page 2 contains the safety precautions. These aren’t lawyer filler – they cover high-pressure fuel injection hazards, hot turbocharger surfaces, and proper lifting points for a 2,000+ lb engine block. I’ve seen a guy lose three fingers because he didn’t read the section on fuel system pressure bleed-down. If you’re a DIYer working on a generator or marine installation, read this page first. It’s short, but it’s the difference between a good day and a trip to the ER.

Does This Manual Cover the 16-Cylinder Version?

Yes. The manual covers both the 4012 (12-cylinder) and 4016 (16-cylinder) engines. Chapter 2 provides separate engine views for each configuration, so you can identify components like the turbocharger arrangement, oil filter locations, and service points. The operating instructions in Chapter 3 apply to both, but the instrumentation differences are spelled out. If you’re working on a 16-cylinder, don’t assume the 12-cylinder data applies – the manual makes it clear where they diverge.

Operating Instructions and Instrumentation – Chapter 3

Chapter 3 covers the instrumentation panel: tachometer, oil pressure gauge, coolant temperature, and warning lights. It explains normal operating ranges and what to do if a gauge goes into the red zone. For example, the manual tells you to shut down the engine immediately if the charge air temperature exceeds 200°F. That’s the kind of spec that prevents a $15,000 turbo rebuild. If you’re starting a cold engine, follow the procedure for pre-lubrication – the manual includes a step-by-step checklist.

Preventive Maintenance Schedule – Chapter 4

Chapter 4 gives you the maintenance intervals in hours of operation. Oil and filter change every 250 hours, fuel filter every 500 hours, coolant replacement every 2,000 hours. The manual also lists the required tools – for example, a torque wrench capable of 80–100 ft-lb for the oil drain plug. It’s ridiculous how many people drain the oil and then hand-tighten the plug. Use the spec. I’ve had to helicoil more than one pan because of that mistake.

Fault Diagnosis – Chapter 6

Chapter 6 is a step-by-step fault diagnosis guide. It covers symptoms like hard starting, low power, high oil consumption, and overheating. Each symptom has a numbered list of possible causes with references to earlier chapters. This isn’t a generic “check the fuel filter” list – it’s Perkins-specific, including the fuel injection pump timing procedure. If you’re a DIY mechanic stuck on a job, this chapter will save you hours of guessing.

Frequently Asked Questions

What is the publication year of this manual?

2001. Second edition, published January 2001 by Perkins Engines Company Limited.

What types of engines are covered in the Perkins 4000 2001 User Manual?

This manual covers the Perkins 4000 series diesel V engines, specifically the 4012 (12-cylinder) and 4016 (16-cylinder) turbocharged models. It includes engine views, operating instructions, maintenance schedules, fluid specifications, and fault diagnosis for both configurations. The manual does not cover the 4006 or 4008 models – those are different series. If you’re working on a 4012 or 4016 in a generator set, marine propulsion, or industrial pump, this is the right document. It’s a user manual, not a service manual, so you won’t find overhaul procedures or internal clearances, but you will get the factory operating parameters, fluid capacities in imperial units, and safety protocols that are essential for daily operation and basic troubleshooting.

Is this manual available in English?

Yes. The original file is in English, though the OCR excerpt shows a Spanish version. The English version is the one sold here, with the same 72 pages and factory part number TSL 4186S.

Can I find cylinder head torque specifications in this manual?

No. This is a user manual, not a service repair manual. It does not contain internal engine torque specifications like cylinder head bolts, main bearing caps, or connecting rods. Those are in the Perkins service manual for the 4000 series. What this manual does include is the torque spec for the oil drain plug (80–100 ft-lb) and the fuel filter housing, as well as fastener tightening values for external components like the alternator mounting bolts. If you need head bolt torque, look for the Perkins 4000 service manual, not this user manual.

If you own or operate a Perkins 4000 series engine, you need the factory information. Don’t trust aftermarket summaries or photocopied PDFs that lose the page numbers and margins. Access the Factory Manual from AutoRepairManuals and put it on your tablet or print it out. I keep a copy in the shop binder for the customer’s generator set, and it’s saved me more than one call to engineering.
