Perkins 3012, CV12 2001 Workshop Manual

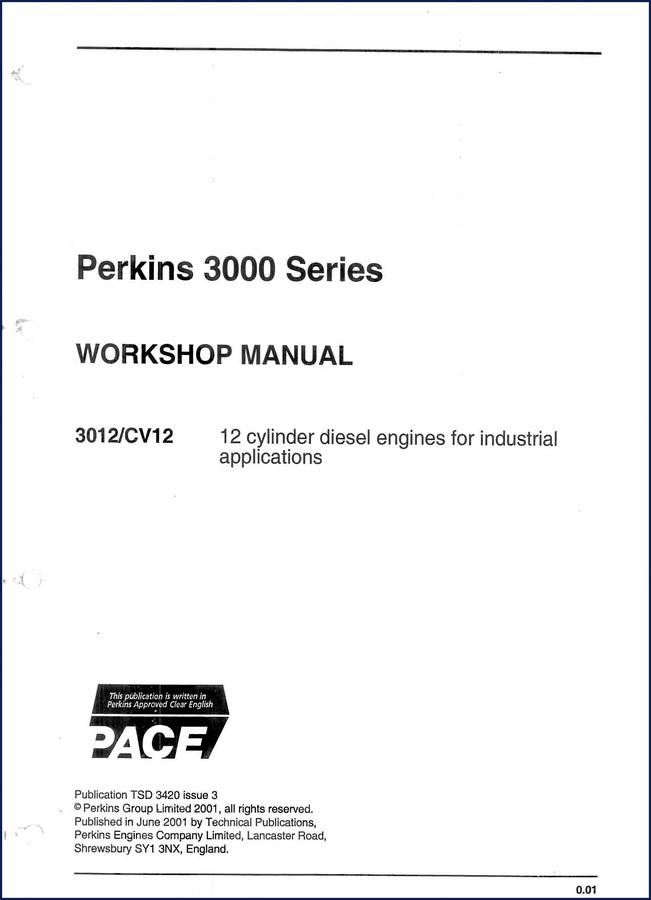

I’ve seen too many guys pull a head off a 3012 using an aftermarket manual that told them to torque the bolts to “spec” without telling them the tightening sequence. That’s how you warp a cylinder head and spend a weekend scraping gasket goo. This Perkins 3012, CV12 2001 Workshop Manual is the real deal — the same binder Perkins techs had on their benches in June 2001. Publication TSD 3420 issue 3. If you’re rebuilding a 12-liter diesel from this family, you want the factory document, not a photocopy of a photocopy.

Let’s talk about what’s inside those 264 pages. The table of contents runs from General information (page 10) all the way through the List of special tools (page 26). Each chapter is numbered, not just titled. Cylinder head assemblies start on chapter 12. Pistons and connecting rods on chapter 13. Crankshaft assembly on chapter 14. That means when you’re deep in a rebuild and need to know ring end-gap clearance, you flip to chapter 13, not hunt through 400 pages of generic text. The manual covers both the 3012 and the CV12 — 12 cylinder diesel engines for industrial applications. Perkins Group Limited published it in 2001, and it supersedes the old CV12 Series Workshop Manual (TSD 3169) completely.

Why the Factory Torque Specs Matter on the 3012 Crankshaft

If you’ve ever watched a main bearing cap bolt snap at 80 lb-ft because you trusted a third-party reprint, you know the cost. This manual lists every torque value by application — including angle-tighten procedures where required. The crankshaft assembly chapter (chapter 14) gives you the sequence for the main bearing bolts and the connecting rod bolts. No guesswork. You get the exact number for dry vs. lubricated threads. You also get the runout limits for the crankshaft journals. I’ve seen guys trust a digital caliper over the factory spec because they thought “a couple thou” wouldn’t matter. On a 12-cylinder industrial diesel, a couple thou means a wiped bearing in 500 hours. Don’t learn that way.

Special Tools List: Page 26 Saves You Hours

One section that separates this manual from every aftermarket PDF I’ve seen is the List of special tools on page 26. It’s not a vague “use a puller” — it’s actual Perkins part numbers for the cylinder liner puller, the valve spring compressor, the injection timing tool. If you’re running a shop, you order those tools once and they pay for themselves the first time you do a head gasket. For the home diesel guy, it tells you which tools you can fabricate or substitute. For example, the flywheel holding tool — you can make one from a piece of flat bar if you know the bolt pattern. This manual tells you the pattern. That’s the difference between a weekend job and a two-week headache.

What the Manual Covers: 7 Critical Systems

Here’s a quick look at the chapter list that matters most for an in-frame overhaul or a full rebuild:

• General information (10) — includes safety precautions, Viton seal handling, approved lubricants. Read this before you crack a wrench.
• Cylinder head assemblies (12) — valve guide installation, seat angles, tightening sequence.
• Pistons and connecting rods (13) — ring gap, pin fit, rod bolt torque.
• Crankshaft assembly (14) — bearing clearances, end float, thrust washer placement.
• Timing gears and timing case (15) — gear lash, timing pin location.
• Lubrication system (19) — oil pump clearances, pressure relief valve specs.
• Fuel system (20) — injection timing, pump mounting, injector protrusion.

Each chapter starts with a list of required special tools and a safety note. The manual uses Perkins approved clear English — plain language, not legalese. If you can read a torque wrench, you can follow it.

Source Authenticity: OEM vs. Aftermarket Documentation

I don’t trust aftermarket manuals on principle. They reprint old data, leave out updates, and often mislabel fastener grades. This is a Perkins factory workshop manual — published by Perkins Engines Company Limited, Shrewsbury, England. It’s the same document used in Perkins dealer networks. The amendment status page on page 2 shows it supersedes the previous edition completely. That means every torque value, every clearance spec, every wire color in the electrical equipment chapter (23) is current as of the 2001 publication. If you’re pairing this with a parts catalog, you’re set. For related factory documents, check the Perkins 1100 Series 2002 Workshop Manual – Specs, Torque & Repair or the Perkins Peregrine & Serie 1300 EDi Workshop Manual. For older engines, the Perkins 110T/180TI/210TI Diesel Engine Workshop Manual covers the turbo 4-cylinder lineage.

Does This Manual Cover the Fuel System?

Yes. Chapter 20 is dedicated to the fuel system — from the lift pump to the injectors. It includes the timing procedure for the rotary pump (if equipped) and the in-line pump. You’ll find the fuel injection pipe torque, the leak-off line routing, and the air bleed procedure. If you’re swapping injectors, check page 20 of the chapter for the pop pressure spec. That’s data you will not find in a Chilton’s.

Real-World Audience Fit: Who Needs This Manual

If you’re a home garage enthusiast with a Perkins 3012 in a generator set or an industrial pump, you can rebuild this engine with basic mechanical skills and this book. The manual assumes you know how to use a micrometer and a torque wrench — it does not assume you own every Perkins special tool. The “Useful information” section on page 10.05 covers how to clean components, proper lubrication, and how to identify reusable vs. replaceable parts. For the professional mechanic, this manual saves billable time because the specs are on the page you need, not buried in a table of tables. For workshop owners, it’s liability insurance — you have the manufacturer’s procedure in writing. If you’re dealing with a Manual Transmission coupled to this engine, the flywheel housing dimensions on chapter 22 let you match bellhousing patterns correctly. The same applies if you’re mating it to a different Manual Transmission — you need those bolt circles.

Is this manual for the 3012 or the CV12?

Both. It covers the 3012 and CV12 12-cylinder diesel engines for industrial applications.

Does it include wiring diagrams for the electrical equipment?

Yes. Chapter 23 covers the starting motor, alternator, and sensor wiring. It shows schematic diagrams with component locations. Not just a block diagram — actual wire colors and connector pinouts.

Can I use this manual for a marine version of the 3012?

This edition is for industrial applications. Marine versions have different cooling system configurations (heat exchangers vs. radiators). The basic engine mechanical data (cylinder head, crankshaft, pistons) is the same, but refer to a marine-specific supplement for the raw water pump and keel cooling.

How many pages is the manual?

264 pages. That includes the 17 chapters plus the special tools list and general information.

If you’re tearing down a 3012 or CV12, stop guessing. Access the Factory Manual and work from the same specifications Perkins used when the engine was built. That’s the difference between a rebuild that runs 8,000 hours and one that comes apart at 800.
