Palfinger PK 9501, PK 10501 2005 Parts Catalog

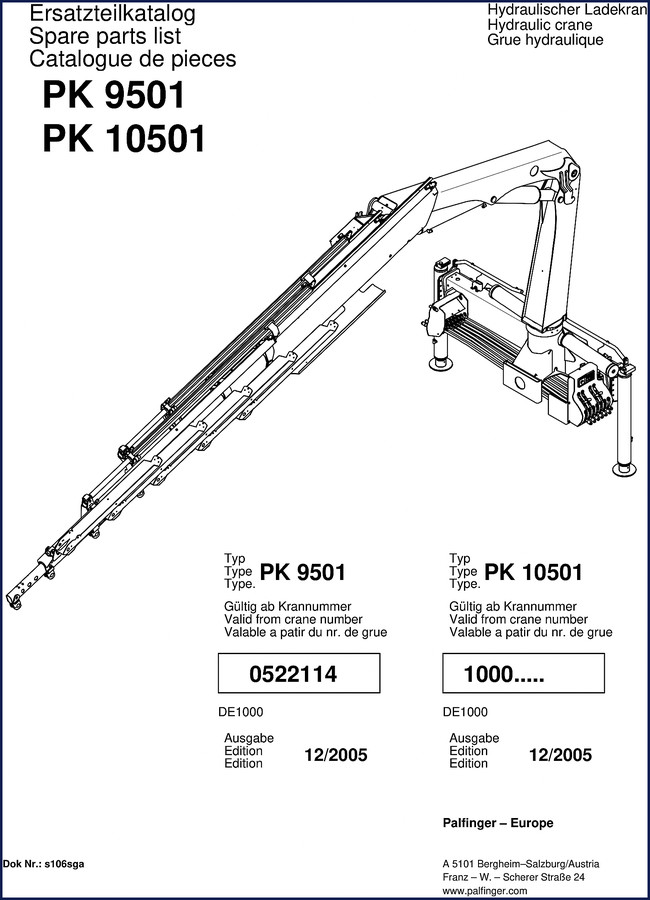

If you’re working on a Palfinger PK 9501, PK 10501 2005 Parts Catalog crane and need to track down the exact OEM part, this is the document you want on your bench. I’ve seen guys order the wrong extension box seal three times because they trusted a third-party catalog that didn’t match the factory drawing. This 168-page spare parts list is the real deal – direct from Palfinger, dated 12/2005. It covers both the PK 9501 (from crane number 0522114) and the PK 10501 (from crane number 1000). You’ll find the index, abbreviations (Abkurzungen), and a foreword in German, English, and French. The table of contents alone runs from section 010.0100 (crane base) to section 100.0200 (control valve RC001). That’s the kind of depth you need when a hose blows and the machine is down.

Crane Base (Kransockel) and Slewing Gear (Schwenkwerk) – Factory Breakdown

Section 010 handles the crane base (socle) – the foundation of the whole assembly. You get the exploded view and the part numbers for every bolt, bushing, and weldment. Section 020 covers the traversing gear (Schwenkwerk). If you’re replacing a slewing motor or a pinion, you’ll find the exact OEM reference here. Don’t guess on the spline count; this catalog gives you the factory code. Page 2 of the PDF shows the full index – you can see that section 031.0100 to 030.0600 covers the pipes and lube system (Verrohrung-Zentralschmierung). That’s a big deal because central lubrication lines are often routed differently depending on the crane serial number. The catalog matches the specific crane numbers listed on page 1.

Extension Boxes: R1, R2, R2X, R3X – Which One Does Your Crane Have?

The PK 9501 and PK 10501 use different extension configurations. Section 040 breaks down the Ausleger-R1 (extension box R1) and R2. Then section 070 gets into R2X and R3X. If your crane has a manual or hydraulic extension, the part numbers differ. I’ve seen guys order an R1 cylinder when they needed an R2X ram – that mistake costs hours and a restocking fee. This catalog lists each extension box as a separate subsection with its own page range. The piping diagrams (Verrohrung-R1,R2) are in section 060. You’ll also find the extension cylinders (Ausfahrzylinder) for R2X and R3X in sections 070.0600 and 070.0700. That kind of detail separates an OEM parts catalog from a reprint.

3 Major Fluid System Groups Covered

Palfinger splits the hydraulic systems into three major groups: the control piping (Verrohrung-Steuerung) for F,H and RC, the stabilizer support piping (Verrohrung-Abstützung STZS and STZY), and the oil cooler/tank assembly (Ölkühler + Öltank). Section 030 covers the control piping – note there are separate subsections for F,H (sections 030.0200, 030.0300) and RC (030.0400, 030.0500). The stabilizer circuits appear in sections 080 and 090. If you’re chasing a leak in the outrigger system, the piping diagram in section 080 will show you every fitting and hose length. The oil cooler section (section 100) includes the part number for the cooler core. Don’t try to match a generic cooler – the mounting bracket and port threads are specific to the PK series.

Palfinger PK 9501, PK 10501 2005 Parts Catalog: What’s Inside the 168 Pages

This isn’t a service manual – it’s a parts catalog. That means you get OEM part numbers, exploded diagrams, and ordering codes. The index at the front uses the Palfinger section numbering system: s106sga-010.0100, etc. Each section has a text page that lists the parts and a drawing page that shows the assembly. The catalog also includes an O-ring table (o-ringtabelle) and a hose fitting chart (schlaucharmaturen). Those are critical when you’re piecing together a hydraulic line from scratch. The document is multilingual – German, English, French – so the part descriptions are clear even if you don’t read German. The publication date is 12/2005, so it’s the correct revision for cranes built after that date. If you have a newer machine, you’ll want a later catalog, but for 2005–2008 models, this is the one.

Source Validity: OEM Palfinger vs. Aftermarket Reprints

I don’t trust aftermarket documentation. I’ve seen reprint catalogs that use scanned pages with missing part numbers or wrong hydraulic symbols. This file is a direct OEM PDF from Palfinger’s parts database (db-ekat-s106sga). You get the official Palfinger logo on page 1, the factory serial number ranges, and the authentic part codes. If you’re ordering a replacement control valve (Steuerventil) – say the RSQ 240 RC from section 090 or the RC001 from section 100 – you need the exact Palfinger part number. Aftermarket catalogs often substitute a generic valve that won’t fit the mounting plate. This catalog lists the OEM code and the associated hose kit. That’s the difference between a one-hour repair and a two-day re-plumbing job.

Frequently Asked Questions

Does this parts catalog include torque specifications?

No. This is a parts catalog, not a service or repair manual. You won’t find torque values or assembly procedures here. For torque specs, you need the corresponding Palfinger service manual for your crane model.

Can I use this catalog for PK 10501 cranes above serial number 1000?

Yes. The cover page states that the PK 10501 section is valid from crane number 1000 and above. The PK 9501 section applies from crane number 0522114. Check your crane’s serial number plate before ordering parts.

Is the manual in English?

Yes. The document includes German, English, and French side by side. The table of contents and part descriptions are trilingual, so English speakers can navigate easily.

How do I order parts using this catalog?

Use the part number listed in the text column for each section. The catalog includes an ordering instructions page (f.ersatzteilbestellung). Write down the part number, quantity, and crane serial number. Then contact your Palfinger dealer or order online using those numbers.
