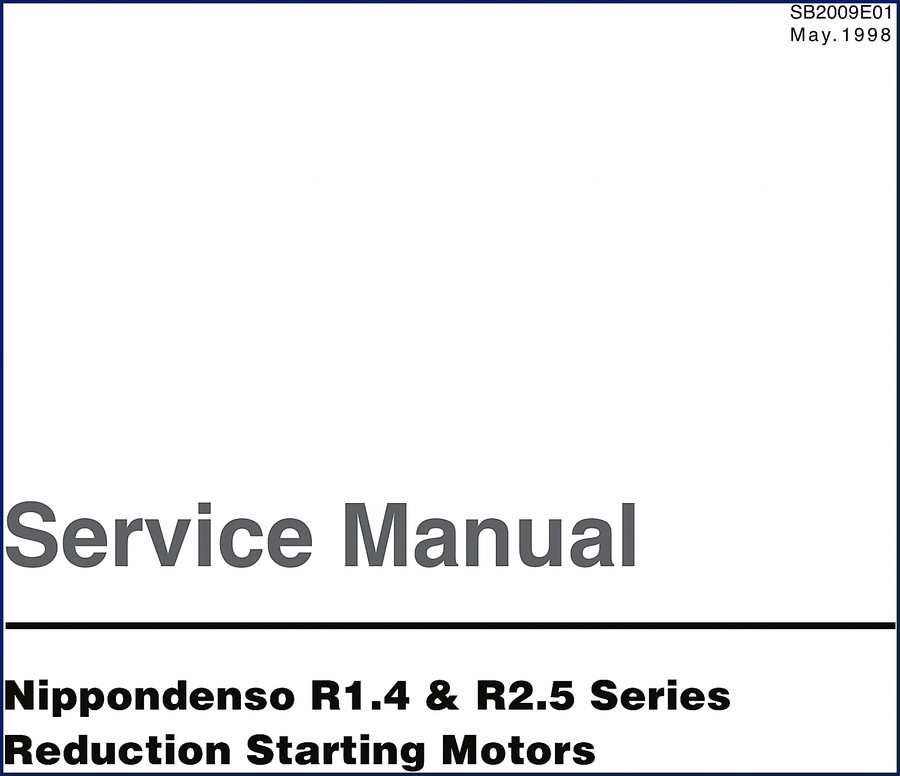

Nippondenso R1.4, R2.5 1998 Service Manual

I’ve been turning wrenches in San Antonio for 28 years. ASE Master since ’94. I’ve seen guys trash a perfectly good starter because they used a generic torque chart from some forum. This 30-page Nippondenso R1.4 and R2.5 Service Manual is the only document I trust when a truck comes in with a dead starter or a weird engagement noise. It’s the same manual the factory techs used in 1998, and it’s still the right way to do the job.

What the Specifications Section Tells You (Page 5)

Open to page 5 and you get the hard numbers: armature end play, brush length, commutator run-out, spring tension, pinion clearance. All in inch‑pounds and fractions. No metric-to-Imperial guessing. If you’re swapping a R1.4 or R2.5 starter on a medium-duty truck, you need those specs to set the shims right. Miss the armature clearance by 0.005″ and you’ll chew up the planetary gears inside a month.

Systems Operation: How the Reduction Starter Works

This manual doesn’t just hand you a diagram and walk away. Pages 7 through 10 explain the magnetic switch logic, the overrunning clutch action, and the planetary gear reduction path. There’s a starting motor operation diagram on page 10 that shows exactly where the current flows when you turn the key. If you’re chasing a “click‑no‑crank” issue, you need to understand that sequence before you throw a solenoid at it.

Testing and Adjusting – Off-Machine No-Load Test

Page 17 covers the no‑load test procedure. You’ll need a carbon pile load tester, a tach, and a DC ammeter. The manual tells you the acceptable current draw and rpm range for the R1.4 and R2.5. On a bench test I’ve caught armature shorts this way that a visual inspection missed completely. Also page 18 gives you the component test sequence – brush lead resistance, field coil continuity, commutator insulation. Don’t skip those steps.

Disassembly and Assembly – Torque Sequences on Page 26

When you’ve got a starter that’s been cooked or soaked in oil, you’ll need to tear it down. The disassembly section (page 23) shows the order to remove the through‑bolts, drive housing, and planetary set. Reassembly is on page 26. There’s a specific torque sequence for the three through‑bolts – something I’ve seen ignored by guys who just crank them down. The manual calls for 48–60 in·lb on those bolts. Over‑torque them and you’ll distort the housing and bind the armature.

Why You Need the OEM Manual, Not Aftermarket

I’ve bought “reprint” manuals that claimed to be for Nippondenso but had the wrong brush spring specs. This is the original service manual published by Nippondenso in 1998. 30 pages, no redacted sections, no “see dealer” notes. Every test point, every clearance, every wire color is factory‑verified. If you’re a fleet mechanic or a DIY guy who maintains your own box truck, this is the difference between a starter that lasts 100k miles and one that fails at 20k.

Real-World Use: R2.5 on a Hino Truck

Last month a local fleet brought in a Hino with a dragging R2.5. The generic parts catalog said the starter was “non‑rebuildable”. I grabbed this manual, ran the no‑load test on page 17, found a bad field coil, and replaced it. Saved them $1,200 for a new starter. That’s the kind of money this manual can save you when you know how to use it. If you’re working on heavy trucks, you may also need the Hino Truck Air Conditioner Retrofit Service Manual for other systems. Or if you’re into lawn equipment, check the White Outdoor LT-5 – 700 Series Rider Service Manual. For wiring diagrams unrelated to starters, try the Maruti MB308 Service Manual Procedures and Repair – Section: Section 8A Wiring D.

If your job involves the drivetrain, you might also want a Manual Transmission service manual to complement this starter manual. A Manual Transmission overhaul often requires removing the starter anyway – having both procedures in your library prevents step conflicts.

Frequently Asked Questions

Does this manual cover both the R1.4 and R2.5 series?

Yes. The manual title says R1.4 & R2.5. The specs and procedures apply to both series. There are separate no‑load test values for each model on page 17.

Are torque specs in Imperial units?

All torque values are given in inch‑pounds or foot‑pounds. No metric conversion needed. Page 26 lists the through‑bolt torque at 48–60 in·lb.

What safety information is included?

The manual opens with a full safety section (pages 2‑3) covering battery isolation, arc flash hazards, and proper jacking before removing a starter. It also includes WARNING labels for high‑current tests.

Can I use this to test a starter that’s still on the truck?

Yes. The “On Machine Starting Motor Diagnosis Procedure” (page 14) gives voltage drop tests and current draw checks you can do with the starter installed. You’ll need a carbon pile and a DVOM.

This is the manual that stays open on my bench whenever a Nippondenso starter comes through the door. 30 pages of factory data, no filler, no guesswork. Access the Factory Manual and get the specs that keep starters working.
