New Holland WE190, WE210, WE210 Industrial, WE230, WE230 Industrial Service Manual

If you have ever torqued a wheel lug nut on a WE230 using a generic spec you found on a forum and then watched it back off after a few hours of digging, you understand why this manual exists. The New Holland WE190, WE210, WE210 Industrial, WE230, WE230 Industrial Service Manual is 883 pages of factory‑printed instructions, not a third‑party rehash. I have been turning wrenches for twenty‑eight years and I still pull a manual like this when I need the real numbers. Skip the guesswork and go straight to the source that built the machine.

Volume Breakdown: Wheeled Excavators and Engine

This service manual comes in two volumes. The first volume (Print No. 84291045A) covers the chassis, hydraulics, electrical system, frame, and everything that makes the WE190, WE210, WE210 Industrial, WE230, and WE230 Industrial move and dig. The second volume (Print No. 87704086A) is dedicated to the engine. You need both if you plan on pulling a head or replacing a piston. The manual itself states on page 2 that the operator’s manual and parts catalogue should also be referenced for complete information. Page 2 also lists the CNH Italia contact for errors—that is how tight this documentation is.

Safety Warnings: Don’t Skip This Section

Page 3 starts with a blunt warning: “never attempt to clean, lubricate or adjust a machine while it is in motion.” It then goes into attachment lowering procedures, hydraulic pressure release, and proper blocking. I have seen guys skip this page and end up with a boom in the lap. The manual includes full lockout steps before any maintenance operation. That is not a suggestion; that is the procedure New Holland wrote for its own technicians.

7 Systems Covered in 883 Pages

Without a full table of contents here, I can tell you from the manual structure that it covers the following major systems: engine (in the separate volume), transmission, hydraulic system, electrical system, undercarriage, boom and arm, and cab controls. Each section includes required tool lists, disassembly sequences, wear limits, and torque values. The transmission section assumes you understand how a Manual Transmission works; it does not waste space explaining fundamentals. For older New Holland equipment, check the Sperry New Holland Model 31 33 36 Service Manual if you need earlier model data.

If you are working on a WE210 Industrial, this manual covers that variant and the standard WE210. The differences are noted in the hydraulic and electrical sections. No need to hunt for a separate supplement.

Does This Manual Cover the WE210 Industrial?

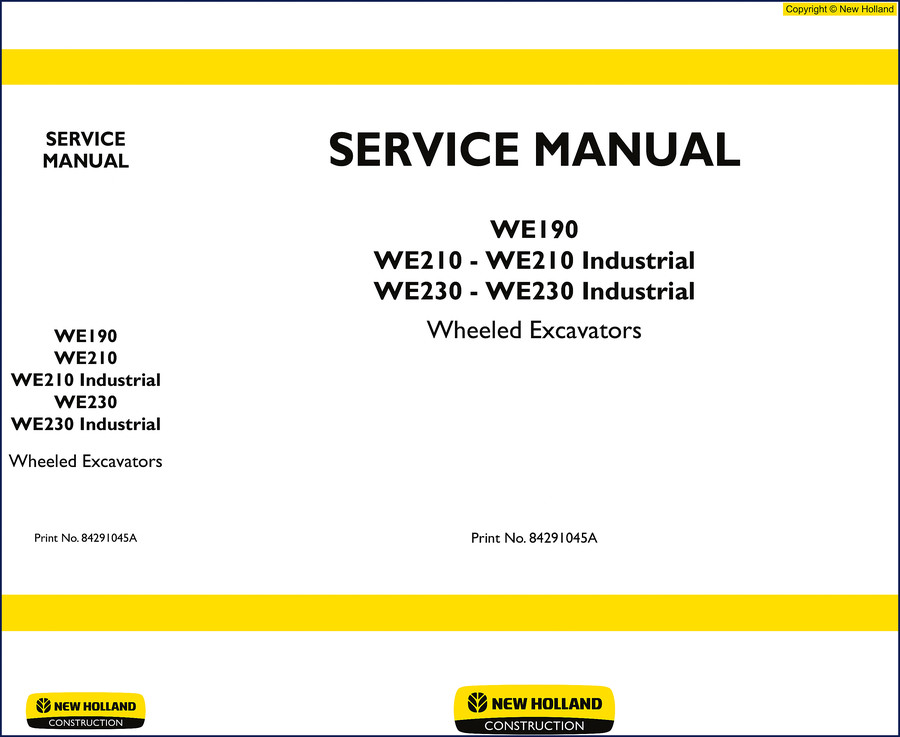

Yes. The cover lists WE190, WE210, WE210 Industrial, WE230, and WE230 Industrial. The same 883 pages apply to all five. The industrial variants have different counterweights and some hydraulic plumbing changes; those are spelled out in the frame and hydraulic chapters. Do not buy a separate book for the industrial model—this is the single source.

Get the Right Torque Data

Every fastener spec in this manual is factory‑verified. Want the wheel lug nut torque? It is in the axle section. Need the boom pivot pin preload? It is in the boom section. The engine volume gives you head bolt torque in lb‑ft, not Newton‑meters converted by some third‑party site. If you need a refresher on how a Manual Transmission operates internally, that is outside the scope of this manual, but the shift linkage adjustment procedure is inside. And for tractors, the New Holland T7510-T7550 2013 Service Manual – Factory Specs and New Holland T5.95, T5.105, T5.115 2013 Service Manual – 2173 Pages are separate products.

883 pages. No shortcuts.

FAQ

Is this manual for both the WE190 and WE210 Industrial?

Yes, it covers all five variants.

Can I use this for engine repair?

This service manual includes a separate Engine volume (Print No. 87704086A) covering the FPT engine. The “Wheeled Excavators” volume covers chassis, hydraulics, electrical, and frame. Both are needed for full service. The 883‑page “Wheeled Excavators” manual does not include engine internals; you will need the engine manual.

What safety precautions are listed?

Page 3 starts with a warning about lowering attachments before maintenance. The manual has a full “TO PREVENT ACCIDENTS” section covering lockout procedures, hydraulic pressure release, and proper jack stands.

Are torque specs provided for all bolts?

Torque values are scattered throughout each section. For example, the wheel lug nut torque is specified in the axle section, and engine bolt torques in the engine volume. This is an OEM manual, so every fastener specification is factory‑verified. You will not find generic “tighten until snug” here.

I have been down the road of aftermarket manuals that skip steps or use approximate values. This New Holland factory service manual gives you the exact procedure that New Holland-trained technicians use. If you are serious about keeping a WE190 or WE210 Industrial running right, stop relying on memory or internet forums. Access the Factory Manual and keep it on the bench next to your torque wrench.
