New Holland WE150 Compact, WE170 Compact, WE170C Railroad Service Manual

I’ve been turning wrenches for 28 years, and I’ve watched guys burn a Saturday on a hydraulic leak because they trusted an aftermarket PDF that had the wrong fitting torque. That’s not your problem with this manual. This is the original New Holland factory print – 783 pages, two volumes if you count the engine section, and every spec was written by the engineers who built the machine. You get the exact disassembly sequence, the OEM torque values for every bolt from the swing motor to the cab mount, and the electrical schematics that don’t skip a wire. If you’re working on a New Holland WE150 Compact, WE170 Compact, or WE170C Railroad wheeled excavator, this is the only paper you should have on the bench.

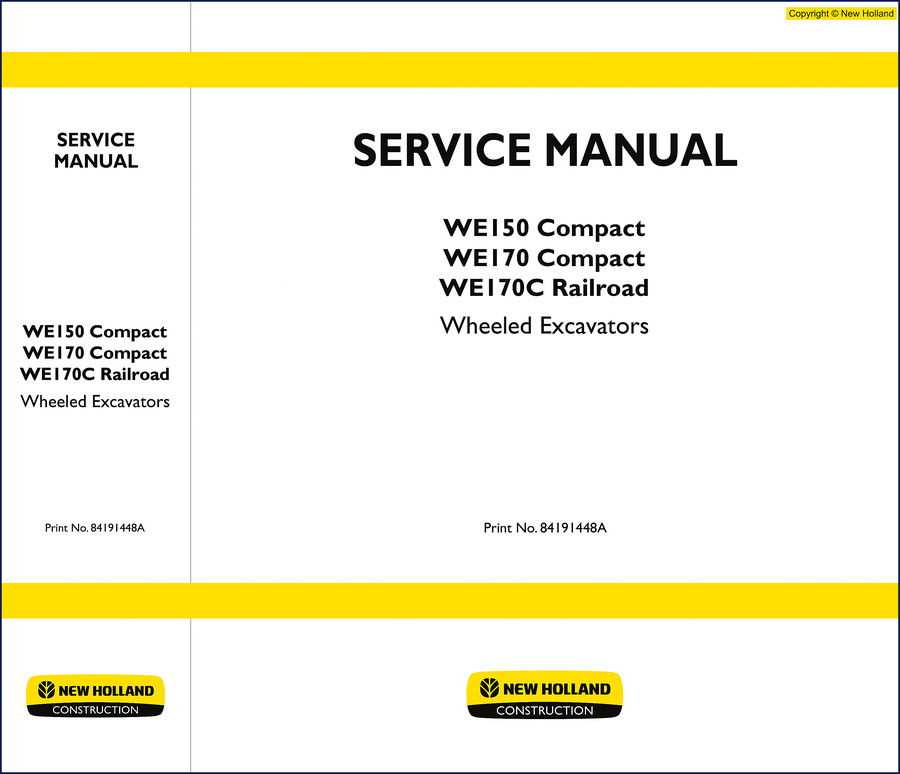

Page 1 of the manual carries the copyright and the model designation: “WE150 Compact – WE170 Compact – WE170C Railroad – Wheeled Excavators.” The print number is 84191448A. That’s the factory code. The document covers the entire machine except the engine – you get a separate engine manual (print 87659057A for the WE150, 87704086A for the WE170). That separation means the chassis and hydraulic sections aren’t cluttered with engine stuff. Every page is laid out for a tech who knows his way around a boom but doesn’t want to guess on a shuttle valve clearance.

Factory OEM Torque Specs & Fluid Capacities

Aftermarket manuals like to round torque values to the nearest ten. New Holland doesn’t. The sections on the final drive, the hydraulic pump mounting flange, and the slew ring bearings all give you the spec in lb-ft, and they’ll tell you the sequence. Need the charge pressure for the hydrostatic drive? It’s in the transmission chapter, right next to the low-pressure test port location. There’s a complete lubrication chart with capacities in quarts and gallons. If you’ve ever had a pivot pin seize because you used chassis grease instead of the specified NLGI grade, you’ll appreciate the table that lists every grease point, the interval, and the type.

Does This Manual Cover the Hydraulic System Completely?

Yes – the hydraulic section runs over 200 pages in the wheeled-excavator volume alone. It covers the load-sensing pump, the main control valve with all spool sections, the travel motors, and the boom/arm/bucket cylinders. You get schematics with labeled port pressures and the test procedures for each relief valve. One thing I like: they include the exact flow meter setup required for the implement circuit, so you can verify pump output without pulling the unit. The safety warnings on page 3 are printed in bold: “Before carrying out any maintenance operation, adjustment and/or repair on machines equipped with attachments… make sure the attachment is lowered and safely set on the ground.” That’s not a suggestion – it’s the factory procedure. You ignore that at your own risk.

7 Major Systems Covered

• Engine (covers only the service manual references; actual engine disassembly in separate volume)
• Hydraulic system (pump, valves, cylinders, motors, lines, and fittings)
• Transmission and driveline (powershift or hydrostatic, depending on model)
• Slew and swing brake
• Electrical system (full wiring diagrams, connector pinouts, control unit diagnostics)
• Undercarriage and final drives
• Cab, controls, and air conditioning

Each section starts with a list of required tools – not generic “basic hand tools,” but specific New Holland part numbers for pullers, seal installers, and pressure gauges. I’ve used the manual to rebuild a travel motor on a WE170 Compact, and the step-by-step procedure is written so you don’t have to flip back and forth. The illustrations are line drawings with exploded views, and every fastener is called out by size, grade, and torque.

Understand the Wiring Before You Touch It

The electrical section alone is worth the price if you’ve ever chased intermittent faults on a machine with a multiplexed harness. The manual gives you the full system diagram with wire colors, connector cavities, and the diagnostic procedures for the electronic control unit. There’s a dedicated section for the ESX control override – that’s the module that can lock you out if the machine senses a fault. Page references let you jump straight to the troubleshooting tree. I’ve seen guys replace a sensor pack because they guessed, when the real issue was a corroded terminal at the under-seat junction block. The factory manual tells you how to test that circuit without disconnecting anything.

3 Reasons to Choose OEM Documentation Over Aftermarket

1. Accuracy: The torque specs, clearance measurements, and test pressures are verified by New Holland engineering. Aftermarket reprints often skip the safety warnings or transpose numbers.
2. Safety: The manual opens with a full-page warning about machine preset conditions – lockout, pinching hazards, hydraulic pressure bleed-down. That’s missing in most third-party versions.
3. Complete: 783 pages cover every system. The aftermarket “compressed” version I saw online had only 400 pages and left out the transmission and slew brake procedures. You need the full OEM print, especially on a machine that sees railroad service.

If you’re working on a WE150 Compact or a WE170C Railroad, don’t trust a generic manual that lumps all compact excavators together. The steering system on the railroad version has different pressure settings and a different control valve. The manual calls that out explicitly in the chassis section.

One more thing: the manual references the operator’s manual and parts catalogue. You should have both on hand, but the service manual is where the real work happens. I keep a copy on my tablet and a printed binder in the shop for the guys who want paper.

For a complete line of New Holland manuals, check the Sperry New Holland Model 31 33 36 Service Manual”>Sperry New Holland Model 31 33 36 Service Manual or the New Holland T7510-T7550 2013 Service Manual – Factory Specs”>New Holland T7510-T7550 2013 Service Manual – Factory Specs. For a larger compact tractor manual, see the New Holland T5.95, T5.105, T5.115 2013 Service Manual – 2173 Pages”>New Holland T5.95, T5.105, T5.115 2013 Service Manual – 2173 Pages. External reference: if you need basic theory on a Manual Transmission”>Manual Transmission or Manual Transmission”>Manual Transmission design, check Wikipedia – but the New Holland transmission is unique, and the manual covers it specifically.

What is the difference between the WE150 Compact and WE170 Compact manuals?

The service manual covers both models in one volume – the differences are noted inline. The WE170C Railroad version has unique steering and hydraulic settings for rail-guide applications.

Does the manual include torque values for hydraulic fittings?

Yes. The hydraulic section lists tightening torques for every O-ring face seal and flared fitting in lb-ft. Never guess on a high-pressure line – the manual gives the spec for each size. Without it you risk leaks or line failure under load.

Access the Factory Manual and put it on your bench. You’ll save time, you’ll avoid comebacks, and you’ll have the same information that the dealer techs use. New Holland built these machines to be serviced – the manual shows you exactly how.
