New Holland RG140.B, RG170.B, RG200.B 2005 Service Manual

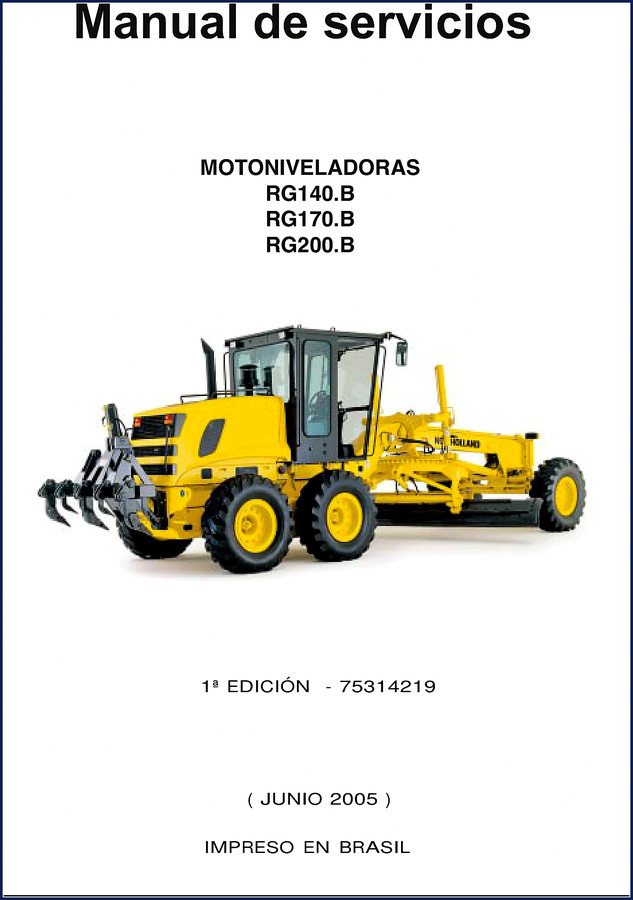

If you’re turning wrenches on a New Holland RG140.B, RG170.B, or RG200.B motor grader and you don’t have the factory service manual, you’re flying blind. I’ve seen guys waste an entire shift on a starting circuit because a reprint manual had the wrong wire colors. That doesn’t happen with this. The New Holland RG140.B, RG170.B, RG200.B 2005 Service Manual is the real deal—1121 pages of OEM data printed in June 2005. This is what the dealer techs use. Not a copy of a copy. Not a scan with missing sections.

Fluids and Lubricants: Factory Specs on Page 1002

Page 1002 of this manual starts with fluids and lubricants. It lists the acceptable diesel fuel specs—No. 2 diesel with specific viscosity and temperature ranges. The oil selection table tells you exactly what API classification and SAE viscosity to use for the ambient temperature. You get separate sections for each model: Motoniveladora RG140.B, RG170.B, and RG200.B. There’s even a metric conversion table so you can work in imperial units without punching numbers into your phone. This is the kind of data you need before you dump in the wrong oil and glaze a bearing.

Starter and Alternator Removal – What the Manual Covers

Starter removal and installation is covered with step-by-step text. The manual doesn’t assume you know which bolt comes off first. Same for the alternator—it covers both the 45A unit on the RG140 (Cummins B) and the 70A unit on the RG170 and RG200 (Cummins C). Each situation gets its own removal and installation instructions. You also get the alternator disassembly procedure on later pages, including brush inspection, rotor and stator testing, capacitor check, rectifier bridge verification, and bearing replacement. Torque specs for the alternator mounting bolts are listed. You won’t find that level of detail in a generic manual.

Transmission Control Unit (TCU) Diagnostics

This manual dedicates a major section to the transmission control system. It includes the theory of operation for clutch actuation, gear selection, and hydraulic system operation. The TCU section covers connector pinouts—J1, J2, J3, J4, J6—with each pin’s function. You get solenoid voltage requirements, solenoid valve operation, and an eight-forward, four-reverse gear sequence. There’s a suction leak test procedure and a troubleshooting guide for transmission malfunctions. Calibration instructions for the eight-speed transmission are included. If the grader won’t move or shifts hard, this section will save you hours of guesswork. Page 6002 holds the transmission specifications. The TCU functions are similar to a Manual Transmission controller but with additional hydraulic control.

3 Reasons to Trust OEM Documentation Over Aftermarket

First, this is a first edition printed by New Holland in 2005. It hasn’t been filtered through a third-party publisher that might delete pages or compress images.

Second, the wiring diagrams are exact. Aftermarket manuals love to redraw schematics and often swap pin locations. Follow this manual’s diagram and you’ll trace a charging fault in minutes.

Third, the torque specs come straight from New Holland engineering. I’ve seen fasteners fail because a parts website listed the wrong ft-lb value. This manual’s standard torque specifications on page 1001 cover bolt grades and tightening sequences. That’s the difference between a joint that stays tight and an oil leak you chase for weeks.

Torque Specs: When 10 ft-lb Makes the Difference

Standard torque specifications are on page 1001. But this manual also includes component-specific torques throughout. For example, the alternator mounting bolts, transmission bolts, and cylinder head bolts (if covered) have their own values. Using the wrong torque on a transmission solenoid mounting bolt can crack the valve body. This manual tells you the exact values. Pair it with a calibrated torque wrench and you’re set.

For older models, the Sperry New Holland Model 31 33 36 Service Manual covers older grader machines. For newer tractors, the New Holland T7510-T7550 2013 Service Manual – Factory Specs is available. And the New Holland T5.95, T5.105, T5.115 2013 Service Manual – 2173 Pages rounds out the heavy equipment coverage.

Frequently Asked Questions

Does this manual cover all three motor grader models?

Yes. The manual has separate sections for the RG140.B, RG170.B, and RG200.B, including specific lubricant specs and alternator configurations.

Are the wiring diagrams accurate for the alternator and transmission?

Absolutely. The diagrams are reproduced from New Holland’s own system. They include connector pinouts for the TCU (J1-J6), wire colors, and component locations. Aftermarket manuals often omit the pin numbers or show generic layouts that don’t match the Cummins B or C engines. With this manual, you can trace a charging system fault or solenoid issue without guessing. The alternator section even includes internal testing procedures for the rotor, stator, and rectifier bridge. That level of detail is what makes this worth the price. Understanding the solenoid valve logic is critical for diagnosing a Manual Transmission shift issue.

What language is the manual in?

Spanish and Portuguese. But the diagrams and specs are universal. You don’t need to read the text to follow torque tables and wiring.

Does it include torque specifications for major fasteners?

Yes. Page 1001 has the standard torque table for bolt grades. Each component section also lists specific torque values, like alternator mounting bolts and transmission solenoid bolts. Never assume a generic value.

This is the book that belongs on your bench if you own or service a New Holland grader. Stop chasing bad information. Get the OEM data from 2005 and work with confidence. Access the Factory Manual and get back to turning bolts.
