New Holland Kobelco SK210LC-9 2017 Workshop Manual

If you’ve ever cracked open a knock-off aftermarket manual for a hydraulic excavator, you know what I’m talking about: missing torque values, wiring diagrams that look like a toddler drew them, and specs that don’t match anything on the machine. That’s not what you get here. The New Holland Kobelco SK210LC-9 2017 Workshop Manual is the exact same 1610-page document that rolls off Kobelco’s press — the one factory techs use. I’ve torqued head bolts on enough IH engines to know that guessing a spec costs you parts and time. This manual gives you the real numbers, the real procedures, and the real safety warnings.

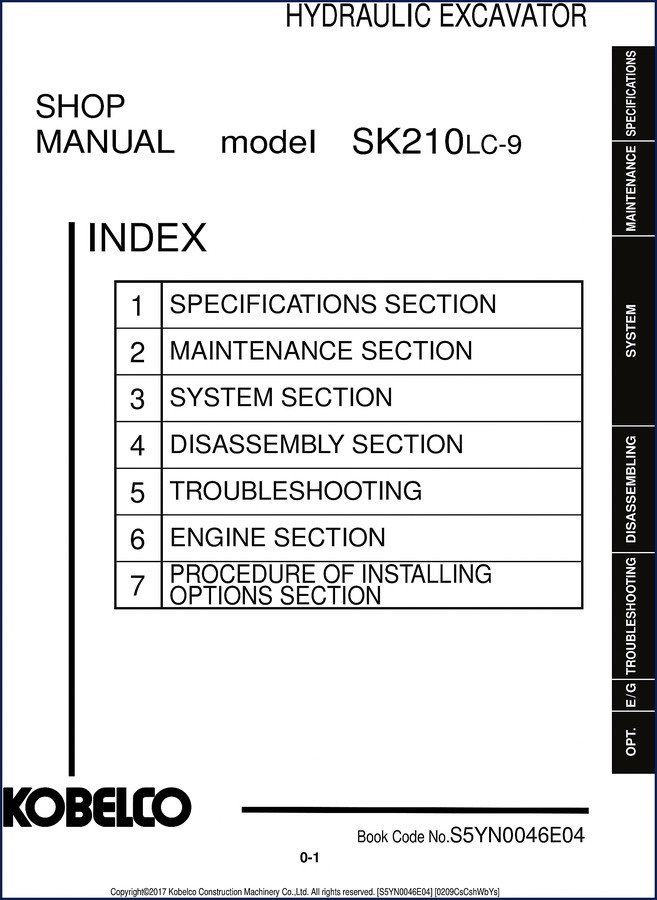

Page 1 opens with the model identification and a full index. Right after that, page 2 slaps you with 15 pages of safety information — DANGER, WARNING, CAUTION — because if you’ve never worked on a 21-ton excavator, a hydraulic-line failure at 4,500 PSI will kill you or put you in a wheelchair. The manual spells out every hazard. Good.

SPECIFICATIONS AND STANDARD TEST: The Numbers That Matter

The first section after the index is SPECIFICATIONS. You get engine ratings, hydraulic pump flow rates, swing motor displacement, track dimensions — all in imperial units (pounds, gallons, inches). For example, the engine section lists oil capacity, coolant capacity, and valve clearance specs. Then the STANDARD AND TEST section walks you through performance checks: cylinder drift rates, pressure test ports, and relief valve settings. If you’re rebuilding a regulator or swapping a control valve, this is where you start. The manual doesn’t assume you know which port is which; it gives you pin numbers and pressure ranges.

MECHATRO CONTROL SYSTEM: Controller Adjustments and Self-Diagnosis

This SK210LC-9 uses a Mechatro control system that ties the hydraulic pumps, the engine controller, and the multidisplay into one network. The HYDRAULIC CONTROL subsection covers pump-regulator logic and solenoid valve duty cycles. The MULTIDISPLAY CONTROL subsection explains how to read fault codes on the cab screen. There’s a full SELF DIAGNOSIS section with step-by-step tests for each sensor and actuator. SERVICE DIAGNOSIS goes deeper — you’ll find voltage checks at the controller pins and gauge cluster pins. TROUBLE HISTORY logs past error codes so you can spot intermittent failures. If the machine throws a code, you don’t have to wonder. The manual tells you exactly which pin to back-probe and what value to expect.

HYDRAULIC SYSTEM and COMPONENTS: Valve, Pump, Motor

The HYDRAULIC SYSTEM section is 200+ pages of pure meat. It covers the main pump, the regulator, the control valve, the swing motor, and the travel motor. Every component gets a disassembly sequence, a parts list, and torque specs for bolts and plugs. The CONTROL VALVE chapter shows the spool layout, the relief valve settings, and the O-ring sizes. The SWING MOTOR section includes holding-brake check procedures. The TRAVEL MOTOR section has the planetary gear reduction specs. This is where aftermarket manuals fall apart — they either skip the valve body cross-section details or copy the wrong one. Kobelco’s original is precise.

ELECTRICAL SYSTEM: Wiring and Troubleshooting by Error Codes

The ELECTRICAL SYSTEM section is a full wiring diagram book — harness routing, connector views, ground points, and fuse boxes. Every pin on the controller is identified. The TROUBLESHOOTING BY ERROR CODES section (near page 1200) lists every fault code from E01 to E99, with symptoms, likely causes, and corrective actions. TROUBLESHOOTING BY TROUBLE groups issues by symptom: engine won’t crank, boom drifts, slow travel. You don’t trace a dead wire blind; the manual gives you resistance checks and voltage drops. If you’re dealing with a short in the cab harness, you need these diagrams. Don’t trust a PDF scraper that merged three years together — this 2017 document is specific to the SK210LC-9.

ENGINE SECTION: Disassembly and Torque Specs

The ENGINE section covers the diesel power plant used in this model — most likely a Tier 4 compliant engine. You get the cylinder head bolt tightening sequence, main bearing cap torque, injection timing marks, and valve clearance adjustment. The manual also includes the cooling system, the turbocharger, and the high-pressure common rail fuel system. If you’re pulling the head on a 6-ton machine, use the factory values. A mis-torqued head bolt on a diesel that runs 2500 hours a year will blow the gasket inside a week. The manual spells out the angle torque steps in degrees — not ambiguous “tighten snug” garbage.

Who This Manual Serves

This is for the shop owner who has a SK210LC-9 sitting in the yard with a dead swing brake. It’s for the mobile mechanic who drives out to a ranch and needs to diagnose a travel-motor leak on-site. It’s for the rental-fleet maintenance guy who has to rebuild a pump on a machine with 12,000 hours. Beginners? You can use it if you read every warning twice and have a proper set of tools — but this is not a “how to change the oil” leaflet. It’s a 1610-page factory shop manual. You respect the binder’s weight. If you’re replacing a valve spool or chasing an electrical gremlin, you need the real print.

Source Validity: OEM vs. Aftermarket

You want the original factory document because Kobelco Construction Machinery Co., Ltd. wrote it. The copyright date is 2017, book code S5YN0046E04. There’s no watermark, no missing pages, no blurred schematics — it’s a direct scan from the official binder. The Manual Transmission Manual Transmission you find on generic sites might look similar, but the torque tables and hydraulic pressures are often copied from an earlier model year. Don’t risk a 5-figure repair bill on bad data. This manual also complements related models such as the New Holland Kobelco SK60 2017 Workshop Manual – 779 Pages of Factory Specs for smaller machines, the New Holland Kobelco SK330LC-6E, SK330NLC-6E, SK330-6E 2003 Workshop Manual for the larger series, and the KOBELCO Hydraulic Excavator SK200/SK210 Shop Manual for older variants. If you need a Manual Transmission Manual Transmission repair reference, that’s a different document — but for the hydrostatic drive system, this is your only source.

Does this manual include the entire engine rebuild procedure?

Yes. The ENGINE section covers cylinder head, block, pistons, and injection system. Torque values and sequences are listed.

What about the control valve — does it show the O-ring and seal sizes?

The CONTROL VALVE chapter in the COMPONENTS SYSTEM section includes part numbers for all seals, O-rings, and backup rings. It also gives the disassembly order for the main spool, PPC valves, and relief valves. You’ll find crossover pressures and adjustment specs for each valve section. If you’re resealing a leaky control valve on an SK210LC-9, this is the reference that keeps you from ordering the wrong kit. The manual also covers the regulator and the pump in similar detail — complete with cross-sections and clearance limits.

Access the Factory Manual and stop wasting billable hours on bad information. 1610 pages. 2017 specifications. OEM diagrams. Your toolbox needs this.
