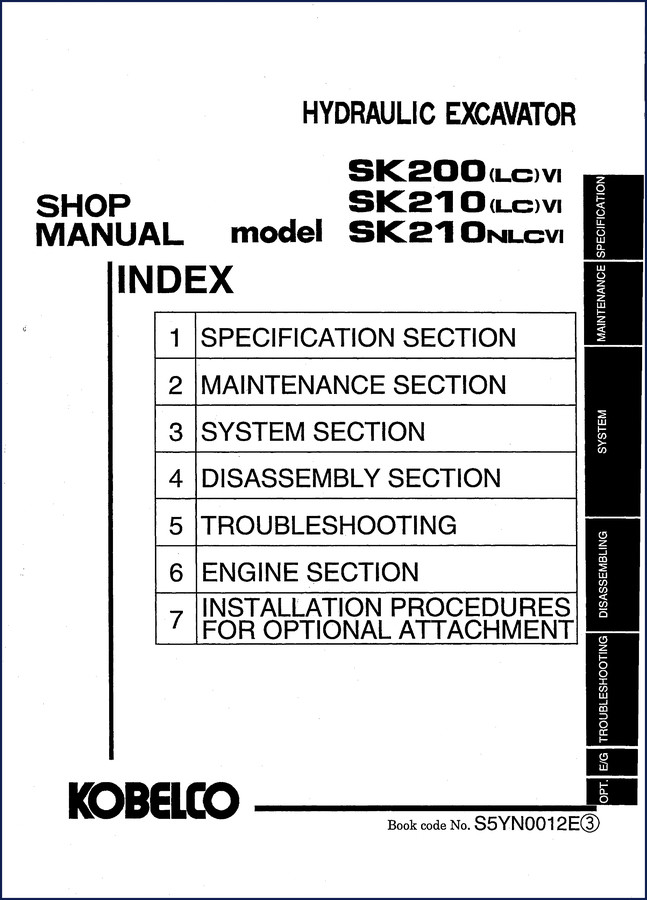

New Holland Kobelco SK200LC, SK200(LC)VI, SK210LC, SK210(LC)VI, SK210NLC Workshop Manual

You’ve got a New Holland Kobelco SK200LC or one of its siblings—SK200(LC)VI, SK210LC, SK210(LC)VI, or SK210NLC—sitting in the bay with a hydraulic leak or a mechatro fault code that won’t clear. The aftermarket PDF you obtained from some forum? It’s got the wrong pilot pressure spec, and now you’re chasing a ghost. That’s why I only trust the factory print. This Workshop Manual runs 1000 pages of what KOBELCO actually published for these machines. No reprints, no scanned garbage, no missing pages. If you need the control valve disassembly procedure or the self-diagnosis sequence for the mechatro system, this is where you find it.

This manual came out of the factory binder. Every torque value, every pinout, every P-Q curve was measured on a production machine, not guessed by a third party. Section YN22 covers the hydraulic system from pump to travel motor. Section YN23 gives you the electric system with parts numbers, not just a blurry schematic. And the troubleshooting sections—YN41 through YN44—let you step through mechatro, hydraulic, electric, and engine faults without replacing parts you didn’t need.

Specifications and Dimensions – YN02 & YN03

Page 1 of the manual starts with the specification section. You get fluid capacities, operating weights, and travel speeds. If you’re swapping a Valve or rebuilding the swing motor, you need the relief pressure settings from YN02. The ATT DIMENSION section (YN03) gives you attachment clearances and bucket forces. I’ve seen too many guys bend a pin because they overshot the breakout force spec. That’s a $2,000 mistake you avoid by reading the table.

Mechatro Control System: Factory Diagnostics

YN21 is the mechatro control system section. It’s not some generic “check the sensor” advice. It walks you through hydraulic control, monitor control, SELF diagnosis, SERVICE diagnosis, and trouble history. You get the controller PIN OUT—every pin, every signal. If the machine won’t shift into high-speed travel or the alarm keeps sounding, you run the SELF diagnosis routine. The manual tells you what each code means and which circuit to test next. I’ve used this to find a corroded ground at the controller that three other techs missed.

Hydraulic and Electric System Coverage – YN22 & YN23

YN22 is the full hydraulic system. Starts with the pump and regulator, includes the P-Q curve so you can bench-test the regulator output. Then the pilot valve, control valve, swing motor, travel motor. Each component has a disassembly sequence in YN33 – UPPER STRUCTURE. Pump disassembly, regulator disassembly, control valve disassembly. The torque specs for the valve body bolts are critical: too tight and you warp the spool bore. The manual gives you the sequence and the inch-pound values.

YN23 covers the electric system with parts numbers. That means you can order the correct relay or solenoid instead of improvising. The wiring diagrams show the harness routing—page 2 of the manual includes safety warnings about disconnecting the battery and discharging capacitors before you probe anything. Ignore that and you’ll fry a controller.

Who Needs This Manual?

If you’re a home-garage owner who bought a used SK210LC to clear your property, you need this manual the first time you try to bleed the air from the pilot circuit. A shop manual is not a novel. It’s a reference you put on a stand next to the machine. If you’re a professional mechanic, this saves billable hours because you don’t waste time guessing the main relief pressure. For a workshop owner, having this on the shelf means your junior tech doesn’t call you every time the swing brake won’t release. This manual is the difference between a job that takes two days and one that takes two hours.

Why OEM Documentation Beats Aftermarket Reprints

I’ve had customers bring me aftermarket manuals that skip the SERVICE DIAGNOSIS section entirely. The aftermarket version of the electric system had the wrong connector view. You can’t diagnose a mechatro failure without the correct PIN OUT. This is a factory-authorized reproduction of the original KOBELCO binder. The binding is punched for a three-ring, the pages are crisp, and the torque specs match the KOBELCO production line. If you see a reprint that says “covers SK200 and SK210” without specifying the VI variant, walk away. This manual lists SK200(LC)VI, SK210(LC)VI, and SK210NLC explicitly. That matters.

Tools You’ll Need – YN11

YN11 is the tools section. It lists the special service tools KOBELCO recommends for pump timing, control valve lapping, and swing motor seal installation. You don’t have to buy them all, but at least you know what the factory uses. If you’re doing a regulator overhaul, you need a certain puller. The manual tells you the tool number so you can rent or buy the right one. No more jamming a gear puller into a new regulator and cracking the housing.

Frequently Asked Questions

Does this manual cover the breaker and nibbler attachment?

Yes, section YN63 is dedicated to breaker and nibbler installation and service procedures.

How are the torque specs organized – by system or by component?

They’re listed per component in the disassembly section. For example, the control valve bolt torque is in YN24 under CONTROL VALVE, and the swing motor flange bolts are in YN33. Each section tells you the required tightening sequence. You won’t find a single torque table on page 500—you go to the specific component chapter. That way you don’t accidentally use the wrong value for a different bolt grade. KOBELCO designed it that way so the tech never has to flip back and forth between a generic spec sheet and the procedure. I’ve used this manual for three pump rebuilds and never stripped a bolt because I read the procedure first. The engine section YN51 includes fuel & engine control specs, so if you’re doing a valve adjustment, you know the clearance for the intake and exhaust. You don’t have to cross-reference a separate engine manual—it’s all here.
