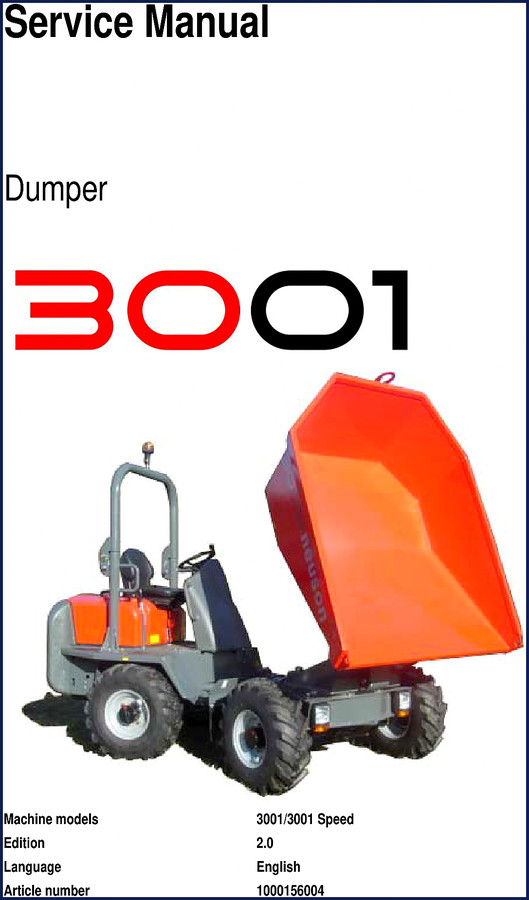

Neuson Baumaschinen 3001, 3001 Speed 2008 Service Manual

If you have ever tried to rebuild a dumper using a reprinted manual that leaves out the serial number splits, you know the waste of time I am talking about. The Neuson Baumaschinen 3001, 3001 Speed 2008 Service Manual is the original factory document—216 pages of specs that match the machine on your shop floor. Published in 2008 by Neuson Baumaschinen GmbH (Linz-Leonding, Austria), this is the same binder that dealer techs use. No third-party scans, no missing pages. You get the exact part numbers, torque values, and wiring diagrams that came from the factory.

Page 2-6 lists the general tightening torques. Use them. Do not guess.

Engine Overhaul: 3TNV88-KNSV Coverage

Chapter 4 runs from page 4-1 through page 4-24 and covers both the 3TNV88-KNSV and the later 3TNV88-BKNSV (from serial AE310242D). You get fuel system schematics for up to AB and starting AC, injection nozzle checks, compression testing, and coolant thermostat diagnostics. The manual also includes the automatic revs setting option for Tier 3A machines. If you are pulling a head on one of these, you’ll find the valve clearance specs and clutch adjustments. Pay attention to the serial number splits—using the wrong fuel system diagram will cost you time.

What Torque Specs Are Listed on Page 2-6?

Every bolt on this machine has a factory torque. The general tightening torques table on page 2-6 covers standard metric fasteners. But the manual also includes specific torques for the axles (chapter 6, page 6-2), the brake circuits (chapter 7), and the hydraulic motor mounts (chapter 5). If you are tightening wheel lug nuts, check page 3-28 for the changing wheels procedure. Do not rely on memory—factory torque specs change with hardware grade. This manual gives you the numbers in Newton-meters; keep a conversion chart handy if your torque wrench reads in ft-lbs.

Hydraulic System: Variable Displacement Pump A10VG45DA

Chapter 5 dives into the variable displacement pump A10VG45DA and the A6VM80EZ hydraulic motor. Pages 5-1 through 5-13 cover test instructions, adjustments, and towing/transporting procedures. You also get the travelling drive overviews split by serial number (up to AB and starting AC). The hydraulic schematics in chapter 9—dumping the skip, swivelling the skip—are essential when you have a weak dump or a slow steer. Before you start swapping valves, pull up the diagram for your machine’s serial range. The manual labels every port and pressure test point.

3 Reasons to Trust Factory Documentation

First, the wiring diagrams in chapter 10 are specific to your machine’s main harness. You get both A3 and A4 layouts with legends for harnesses 1000115009 (up to AB) and 1000173558 (starting AC). Second, the maintenance plan (chapter 3) lists service intervals by hours and includes fluid capacities, filter part numbers, and lube points. Third, the manual includes the original copyright and disclaimer pages—no one has redacted or simplified the safety warnings. You get the full “Identification of warnings and dangers” from page 1-2.

Get the Right Wiring Diagram for Your Serial Number Range

If you are chasing an electrical gremlin, do not use the wrong diagram. Chapter 10 has separate sections for up to AB and starting AC. The manual even includes a separate wiring diagram for the A3 page size. Check the legend on page 10-7, then find your harness. The manual also covers the battery master switch (page 1-12) and the control stand overview (page 1-8). For the front skip maintenance prop and centre pivot prop, see pages 1-10 and 1-11. Everything is indexed.

Who Needs This Manual?

If you own a Neuson 3001 or 3001 Speed dumper and do your own repairs, this manual saves you from guessing. The DIY mechanic will appreciate the step-by-step procedures for changing wheels, bleeding brakes, and adjusting engine revs. The professional tech will use it for the wiring harness pinouts and the variable displacement pump adjustment. Shop owners: hand this to your junior tech before they touch a brake circuit. It keeps liability off your desk.

The manual also covers the articulated joint (chapter 6) and the transfer gearbox. You get the semiaxles and wheel hub torques. If you are swapping a differential, page 6-23 gives the procedure up to AB. And if you have a later machine, the manual includes the updates from AE310242D.

For related equipment, check the Neuson 2503-3703 Compact Excavators Service Manual and the Neuson 2503-3703 Compact Excavator Service Manual. The Neuson Baumaschinen 6003 Service Manual 2004 – Section: Maintenance Fluids And L also covers similar powertrains. For general theory on the drivetrain, see Manual Transmission and Vehicle Speed Sensor.

Does this manual cover both the 3001 and the 3001 Speed?

Yes.

What serial number ranges are covered in this manual?

The manual is split into several serial number ranges: up to AB27168D, starting AC, up to AD310200, and from AE310242D. Each chapter notes which version applies. For example, the fuel system has separate diagrams for up to AB and starting AC. The engine section includes the 3TNV88-BKNSV from AE310242D. Always verify your machine’s serial number before following a procedure.

Stop wasting time on aftermarket copies. Access the Factory Manual and get the specs that match your machine’s build date.
