Mitsubishi F4A33, W4A32, W4A33 Service Manual – Factory Transaxle Rebuild Data

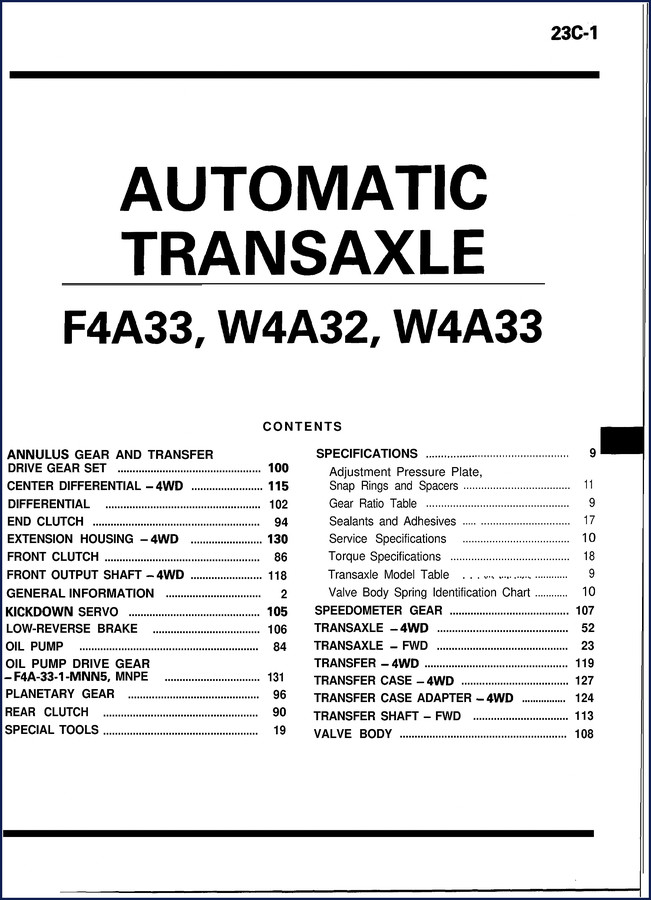

If you are staring at a pile of clutch packs, a valve body, and a torque converter that came off your transaxle bench, you need this Mitsubishi F4A33, W4A32, W4A33 Service Manual open on the screen beside you. Not a third-party summary, not a forum post. The factory book. Every DIYer who has fought an automatic transaxle knows the pain: you pull the pan, find a snapped snap ring, and wonder if the spacer you need is the 1.5mm or the 1.6mm. This manual ends that guesswork with a full set of adjustment pressure plate, snap ring, and spacer tables starting on page 11.

Torque Specifications That Match the Line

On page 18 you get the exact inch-pound and foot-pound values for every bolt in the case. Bell housing bolts, valve body bolts, end clutch retainer – all listed in a table. I have seen too many re-builds fail because someone torqued a pump cover bolt to 80 in-lbs when it calls for 65. That leaks. This manual lets you set your wrench to factory spec every time. The OEM data also includes sealants and adhesives listed on page 17, so you know which thread locker to use on the solenoid bracket.

Valve Body Spring Identification Chart – Page 10

The valve body is the brain of the transaxle. Spring height, wire diameter, free length – they matter. Page 10 of the service manual gives you a Valve Body Spring Identification Chart that separates the accumulator springs from the shift valve springs. If you are swapping a valve body or replacing springs, you match the part to the chart. There is no “that looks about right” in a transaxle. The book also covers the kickdown servo (page 105) and the low-reverse brake (page 106), so you can trace hydraulic circuits without pulling the whole unit apart.

Special Tools List – What You Actually Need

Page 19 lists every special tool Mitsubishi used at the factory. Clutch spring compressor, oil pump puller, snap ring pliers with specific jaw geometry. If you do not own the tool, the manual tells you the number so you can buy or rent the correct one. No makeshift methods. You get the transaxle – FWD section (page 23) and the transaxle – 4WD section (page 52) with separate procedures because the internal layout differs. The center differential on 4WD models (page 115) has its own shim selection procedure that you cannot skip.

Who Needs This 132-Page Manual?

Home garage enthusiasts who have rebuilt a few transmissions but never touched a F4A33. Professional techs who want the factory oil pump clearance specs (page 84) and the planetary gear endplay procedure (page 96). Beginners who are willing to follow each step – the manual tells you to drain the ATF, remove the oil pan, and mark the filter before you even start disassembly. It also warns against using cloth gloves or shop towels inside the case (page 2, General Information). That is the kind of detail that keeps debris out of your valve body.

The manual covers both front-wheel drive and all-wheel drive variants: F4A33, W4A32, W4A33. You get the front clutch (page 86), rear clutch (page 90), and end clutch (page 94) with specific measured clearances. Every clutch pack has a thickness specification. If you re-use a worn plate, the shift quality drops. The spec sheet on page 9 gives the gear ratio table so you can verify the final drive matches your vehicle.

Source Validity – OEM Factory Print, Not Aftermarket

This is a direct scan of the Mitsubishi service manual. You are not getting a Haynes-style rewrite. The torque specs, spring dimensions, and snap ring thicknesses come from the engineering department, not a copy editor. I have seen aftermarket manuals list the wrong transfer case adapter torque (page 124) by 15 ft-lbs. That will strip the aluminum housing. This manual eliminates the liability. If you need the Mitsubishi Dodge Stealth R/T Turbo 3000GT VR4 GTO Service Manual for the engine side, or the Mitsubishi Eclipse Spyder 1996 Service Manual – Factory Specs & Wiring for body electrical, check those separate OEM docs. For the transaxle alone, this 132-page book is the one.

On page 131 you even get oil pump drive gear specs for the F4A-33-1 MNNS and MNPE variants. That is the level of detail that aftermarket reprints skip. The manual also includes the transfer shaft (page 113) and transfer case (page 119) with separate torque sequences. The only thing missing is a wiring diagram for the TCM, but that is in the Manual Transmission or the full vehicle manual. For everything else, you have the spec.

Frequently Asked Questions

Does this manual include the valve body bolt torque?

Yes, on page 18 under Torque Specifications. Valve body bolts are listed separately from case bolts.

Will this manual help me diagnose a no-shift condition on a W4A32?

If you follow the transaxle – 4WD section starting on page 52, you will see the disassembly order for the center differential and the transfer case. A no-shift often comes from a stuck kickdown servo or a low-reverse brake failure – both covered on pages 105 and 106 with inspection tolerances. The manual does not have a separate diagnostic flowchart table, but the assembly procedures include clearance checks that point you to the root cause. For example, if the rear clutch pack clearance is out of spec (page 90), the 2-4 band cannot engage properly and you lose third gear. The book tells you how to measure it with a feeler gauge – no special tool needed for that check.

Can I use this for a 1996 Mitsubishi Eclipse with the F4A33?

Yes. The F4A33 transaxle was used in Eclipse, Galant, and 3000GT models through the mid-90s. Check the Transaxle Model Table on page 9 to confirm your specific code (e.g., F4A33-1-MNNS).

What about the oil pump clearance?

Page 84. Measure the drive gear tip clearance and side clearance with a Plastigage. The spec is listed in the Service Specifications table on page 10.

You already have the tool set. Now get the data that stops the leaks and the comebacks. Access the Factory Manual for the Mitsubishi F4A33, W4A32, W4A33 Service Manual and keep it on your bench. I have torqued enough bolts to know that the right spec is cheaper than a second teardown.
