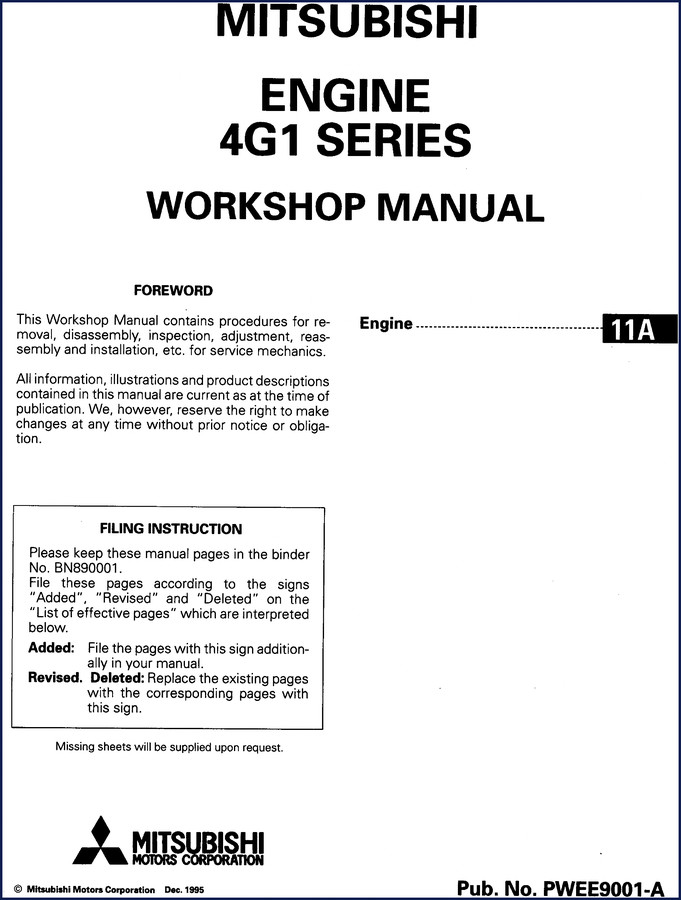

Mitsubishi 4G1 SERIES 1995 Workshop Manual

If you have been burned by aftermarket manuals that list torque values pulled from thin air, you know the feeling of a snapped head bolt. Mitsubishi 4G1 SERIES 1995 Workshop Manual is a factory original – 84 pages of verified specs and step-by-step removal, disassembly, inspection, adjustment, reassembly, and installation procedures. No third-party reinterpretation, no generic data. This is what Mitsubishi Motors Corporation released in December 1995, part number PWEE9001-A. You get the same information dealership techs used. That matters when a camshaft cap bolt needs 18 ft-lbs, not a guess.

DIYers and pros alike waste billable hours chasing down correct clearances. This manual eliminates that. Every service specification, torque specification, and sealant type comes from the factory. The TORQUE SPECIFICATIONS subsection alone saves you from stripping threads on the cylinder head or oil pump. Page 1 shows the filing instructions; page 2 explains the diagram symbols for lubrication and sealants. You get the whole system – from DRIVE BELT AND TIMING BELT through CYLINDER BLOCK – in order.

Torque Specifications and Sealant Data

Torque values for every threaded fastener in the 4G1 SERIES are listed in the SPECIFICATIONS section under TORQUE SPECIFICATIONS. You also get SEALANT types with application points. No guessing what threadlocker to use on the rocker shaft bolts – the manual marks it with a symbol. Working on the intake manifold? The tightening sequence and torque are right there. This is the difference between a joint that holds and a comeback job.

Cylinder Head and Valves: Factory Procedure

The CYLINDER HEAD AND VALVES section covers removal, disassembly, valve clearance adjustment, and reassembly. Valve seat angles, stem heights, spring free lengths – all spec’d. If your engine has jet valves, the JET VALVE (ENGINE WITH JET VALVES) subsection gives the specific service steps. You need a special tool? The SPECIAL TOOLS list tells you which Mitsubishi SST to use. Skip that and you risk bending a valve during installation.

Does This Manual Cover the Camshaft and Rocker Arms?

Yes. Two separate sections: ROCKER ARMS AND CAMSHAFT and ROCKER ARMS AND ROCKER SHAFT. These walk you through lobe wear inspection, rocker arm clearance, and camshaft end play. Torque specs for the camshaft bearing cap bolts are included – typical range is 13–15 ft-lbs depending on the casting. Pair this manual with a good set of feeler gauges and a beam-style torque wrench, and you can get the valvetrain right the first time.

3 Reasons to Choose OEM Documentation Over Aftermarket Copies

First, aftermarket manuals often miss critical updates. This is the official 1995 publication – no later model-year changes mixed in. Second, the diagrams show component positions exactly as installed, with numbered steps and symbols for non-reusable parts. Third, the torque specs are certified by the manufacturer. For background on how engine design standards evolved, check Automotive Industry Overview. For transmission-specific work, you want a dedicated transmission manual – see Mitsubishi R4AW2-1, R4AW2-3, R4AW2-7 1996 Workshop Manual or Mitsubishi Front Wheel Drive Automatic Transmission Repair Manual. The 4G1 SERIES engine often pairs with the R4AW2 family; having both manuals means matched torque specs for engine and bellhousing bolts.

Get the Right Tools Before You Start

Page 2 shows the symbols for grease, sealant, brake fluid, and ATF. You will need a torque wrench that can read inch-pounds for smaller bolts and foot-pounds for the cylinder head. The manual does not list inch-pounds – it gives Newton-meters and foot-pounds where applicable. Convert carefully. If you are working on a diesel variant of the 4G1, see Mitsubishi Engine 4D68 (E-W) Workshop Manual. For general transmission knowledge, Manual Transmission gives background on gear ratios, but for actual repairs, stick with the factory manuals.

This manual assumes you know how to read a torque specification chart and follow a 12-step disassembly sequence. It does not hold your hand. It gives you the data, the sequence numbers, and the safety warnings (like marking rocker arms after removal to avoid mixing). If you want a manual that makes you think, this is it.

FAQ

Is this manual for the entire vehicle or just the engine?

Only the engine – specifically the 4G1 SERIES. It does not cover transmission, suspension, or body.

What torque values are listed?

All torque specifications are in the TORQUE SPECIFICATIONS subsection within the GENERAL INFORMATION chapter. Values are given for cylinder head bolts, camshaft caps, main bearing caps, connecting rod bolts, crankshaft pulley bolt, intake manifold nuts, exhaust manifold bolts, and more. They are in Nm and sometimes ft-lbs. The manual also marks which parts require a specific sealant (e.g., front case gasket). If you are rebuilding a 4G1 from scratch, this single page (in the specifications section) is worth the price of the manual.

Does it cover the jet valve?

Yes – there is a dedicated subsection JET VALVE (ENGINE WITH JET VALVES). It shows removal, inspection of the valve seat, and installation with the specified torque for the jet valve holder.

Are special tools required?

The SPECIAL TOOLS list mentions Mitsubishi part numbers for things like the valve spring compressor and camshaft bearing cap alignment tool. You can often substitute aftermarket equivalents, but the manual tells you exactly what profile the tool must have. For example, the tool for the timing belt tensioner requires a specific pin diameter – that is in the manual.

You have the right manual for the job. Stop crawling through forums for torque specs that may be wrong. Access the Factory Manual – direct OEM documentation for your 4G1 SERIES engine, from the people who built it.
