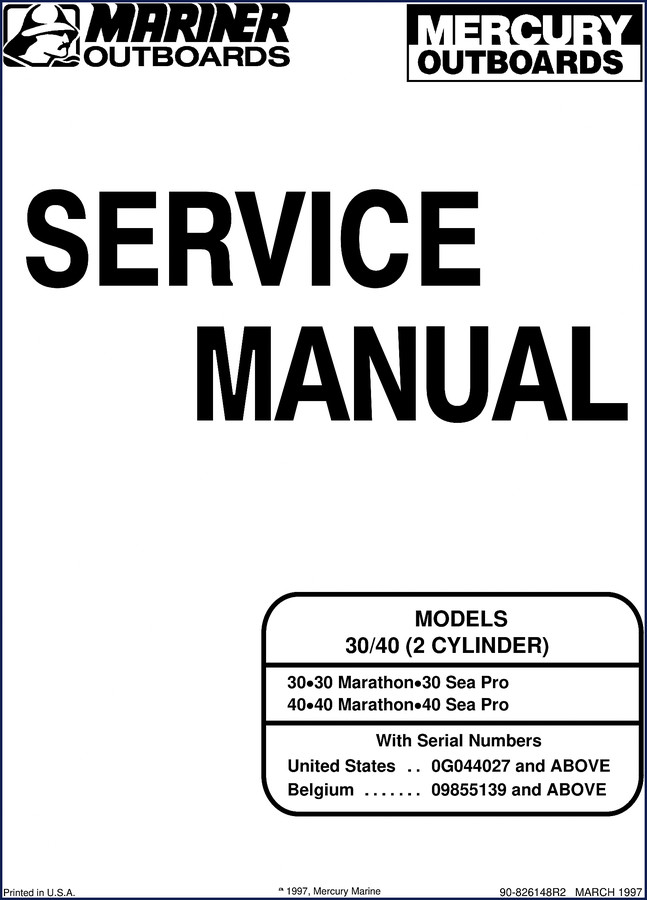

Mercury Marine 30 Marathon, 30 Sea Pro, 40 Marathon, 40 Sea Pro 1997 Service Manual

You’ve got a 2-cylinder Mercury outboard on the stand, and you’re staring at a carburetor that won’t idle, or a charging circuit that’s dead. The aftermarket CD you bought has torque values that don’t match the fastener size. I’ve been there. That’s why you need the Mercury Marine 30 Marathon, 30 Sea Pro, 40 Marathon, 40 Sea Pro 1997 Service Manual — the exact same binder the dealer techs used. This is a 333-page factory document, printed in March 1997 by Mercury Marine’s service department. No reprints, no third-party shortcuts. Just the real deal.

What This Manual Covers: Electrical, Fuel, Powerhead, and More

The table of contents starts with Section 1 – Important Information, which includes specifications, maintenance schedules, general info, and outboard installation. Page 1 lists the serial number ranges covered: United States OG044027 and above, Belgium 09855139 and above. If your engine falls outside those, you’re rolling the dice with a different manual. Section 2 is all Electrical — ignition, charging & starting system, timing and synchronizing, and full Wiring diagrams. Section 3 covers the Fuel system: fuel pump, carburetor, and oil injection. Then you get the powerhead (Section 4), mid-section with clamp brackets, power trim, manual tilt (Section 5), lower unit (Section 6), attachments and control linkage (Section 7), and finally the manual starter (Section 8). That’s every system you’ll touch on a 30 or 40 hp 2-cylinder.

Electrical System: Ignition, Charging, and Wiring Diagrams

Electrical failures are the number one reason these outboards get sidelined. Section 2A gives you the ignition system step by step — coil test, switch box checks, trigger resistance values. Section 2B covers the charging and starting system: stator output, rectifier tests, starter motor overhaul. Section 2D has the actual wiring diagrams — not a photocopy of a photocopy, but the same factory schematic that Mercury Marine released. If you’ve ever tried to trace a short using a generic diagram, you know the pain. This manual hands you the exact wire colors and connector pinouts. No guessing.

Fuel System: Carburetor and Oil Injection Tear-Down

Section 3 breaks down the fuel system into three sub-sections. Fuel pump rebuild (3A) with diaphragm orientation and check valve specs. Carburetor (3B) — float level, jet sizes, and the proper way to adjust the mixture screws without stripping the brass. Oil injection (3C) covers the pump and lines for models that came with it. I’ve seen guys ignore the oil injection bleed procedure and then wonder why the powerhead seized two hours later. Page 2 of the manual has a warning about that exact scenario — safety alerts are printed there, including the International HAZARD Symbol. Read them.

Torque Specs and Fluid Capacities: Stop Using Guesswork

Every critical fastener’s torque value is in Section 1A — cylinder head bolts, connecting rod nuts, flywheel nut, drive shaft nut. These are not suggestions; they’re factory tolerances. Use a calibrated torque wrench, not an impact gun. The manual also gives you the exact amounts and grades of gear lube, engine oil, and fuel mixture ratios. If you’re swapping a lower unit seal, you need the right preload on the bearing carrier. That specification is in Section 6. Don’t rely on a forum post.

Is This Manual Right for Your Engine? Check the Serial Number

This service manual was written for the 30 and 40 horsepower two-cylinder outboards in four model variations: 30 Marathon, 30 Sea Pro, 40 Marathon, and 40 Sea Pro. It only covers 1997 model year engines with the specified serial number range. If you have a 40hp four-stroke, you need a different book — see the Mercury Mariner 30/40 (4-Stroke) Service Manual. For earlier inline engines or the small portable models, try the Mercury Mariner 6 8 9.9 10 15 Outboard Service Manual. And if you’re working on a stern drive, the Mercury MerCruiser Service Manual Number 26 Marine Engines covers that line. This manual is strictly for the 1997 2-cylinder series.

3 Reasons to Trust Factory OEM Over Aftermarket

First, the torque values are verified by the engineers who designed the engine, not copied from a third-party database. Second, the wiring diagrams are drawn to scale with component locations — aftermarket manuals often omit the ground path details. Third, the safety warnings on page 2 are part of the legal notice from Mercury Marine; they include specific cautions about disconnecting battery cables before working on electrical terminals. That alone can save you from an arc flash. For your car or truck, you might need separate manuals for things like Manual Transmission or Seat Belt Pretensioners, but for this outboard, this is the only source you should trust.

FAQ

Does this manual include wiring diagrams for the 40 Sea Pro model?

Yes, Section 2D has complete wiring diagrams for both 30 and 40 hp models, including the Sea Pro and Marathon variants.

I have a 1996 engine. Can I use this manual?

Only if your serial number falls in the range listed on page 1. For 1996 engines with serial numbers below OG044027 (US) or 09855139 (Belgium), the specifications may differ — particularly the ignition timing and carburetor calibration. Mercury Marine released separate manuals for earlier years. Using the wrong wiring diagram could cause electrical shorts or incorrect timing adjustments. I recommend checking your engine’s serial number against the range printed in this manual before you start any repair. If it’s outside the range, find the correct year-specific factory manual.

This is the same 333-page service manual that dealer mechanics pulled from the shelf in 1997. Every exploded view, torque spec, and diagnostic procedure is original. Access the Factory Manual and keep it at your bench — it’ll save you more time than any YouTube video.
