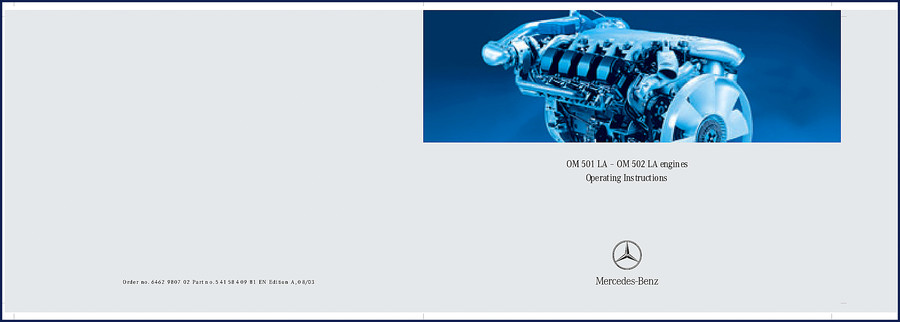

Mercedes-benz OM 501 LA, OM 502 LA Operators Manual

If you are wrenching on a Mercedes-benz OM 501 LA, OM 502 LA Operators Manual without the factory instructions, you are working blind. I have seen too many guys crack a block because they guessed the coolant type or skipped a pre-lube procedure. This Operators Manual runs 122 pages and covers everything from initial commissioning to valve clearance adjustments. It is not a generic aftermarket reprint – it comes from the OEM. You get the exact same paper that Mercedes-Benz ships with the engine.

Before you turn a single bolt, read the Safety section starting on page 37. It covers personnel requirements, emergency running programs, and what happens when you use non-OEM replacement parts. That is not CYA text – it is based on real failures.

OM 501 LA and OM 502 LA: What You Get in 122 Pages

The manual is split into nine chapters. At a Glance (page 11) gives you the engine layout with sensor locations, the engine plate, and the data card. Knowing where the charge air temperature sensor lives saves you an hour of hunting. The general remarks section explains type designation and the Telligent® engine system. I have seen techs misdiagnose a limp mode because they did not understand how Telligent® handles oil pressure faults. Page 52 covers exactly that.

Flame-start system* – that asterisk means optional equipment – is detailed on page 28. If your engine has it, use the manual to understand the glow cycle. Do not bypass it.

Commissioning Steps from Page 44

Operation chapter tells you how to prepare the engine, start it cold, and monitor charge current and oil pressure during the first run. Winter operation procedures are included – essential if you are in northern climates. The manual even tells you how to stop the engine properly to avoid turbo damage.

Telligent® Engine System: Diagnostics and Monitoring

The Telligent® system is not a black box. The manual shows you what each sensor reading means and how to interpret the status indicators. If you see a warning light, go to page 52 before guessing. I have watched guys replace perfectly good parts because they skipped the diagnostics sequence outlined here.

Maintenance Work Plans: Valve Clearance and Brake Checks

Maintenance is broken down into work plans. You get a checklist for engine leaks, oil and filter changes, valve clearance adjustment (specifically detailed), fuel filter replacement, and Poly-V-belt inspection. The Engine brake section (page 29) shows adjustment checks for the constantly-open throttle valves – critical for engine braking performance. Do not skip this if you haul heavy loads.

Coolant renewal and antifreeze concentration are also covered. Use the table in Technical Data to get the right mix ratio. Wrong coolant eats the seals.

3 Sections You Cannot Skip

Practical Advice includes a malfunction table with causes and solutions. Jump-start procedure is there too – but read the safety around it. Technical Data lists engine data, test values, adjustment values, and tightening torques. If you need to know the torque for a cylinder head bolt or fuel line connection, that is where you find it.

Related manuals: Mercedes-Benz BR 500 Engine Technical Manual and Mercedes-Benz SL Series Operator’s Manual provide additional context for other Mercedes platforms. For transmissions used with these engines, refer to Mercedes-Benz Sprinter Operator’s Manual.

The engine exhaust brake adjustment procedure is as precise as a Manual Transmission clutch job. Get it wrong and you lose stopping power. The same careful approach applies to the Manual Transmission linkage if you are swapping the unit.

Why Factory Specs Matter Over Aftermarket Copies

Third-party manuals often merge specs from multiple engine families. This one is specific to the OM 501 LA and OM 502 LA. The tightening torques on page 73 are from Mercedes-Benz, not a generic database. That difference can save you from pulling threads.

Does this manual cover the OM 502 LA engine?

Yes.

What torque values are listed in the Technical Data chapter?

Torque specs for cylinder head bolts, main bearing bolts, connecting rod bolts, fuel injector clamping, and exhaust manifold fasteners are included. Each value is listed with the tightening sequence where applicable. The manual also provides test values for valve clearance and adjustment ranges for the engine brake. Page 73 is where you start, but check the Index for specific fasteners.

You can trust these instructions because they were written by the engineers who built the engine. I have been turning wrenches for 28 years, and I still use the factory manual whenever I step outside my usual brands. Access the Factory Manual and keep it on your tablet or print it out. Either way, have it on the bench before you break the first bolt.
