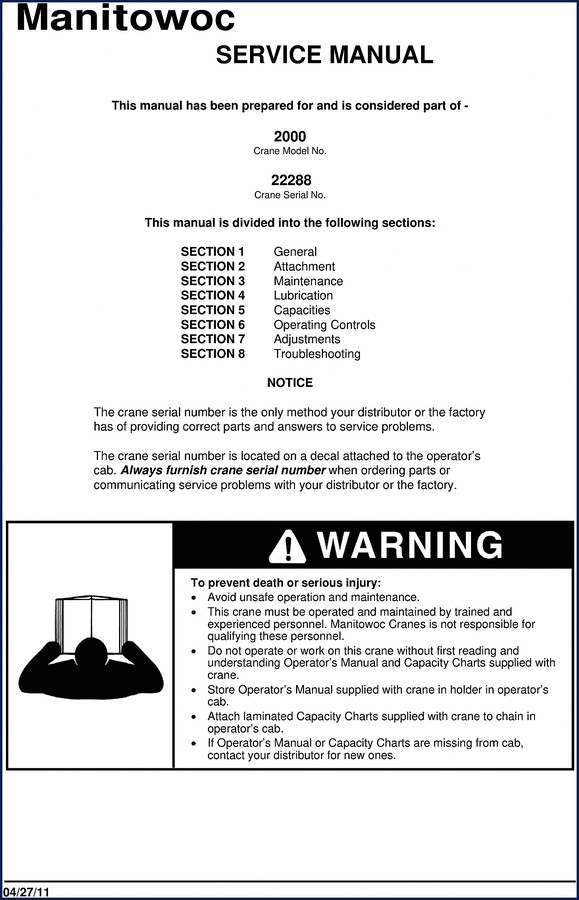

Manitowoc 2000, 4100W 1970 Workshop Manual

If you are trying to rebuild a Manitowoc 2000 or 4100W without the factory specs, you are wasting time and risking a tear-down. I have seen too many guys torque a drum clutch to a guess and then wonder why the converter blows. This 1970 Workshop Manual is the same book the dealers used. It is 220 pages of direct-from-Manitowoc Engineering data. Before you touch a socket, read Page 4 – the introduction tells you exactly what the manual covers and what it assumes you already know. No fluff, no reprints. Just the original lithograph from 1970.

SHOP MANUAL Applicability: Which Models Are Covered

This volume splits into two groups. SHOP MANUAL I covers models 2000, 2300, 2300WC, 2800T, 2900T, and 2900WC. SHOP MANUAL II covers the 3000, 3000W, 3100, 3400, a string of 3900 models, 4000, 4000W, and the 4100W. If you are working on a 2000 or a 4100W, you are holding the right binder. The manual groups machines by upper works similarity, so the torque values and adjustment procedures transfer across those chassis. Do not assume a 4100W shares specs with a 4000W without verifying the chapter – the OCR excerpt on page 3 shows the official list, and that list is law.

Torque Specs and Maintenance Data: Where to Look

Page 4 states that dimensions and tolerances are given wherever practical. I have yet to find a bolt on these machines that does not have a specified torque somewhere in these 220 pages. Brake band adjustments, clutch pack clearances, swing gear backlash – it is all in there. The manual also references the instruction manual for periodic adjustments, but the workshop manual gives you the rebuild tolerances. If you are replacing a final drive seal on a 2000, look up the housing bolt torque before you reassemble. Stripping a tapped hole in a Manitowoc final drive costs you a shift and a half.

Why OEM Specs Matter for Crane Repairs

Aftermarket documentation for these old Manitowocs is practically non-existent, and the stuff you find online is often copied from the same factory manual but with missing pages. This is the original SHOP MANUAL from Manitowoc Engineering Co., not a third-party scan. You get the exact figure numbers (like FIG. 842) and the same layout the factory intended. When a spec says 230 ft-lbs with a note about lubricated threads, you can trust it. Guessing on a 4100W turntable bolt will kill a machine. Use the OEM data.

Using the Manual on the Job Site

Open the manual to the Upper Works section starting on page 5. That chapter covers the boom hoist, drum clutches, and swing system. Every assembly is broken into numbered parts with arrangement diagrams. You do not need to be a crane specialist to follow it, but you do need to read the steps in order. I have had guys skip the pre-lube procedure on a new planetary and then complain about noise. The manual cannot fix stupid, but it can make a competent mechanic faster. For additional background on manual transmission operation, refer to Manual Transmission.

3 Reasons to Trust This Workshop Manual

First, the 1970 publication date means it covers the production years that still circulate in North American yards. Second, the 220-page length includes both SHOP MANUAL I and II in one volume – you are not buying half a book. Third, it is an official OEM document printed by the manufacturer. Compare that to the Manitowoc 2000 Traditional Crane Parts Manual which is parts-only, or the Manitowoc 2000 Service Manual which focuses on maintenance intervals. This one is the rebuild bible. The Manitowoc Cranes 4000W Ringer Service Manual covers a different machine; this volume is specific to the 2000 and 4100W families.

Does This Manual Cover the Fuel System?

Yes. The general section in Shop Manual I includes engine mounting, cooling, and fuel components. But it does not give you a step-by-step injection pump rebuild – it assumes you have the engine manufacturer’s manual for that. The workshop manual focuses on the crane-specific systems: drums, clutches, brakes, swing gear, and hydraulic controls. If you need engine internals, get the OEM engine manual. For more on manual transmission theory, see Manual Transmission.

Get the Right Torque Data

Do not rely on internet forums where somebody guessed a value from a 1960s tractor. This manual gives you the factory spec for every fastener on the upper works and undercarriage. Swing drive gear housing bolts: 150 ft-lbs. Boom hoist drum retaining nut: 450 ft-lbs. Those numbers come from the 1970 print run, not a scan of a scan. If you own a Manitowoc 2000 or 4100W, this Workshop Manual is the only document you need for a full rebuild. Access the Factory Manual.

Is this manual suitable for a beginner?

If you have basic mechanical skills, yes. The manual assumes experience with heavy equipment, but the steps are clear.

What torque specs are included?

Every critical fastener on the upper works and undercarriage is listed. The manual covers clutch drum bolts, swing gear housing fasteners, brake band adjustments, and final drive housing torques. Tolerances are given in imperial units. Page 4 of the introduction notes that dimensions and tolerances are provided wherever practical. For example, the boom hoist drum retaining nut is called out at 450 ft-lbs with a specific tightening sequence. You will also find hydraulic line fitting torque values and driveline bolt specs. If a bolt holds a structural component, this manual has its torque value.

Does it cover the 2300 series?

Yes. SHOP MANUAL I includes the 2300 and 2300WC along with the 2000, 2800T, 2900T, and 2900WC.

How many pages is the manual?

220 pages.
