Department Of The Army M544E 1993 Technical Manual

I’ve lost count of how many aftermarket ‘repair manuals’ I’ve thrown in the trash. They leave out torque values, use generic wiring diagrams, and skip half the steps. If you’re working on a Department Of The Army M544E 1993 Technical Manual, you’re dealing with a 10,000-pound capacity adverse terrain forklift. This is not a pickup truck. You need the real thing – the official Army TM 10-3930-659-20, 1142 pages of unit maintenance procedures. No shortcuts, no guesswork.

What the Manual Covers – 14 Chapters of Factory Data

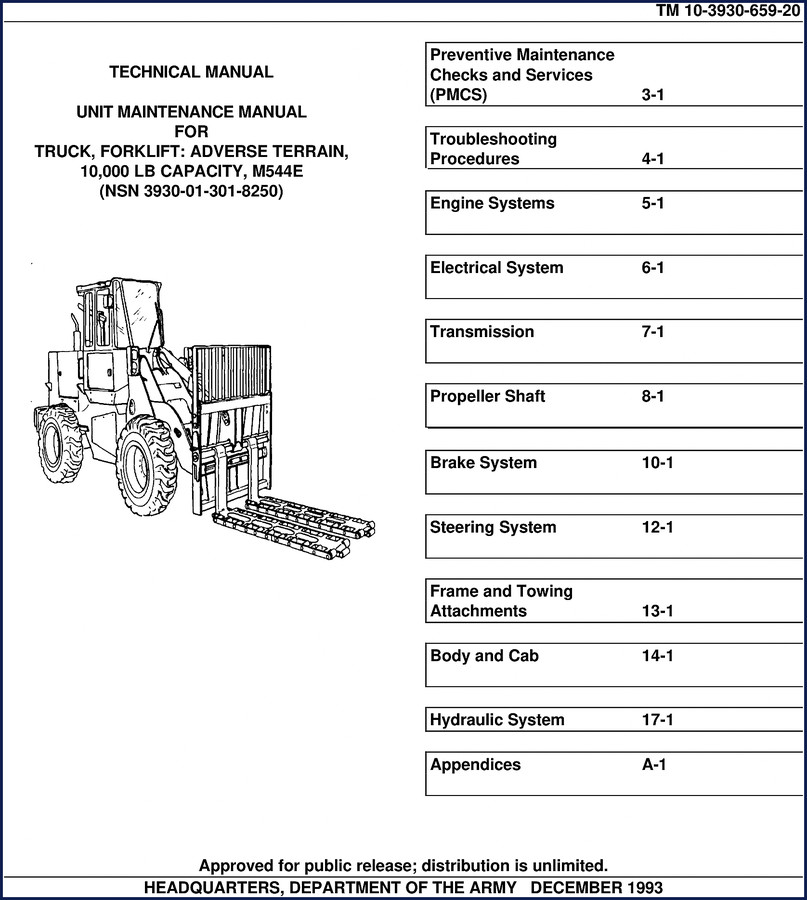

Page 1 lays out the entire scope. Preventive Maintenance Checks and Services (PMCS) in Chapter 3. Troubleshooting in Chapter 4. Then it gets into the meat: Engine Systems (Chapter 5), Electrical System (Chapter 6), Transmission (Chapter 7), Propeller Shaft (Chapter 8), Brake System (Chapter 10), Steering System (Chapter 12), Frame and Towing Attachments (Chapter 13), Body and Cab (Chapter 14), and Hydraulic System (Chapter 17). Appendices round out the back. Every chapter is broken into sections and numbered paragraphs, so you can find exactly what you need without flipping through vague indexes.

Chapter 5: Engine Systems – Factory Rebuild Specs

Engine work on a 10,000-lb forklift isn’t like swapping a long block in a half-ton. You need the correct ring end gaps, bearing clearances, and head bolt torque sequence. This manual gives you all of that in Chapter 5, with paragraphs from 5-1 through 5-38. Each step is written for a unit-level mechanic. Expect to see required tool lists and references to special tools. Aftermarket manuals often skip the torque specs for the injection pump or the flywheel. This one doesn’t.

Electrical System (Chapter 6) – Full Wiring Diagnosis

Chapter 6 runs 73 paragraphs long, from 6-1 to 6-73. That tells you the depth. It covers the battery, starter, alternator, gauges, and the entire harness. Check the warning on page 2 about battery safety – it’s not just filler. The manual includes step-by-step troubleshooting procedures for no-start conditions, charging system faults, and lighting problems. When you’re tracing a short in a military vehicle that’s been sitting for years, you need the factory wiring diagram, not a reprint from a third-party site.

Does This Manual Include Safety Warnings?

Page 2 has the carbon monoxide warning that could save your life. It lists symptoms, first aid, and the critical note that an NBC mask won’t protect you from exhaust gases. The battery warning on page 3 covers acid burns, explosive gases, and jewelry risks. These aren’t disclaimers lawyers wrote – they’re field-tested precautions from the Department of the Army. Ignore them at your own risk.

3 Reasons to Trust OEM Army Documentation

1. Original Government Publication. This is TM 10-3930-659-20, approved for public release. It was written by engineers who designed the M544E, not by a copy shop stitching together PDFs.
2. Every Spec Verified. Torque values, fluid capacities, and clearances come from Army test data. You won’t find a generic ‘tighten to spec’ – you’ll get foot-pounds and inch-pounds where they matter.
3. Consistent Structure. Each chapter follows the same format: description, troubleshooting, removal, installation, and testing. Once you learn the system, you can hop to any chapter and find what you need fast.

Get the Right Torque Data from the Source

Fasteners on this forklift see heavy loads – steering knuckles, axle bolts, engine mounts, transmission bell housing. The manual lists torque values right in the procedure paragraphs. For example, the engine section will tell you the exact sequence for head bolts. The brake section gives you the caliper bolt torque. No hunting through an appendix. That’s how a real shop manual works.

Who Needs This Manual – Real-World Use Case

You’re a DIY mechanic who just bought a surplus M544E for farm work or logging. Or you run a small equipment repair shop and a military collector brought one in. You have the machine in the bay, but you don’t have the TM. Without it, you’re guessing on the transmission adjustments, the hydraulic pressures, and the steering gear preload. That’s how you break something expensive. This manual eliminates the guesswork. It tells you what tools to have on hand, what to check first, and when to stop and call for help.

Related manuals: Department of the Army M544E 1993 Operators Manual covers daily operation and operator-level checks. For deeper theory on automotive systems, see TM 9-8000 Principles of Automotive Vehicles Manual. And if you work on other government equipment, Technical Manual: Water Purification Barges, Vol 9-4 might cross your bench.

External references: Understanding a Manual Transmission helps when overhauling the transmission in the M544E. And when choosing lubricants, checking Synthetic Oil Properties can guide you on modern alternatives to the original military oils.

Does this manual include wiring diagrams?

Yes, Chapter 6 covers the full electrical system with schematics and troubleshooting steps.

What kind of torque specs are provided?

All critical fasteners have OEM torque values specified in each relevant chapter. For example, the engine section includes cylinder head bolt torque and sequence. The manual is the official Army publication, so every spec is factory-correct. Aftermarket manuals often skip these or get them wrong. If you tighten a steering knuckle bolt to the wrong value, you risk failure. This manual eliminates that guesswork. You will find foot-pounds, inch-pounds, and degree markings where required. The torque sequence for the differential carrier is also spelled out. No hunting through a separate appendix – it’s right there in the procedure. That’s the difference between a real TM and a generic book.

Access the Factory Manual – this is the only copy you should trust on your workbench. Don’t waste time with reprints that miss half the pages. Get the official 1142-page Army TM and start your repair with the right data.
