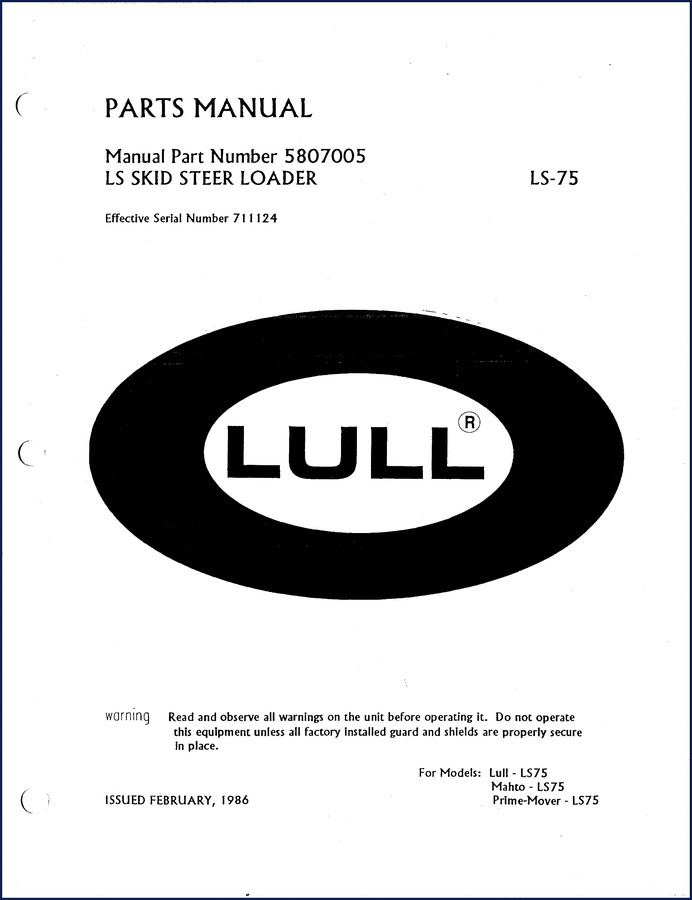

Lull LS75, Lull – LS75, Maxto – LS75, Prime-Mover – LS75 1986 Parts Catalog

If you’re trying to source a hydraulic fitting, a decal set, or a control lever for a Lull LS75, you don’t have time to guess part numbers. That’s a fast track to ordering the wrong component, tying up your machine for days, and lighting money on fire. This 1986 Parts Catalog is what the factory shipped to dealers. It’s the same 50‑page binder that sat on the parts counter at your local Lull dealer. Real part numbers, real exploded diagrams, real ordering instructions – no aftermarket translations, no guesswork.

50 Pages of Factory Parts Breakdown

Flipping through this catalog, you get the full parts listing for the Lull LS75, plus the Maxto – LS75 and Prime-Mover – LS75 variants. Each page typically covers one or two assemblies – the decal set, the seat belt assembly, the hydraulic control valve stack, you name it. The manual uses figure numbers (Figure 1 is the decal and parts assembly, starting on page 4) and item callouts that match the parts list. Every part has a factory part number, a description, and the quantity needed per machine. No fluff. No “call for price.” Just the data you need to place an order and get back to work. Page 3 lays out the parts ordering instructions verbatim – including the warning that you must supply model, serial number, and part number. Ignore that and the dealer will waste your time.

Parts Ordering Instructions – Read This First

The manual opens with a warning: “Read and observe all warnings on the unit before operating it.” That’s standard, but page 3 is where the real meat is. It tells you exactly how to order parts: supply the part number, quantity, model and serial numbers. The pictorial reference number? Don’t include it – it only adds confusion, says the manual. Your dealer carries many parts in stock, but if they’re not, he’ll order from the factory in Muscatine, Iowa. All prices are FOB Muscatine, shipping charges added. If you’re returning parts, forget it without prior authorization – the factory won’t accept unapproved returns. That saves you a headache right there. Follow these instructions and you won’t get that dreaded “back‑ordered” call.

Decal and Assembly: Figure 1 Breakdown

Figure 1 on page 4 shows the decal and parts assembly for the LS75. You’ll see callouts for warning decals, the seat belt decal, and the fastener seat belt assembly. Each decal has a part number – you can order replacements without having to match size and wording from a photo. The assembly drawing is not a glossy photo; it’s a clean factory line drawing with reference numbers. That’s what you want when you’re trying to figure out where a particular sticker goes after a repaint. The parts list next to the drawing gives the part number, description, and quantity. For example, the seat belt assembly is listed with its part number – you can cross‑reference it against the actual belt on your machine.

Field Modifications and Safety Compliance

Page 3 also includes a note on field modifications: “The regulations imposed by OSHA make it mandatory that any alterations to the ROPS/LOPS require recertification.” That’s not a suggestion – it’s legal. If you’re planning to weld reinforcements to the rollover protection structure, you’d better have that recertification paperwork. This manual won’t walk you through the modification, but it does tell you that the original parts diagram is the baseline. Use it to confirm you have the correct factory ROPS parts before you touch a torch.

Who Needs This Manual?

Home‑garage guys who bought a used LS75 at an auction? Absolutely. You’ll need to identify which bucket, hydraulic cylinder, or steering linkage you have. The exploded views let you match the part number without tearing the machine apart first. Same for the Maxto and Prime‑Mover badges – those are the same machine, just different nameplates. The catalog covers all three. If you’re a small shop that sometimes takes in Lull skid steers, this is the reference your parts guy should have on the counter. It saves the hour of hunting through online databases that may or may not be accurate. And if you’re a dealer technician? You already know why you’re here.

Factory Spec vs Aftermarket: Why This Matters

I’ve seen too many “universal” parts listings that claim to fit a Lull LS75 but use a generic drawing with no actual part numbers. That junk belongs in the trash. This is an original factory publication from 1986 – the same one Lull dealers used. The part numbers come from the same engineering release that built the machine. Aftermarket catalogs often re‑number parts or omit supersessions. This manual doesn’t. It’s the truth. If you’re ordering a part, you want the number that the Lull factory recognizes. Otherwise you’re playing roulette with your downtime.
