Liebherr R 954 C Technical Manual

If you’re working on a Liebherr R 954 C and relying on a generic PDF from some forum, you’re wasting time and risking a torn-down machine. I’ve seen too many guys guess on track tension and hydraulic pressures because the aftermarket book was wrong. This Technical Manual is the real thing – 20 pages of factory data straight out of Liebherr’s engineering department. No reprints, no third-party garbage. You get the same specs the dealer techs use.

Engine Output and Specs – Page 1 Data

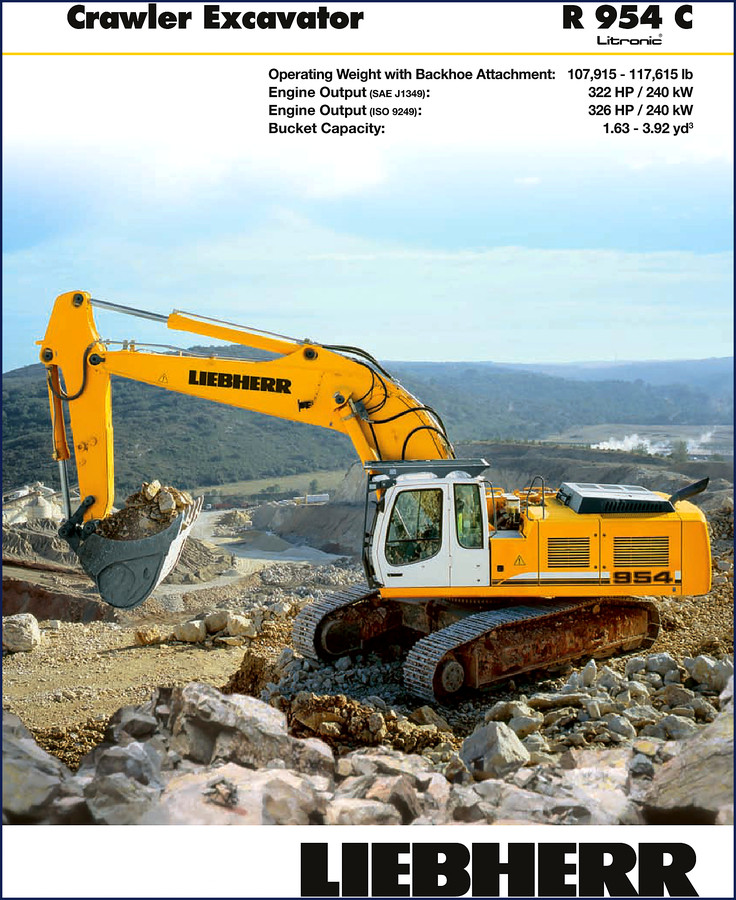

Open to page 1 and you’ll see the hard numbers. Operating weight with backhoe attachment: 107,915 to 117,615 lb. Engine output (SAE J1349) is 322 HP, (ISO 9249) 326 HP. Bucket capacity from 1.63 to 3.92 yd³. That’s not a range you guess at – you need the exact attachment combo to stay within safe load limits. The manual lays out the weight variations and what they mean for undercarriage wear. You’ll also find the engine model and emission tier (Tier 3) on that page.

Litronic System: Factory Diagnostics

Liebherr’s Litronic electronic control system manages the hydraulics and engine load. The manual describes how the system coordinates multiple functions without losing efficiency. If you’re chasing a lag or a pressure drop, the factory procedure tells you which sensors to test and what voltage ranges to expect. I’ve seen aftermarket diagrams skip the control logic – that’s how you end up replacing a pump that was fine. This 20-page document includes the control unit layout and pinout data. Pair it with the Liebherr R 9350 Technical Manual – Specs for Big Iron if you’re running a mixed fleet.

3 Systems the Manual Covers in Detail

The manual breaks down three critical systems. Performance: engine output curves and hydraulic flow rates. Reliability: structural weld inspection points and fastener torque sequences. Economy: fuel consumption mapping and attachment selection guidelines. Each section includes the factory tolerances – not the “close enough” numbers you find on a forum. For example, the hydraulic charge pressure spec is on page 2. Use that for setting relief valves. Don’t guess.

Why OEM Beats Aftermarket for the R 954 C

Aftermarket manuals for this class of machine often reuse data from older models. The R 954 C Litronic has specific electronic control algorithms and a Tier 3 compliant engine that changes how you set injector timing. Liebherr’s own documentation keeps you on the exact specifications. I’ve torqued my share of track bolts – if you’re off by 10 ft-lb on a 50-ton excavator, you get cracks. The manual doesn’t give you a range; it gives you the target. You also get the service point locations (centralized grease points, filter access) that save you an hour under the machine. For related data, check the Liebherr R 934 C Litronic Technical Manual – same architecture, smaller footprint.

Who This Manual Serves

If you own an R 954 C, work at a rental yard, or run a shop that supports heavy excavators, this PDF sits on your tablet. DIYers who do their own track adjustments and hydraulic repairs will find the 20-page format easy to print and take to the machine. Beginners need the safety warnings – the manual flags high-pressure hydraulic lines and proper blocking procedures. Pros will appreciate the spec tables for quick reference. It’s not a full service manual (you’d need the workshop manual for major teardowns), but for daily technical data and system overviews, this is the one. Also check LIEBHERR R 956 Crawler Excavator Technical Manual for the larger cousin.

Frequently Asked Questions

Does this manual include torque values for track bolts?

Yes, on page 2 you’ll find the torque spec for track bolts and final drive fasteners. It’s listed in ft-lb with the tightening sequence.

Will this manual help me diagnose an engine misfire on my R 954 C?

It gives the engine output specs and Litronic control logic, but it’s not a full engine repair manual. For misfire diagnostics you need the Liebherr engine workshop manual. This technical manual provides the baseline performance data you’ll compare against – for example, the fuel pressure range and injection timing. The aftermarket books often list generic values that don’t match the Tier 3 calibration. Using the factory numbers here prevents misdiagnosis. If you’re comfortable with multimeters and pressure gauges, the Litronic section on page 3 will walk you through sensor tests that isolate the ignition and fuel system issues. But if you need a complete step-by-step teardown of the powerhead, buy the engine service manual separately. This 20-page document is your quick-reference spec sheet and system overview – not a novel. For transmission-related questions, see the Manual Transmission documentation for your driveline type.

Bottom line: you don’t open a machine this size without the right numbers. The Liebherr R 954 C technical manual gives you those numbers. It’s 20 pages of dense, factory-verified data. No fluff, no reprints, no third-party copy. If you’re about to pull a pump or set a hydraulic pressure, pull this PDF up first. Save yourself a comebacks and a parts bill. Access the Factory Manual now and keep it on your shop tablet.
