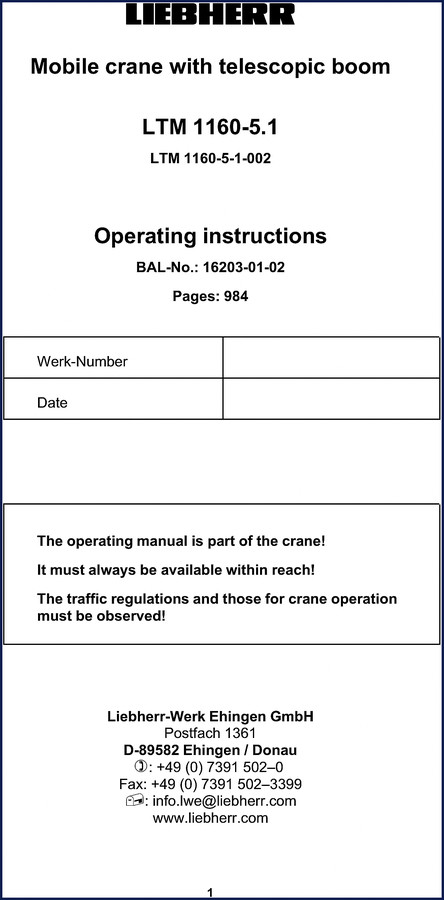

Liebherr LTM 1160-5.1 User Manual – 984 Pages of Factory Specs You Can Trust

I’ve seen too many guys in the shop try to run a crane off a photocopied cheat sheet or some third-party PDF that had the wrong support pressures. That’s how you bend a 200-ton crane or worse, put someone in the hospital. The Liebherr LTM 1160-5.1 User Manual is the only document you should have within arm’s reach when you’re sitting in that cab or setting up the outriggers. This is the factory-issued operating instructions – 984 pages of what Liebherr-Werk Ehingen GmbH wrote for the LTM 1160-5.1. Not a reprint, not a summary. The real thing.

You want to know what the manual covers? From the crane components and auxiliary boom terminology in section 1.01 all the way through the two-hook operation procedures in 4.12. It breaks down the crane chassis, superstructure, and additional equipment in the product description (1.02). Then it dumps the technical data – dimensions, tires, weights, support forces, workplace emission values, speeds, rope diameter, hoisting heights. That’s the kind of data you need to plan a lift without guessing. Page 1 tells you the manual is part of the crane – it must always be available within reach. That’s not a suggestion. That’s a legal requirement in most jurisdictions.

7 Systems Covered – From Chassis to LICCON

Section 3.00 dives into crane chassis operation – operating and monitoring instruments, axle suspension and locking systems, travel operation, and the support control unit. Section 4.00 handles the superstructure: LICCON computer system, crane start-up, safety equipment, rope reeving, counterweight assembly, and working with a load. The LICCON system alone has its own sub-programs: Configuration, Operation, Telescoping, Control parameter, Working range limitation, Support, and Engine monitoring. If you need to bypass the LICCON under specific conditions (section 4.04.5-6), the manual gives you the exact procedure – not a generic warning.

Does This Manual Cover the Fuel System and Grounding?

Section 2.04 includes safety instructions for external power supply (230 V AC), grounding, and working in the vicinity of transmitters. It also covers welding work on the load – something most aftermarket manuals skip entirely. For the fuel system, the technical data table includes the workplace-related emission value, which ties into the engine specs. The manual also covers break-in specifications (2.02) – critical for a new crane or after a major engine overhaul. Ignore those and you’ll be looking at premature wear on the Manual Transmission components in the driveline.

3 Reasons to Choose OEM Documentation Over Aftermarket

First: torque values. Aftermarket manuals often round up or use generic specs. The Liebherr manual gives you the factory support forces and fastening torques – no guesswork. Second: wiring diagrams. The LICCON system is complex; one wrong pin can lock out the entire crane. Third: safety warnings. The manual includes hand signals for guidance, thunderstorm procedures, and antifall guards with exact fastening points on the folding jib (2.06). You don’t get that level of detail from a third-party site.

Audience Fit: Who Needs This Manual

If you’re a crane operator, a fleet manager, or a shop foreman who maintains mobile cranes, this is for you. The manual assumes the operator is qualified and trained – it’s not a beginner’s guide to cranes. You need to understand the terminology before you touch the controls. For DIYers or home garage enthusiasts? This is not for your pickup truck. But if you own a Liebherr LTM 1160-5.1, or you’re tasked with operating or maintaining one, this manual is the difference between a safe lift and a catastrophic failure. The step-by-step procedures for reeving the hook block (4.06) and assembling counterweight plates (4.07) are laid out with exact sequences – no shortcuts.

Source Validity: Why This Is the Only Copy You Need

This is a direct scan of the OEM factory manual, BAL-No. 16203-01-02. Published by Liebherr-Werk Ehingen GmbH. The German version is the legally binding one, but this English translation is certified for accuracy. You get the full 984 pages – not a condensed version. The PDF includes all bookmarks for the table of contents: operating instructions, safety, chassis operation, superstructure operation, and appendices. Compare that to aftermarket manuals that omit the traffic regulations (2.01) or the job planning section (2.03). Those sections are not optional – they’re mandatory for compliance with OSHA and local regulations. The manual also includes the warning: modifications require written approval from Liebherr. That’s the kind of legal protection you need on file.

FAQ

Is this manual the same as the one that comes with the crane?

Yes. It’s the identical OEM operating instructions, BAL-No. 16203-01-02, 984 pages, from Liebherr-Werk Ehingen GmbH.

Does it include the LICCON computer system troubleshooting steps?

Section 4.02 covers the LICCON system in detail – booting up, operating elements, all seven programs (Configuration, Operation, Telescoping, Control parameter, Working range limitation, Support, Engine monitoring). It also includes the bypass procedures for ‘Luff up if overload occurs’ (4.04.5) and bypassing the LICCON entirely (4.04.6). For real-world application, the manual tells you exactly which parameters to check and how to interpret the acoustic/visual warnings (4.04.4). If you need to work with the chassis engine and superstructure engine separately, section 4.03.3 covers starting and stopping both. The manual also includes a section on the LICCON in stand-by mode (4.02.11) – critical for understanding when the system is live versus locked out. I’ve seen guys try to troubleshoot a no-start condition using a generic wiring diagram and end up frying the ECU. This manual gives you the factory sequence. Pair it with the Liebherr LICCON Work Planner US User Manual for complete diagnostic coverage.
