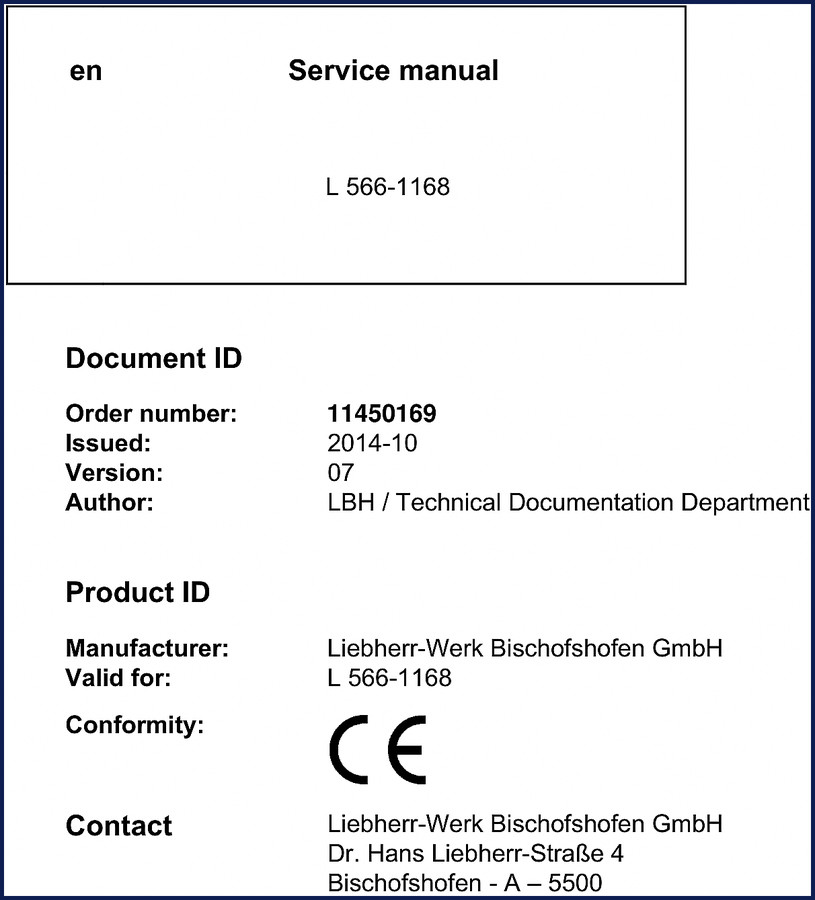

Liebherr L 566-1168 2014 Service Manual

If you’re wrenching on a Liebherr L 566-1168, you already know a mistake on a 50,000 lb machine costs real money – or worse, gets someone hurt. I’ve torqued enough bolts to know that the difference between a job done right and a job that comes back on a hook is whether you held the factory spec in your hand. This is the real thing: a 790-page Liebherr L 566-1168 2014 Service Manual from the OEM, not some aftermarket translation. It covers the full machine: engine, hydraulics, transmission, axles, electrical, and the 20 safety sub-sections that keep you alive.

Safety Instructions: 20 Subsections You Can’t Skip

Section 010.1 alone runs through 20 safety topics – from crushing injuries and burns to fires and explosions, working with hydro accumulators, welding on the machine, and driving on slopes. The manual doesn’t assume you’re a green apprentice: it assumes you’re a trained specialist who still needs to be reminded that a hydraulic hose failure at 3,000 psi is a deadly event. Each warning has a structured format – DANGER, WARNING, CAUTION – with specific measures to avoid the hazard. If you’ve ever seen a loader roll because someone bypassed the park brake interlock, you’ll read section 010.1.8 (Parking safely) twice.

Special Tools: What You’ll Need Before You Start

Before you pull a single bolt, the manual lists the specialty tools for every major system – Liebherr diesel engines, steering cylinders, electrical, transmission, front and rear axles MT-L II, air conditioning, cab glazing, and two different central lubrication systems (Liebherr and Groeneveld). Some of these tools you can fabricate; some you have to buy. The manual tells you exactly which part numbers to order. I’ve seen guys waste a day because they didn’t have the right adapter for the hydraulic cylinder piston nut. That’s a day you don’t get back. Use the tool list on pages referenced in the introductory sections.

Technical Data: Engine, Hydraulics, and Cooling Specs

Section 020 breaks down the complete machine with bucket (both Z lift arms and industrial lift arms), engine data, fuel tank capacity, diesel particulate filter temperature sensors, clutch, splitter box, and the fan gear pump and motor. Need the charge pressure for the working hydraulics pump? It’s in section 020.4.1. The manual even gives you the float position pressure switch settings and the ride control hydro accumulator specs. Every number comes straight from Liebherr’s engineering department. Compare that to a third-party manual that guesses the fan gear pump displacement – and you’ll see why this is the only source you should trust.

Torque Specs and Fastener Standards (Section 010.3)

Section 010.3.1 covers prestressing forces and tightening torques for bolts with metric standard and fine threads. It’s not just a list of numbers – it includes assembly instructions for the piston and piston nut of the hydraulic cylinder per WN 4121, with maximum permissible adapter operating pressures. If you’re rebuilding a steering cylinder or resealing a lift cylinder, you need those torque values to the Newton-meter. I’ve seen a 1-inch bolt yield because someone used a generic torque chart from the internet. That’s a repair that costs a whole lot more than this manual.

Maintenance Intervals and Preservation Guidelines

Section 010.4 tells you exactly what to do when the machine sits for 2 months, 12 months, or longer. A loader that’s been parked in a Texas yard for six months can have condensation in the fuel system, seals stuck from lack of lube, and a dead battery. The manual walks you through putting it back into service step by step – fuel system purge, hydraulic cycle checks, and engine pre-lube procedures. For shops that take in trade-ins or do winter storage, that section alone pays for the manual on the first machine.

Why OEM Beats Aftermarket Every Time

I’ve worked with aftermarket manuals that skip the safety warnings, mangle the wiring diagrams, and list torque values that are off by 15%. This manual is the original factory print from Liebherr-Werk Bischofshofen GmbH, issued in October 2014, version 07. It’s 790 pages of verified data – no third-party reprints, no photocopies. The wiring diagrams, hydraulic plans, and circuit diagrams are clear enough that you can trace a pilot control solenoid valve fault without guessing. For related machines, check out the Liebherr D 904 D 906 D 914 D 916 D 924 2003 Service Manual – OEM Factory Specs or the Liebherr R984 C 2008 Service Manual – OEM Factory Specs for Track Excavator or the Liebherr Serie 4 2013 Service Manual – 1176 Pages of Factory Specs. These cover the same engineering standards.

External references: If the transmission section (splitter box, clutch) is unfamiliar, you can look up the basics of a Manual Transmission to understand the principles, but the manual itself gives you the exact tear-down and assembly sequence for the L 566-1168. And yes, the same external link can apply to the driveline: another Manual Transmission but the OEM specs are what count.

Frequently Asked Questions

Does this manual cover the electrical system wiring diagrams?

Yes. Section 010.2.4 lists special tools for the electrical system. The full circuit diagrams are included inside the manual.

What torque values are listed in section 010.3.1?

It covers metric standard and fine thread bolts, including prestressing forces, tightening torques, and assembly instructions for hydraulic cylinder piston nuts per WN 4121. The table includes maximum adapter operating pressures. You have to see it to appreciate the detail – it’s not a generic chart.

Is this manual printable?

Yes, the PDF is printable. But honestly, you’ll want it on a tablet or laptop next to the machine so you can zoom into the hydraulic schematics. I print only the safety checklist for the clipboard.

Will this manual help me rebuild the front axle MT-L II?

Section 010.2.6 lists special tools for front axle MT-L II, and the technical data section (020) includes axle-related specs. For removal and installation steps, follow the “Removal and installation tasks” chapters referenced in the preface.

When you’re ready to work on that L 566-1168 – whether it’s a routine fluid change or a full engine-out rebuild – stop wasting time on Google searches and guesswork. Access the Factory Manual and keep it within reach of your toolbox.
