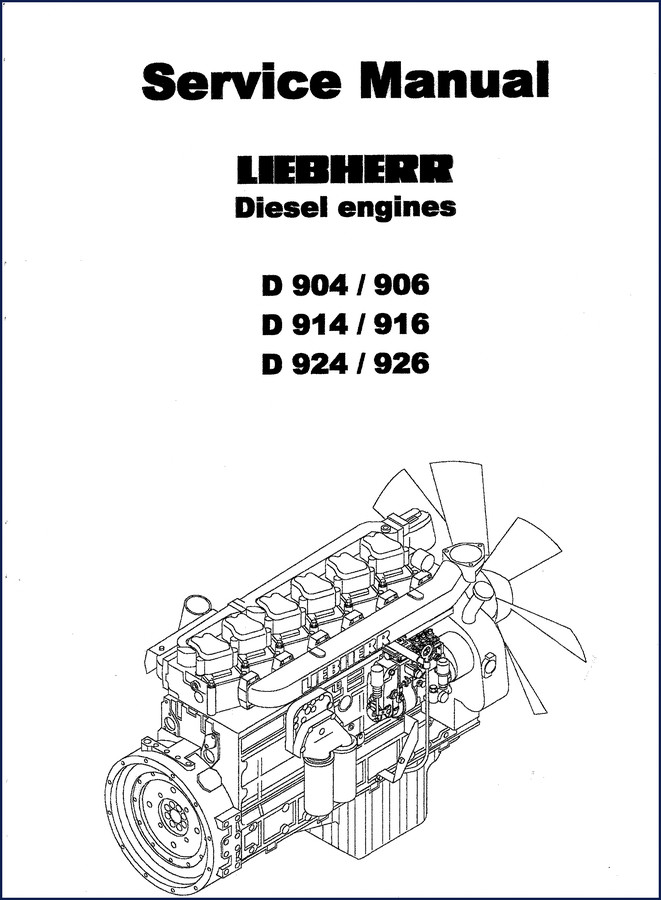

Liebherr D 904, D 906, D 914, D 916, D 924 2003 Service Manual – What the Factory Wrote

If you’re tearing into a Liebherr diesel and don’t have the factory specs, you’re gambling with your time and your parts. I’ve seen guys bolt a cylinder head onto a D 914 using aftermarket torque values and then wonder why it leaks coolant after twenty hours. That’s not a repair, it’s a redo. This is the real thing: Liebherr’s own 2003 Service Manual for the Liebherr D 904, D 906, D 914, D 916, D 924 2003 Service Manual. 183 pages of what the factory expects. Not a reprint. Not a third-party guess.

Torque Specifications: Why Page 5 of the Index Tells You More Than a Chart

You’ll find the torque data in Chapter 5 of this manual. That chapter lists tightening torques for every threaded fastener on these engines – cylinder head bolts, main bearing cap bolts, connecting rod nuts, you name it. But here’s the thing: the manual doesn’t just give you a number. It tells you the order, the sequence, and the angle (if any). The index on page 3 shows that Chapter 5 is titled “Torque specifications.” That’s what you need when you’re holding a wrench and the book is open on your toolbox. Liebherr wrote this in Nm, but you can convert. I always check the manual even if I think I know the spec. Memory fools you; paper doesn’t.

Cylinder Head and Liner: What the Factory Expects

Chapters 7, 8, and 9 cover cylinder head gaskets, the cylinder head itself, and cylinder liners. If you’re swapping a head on a D 906, you need the gasket thickness selection procedure. That’s in Chapter 7. The manual tells you how to measure liner protrusion and choose the right gasket. Skip that step and you’ll blow the gasket inside fifty hours. I’ve seen it. Also, the valve adjustment procedure is in Chapter 6 – separate from the head removal. That matters because you adjust valves after the head is torqued, not before. The manual orders the work in the sequence that works.

7 Systems Covered: From Lubrication to Turbocharger

Look at the index (page 3). There are 39 chapters. Seven of them cover major engine systems: lubrication circuit (Chapter 14), coolant circuit (17), fuel system (21), injection pump (24), engine exhaust (27), turbocharger (34), and gear drive (35). Each chapter starts with a system diagram, then lists the components, then gives the removal, inspection, and installation steps. For the lube oil pump (Chapter 16), the manual tells you the gear backlash spec. For the turbocharger (Chapter 34), it gives you the shaft play limits. This isn’t a theory book. It’s a workbench manual.

Does This Cover the D 916 and D 924? Yes, and the D 926

The title lists D 904, D 906, D 914, D 916, and D 924. But the foreword on page 2 includes the D 926 as well. So if you’re working on a D 926, this manual applies. The engine data chapter (Chapter 4) gives the adjustment values, operating pressures, and fluid quantities for all six models. For example, the injection pump drive adjustment (Chapter 25) applies to the D 916 and D 924 pumps. One manual, one set of specs. That’s how Liebherr designed it.

Source Authenticity: Why OEM Beats the Aftermarket Copy

On page 2, the foreword explicitly states: “This Service manual was written by Liebherr-Machines-Bulle S.A., Dept. Service – Diesel – Engine and issued by the Service Dept. Liebherr Hydraulikbagger GmbH.” That’s the OEM writing it, not some third party scanning and reprinting. The manual includes Liebherr identification number 8718458. Aftermarket manuals often miss the injection pump drive timing procedure or the specific valve adjustment sequence for the D 914. This one doesn’t. If you want the same book the dealer techs used, this is it. Related manuals you might need: LIEBHERR R984 C Litronic Operation and Maintenance Manual, Liebherr Telescopic handler Serie 4 Service Manual, and Liebherr L 556 Service Manual 11450110.

Valve Adjustment: The Procedure You Need

Chapter 6 is just two pages, but it’s critical. It tells you the valve clearance for intake and exhaust valves on each model. For the D 904, the intake clearance is different from the D 924. You set them with the engine cold, turning the crankshaft to the right position. The manual shows you the rotation direction (Chapter 3) and the cylinder numbering. If you get the order wrong, you’ll bend a pushrod. I’ve watched a rookie do it. This manual prevents that.

FAQ

Does the manual include wiring diagrams for the starter and alternator?

The manual covers the starter (Chapter 31) and the alternator (Chapter 32) as components – removal, installation, and tests. It does not include full machine wiring harness diagrams. For the alternator, it gives the charging circuit test procedure and the tightening torque for the mounting bolts.

What torque units are used?

Nm. All torque specifications in the manual are in Newton-meters.

Can I use this manual for a D 904 engine in a loader?

Yes. This manual covers the engine itself, independent of the machine it’s installed in. The engine data, tolerances, and repair procedures apply regardless of the application – whether in a loader, excavator, or generator set.

Is there a troubleshooting section?

Yes, Chapter 38. It lists common problems (low power, high oil consumption, hard starting) and gives possible causes and corrective actions.

If you’re rebuilding a Liebherr diesel – whether it’s the D 906 in a dozer or the D 924 in a excavator – you need the factory numbers. Aftermarket manuals skip the details that keep the engine together. This one has it all: the torque sequence for the crankshaft bearing caps (Chapter 12), the camshaft and valve drive specs (Chapter 13), and the special tools list (Chapter 39). Don’t gamble on a guess. Manual Transmission and Manual Transmission are different animals – stick to the engine manual. Access the Factory Manual now and work with the same data Liebherr service techs used.
