Liebherr L 556 2014 Service Manual – 728 Pages of Factory Specs

If you’ve ever tried to pull a hydraulic pump on a Liebherr L 556 without the factory documentation, you know the drill: guessing on hose routing, hoping the torque values are close enough, and praying the wiring diagram matches what’s actually in front of you. That’s a good way to send a $50,000 machine to the shop floor with a blown seal or a shorted ECU. This Service Manual for the L 556 (2014 edition, 728 pages) is the actual OEM document from Liebherr-Werk Bischofshofen. Not a reprint. Not a third-party compilation. The same binder that trained dealers use. I’ve been turning wrenches for 28 years, and I can tell you: when the spec matters, you don’t use aftermarket knockoffs.

Safety Instructions – Crushing, Fire, and ROPS

The manual opens with 20 sub-sections under 010.1 Safety instructions. That’s not padding – that’s covering every way this machine can kill you. Sections 010.1.2 through 010.1.4 cover crushing injuries, burns, and fire/explosion prevention. You’ll find specific warnings about hydro accumulators (010.1.12), welding on the frame (010.1.13), and working on the attachment (010.1.14). The ROPS/FOPS section (010.1.17) gives testing procedures and torque values for the structure bolts. If you’re going to lift the cab or modify the roll cage, you need that data. Page 26 (approximate, the manual uses a decimal numbering system) lists the prestressing forces for metric bolts. Don’t skip that chapter – I’ve seen a loader cab come loose at the pivot because somebody used a generic torque chart.

What Torque Values Are Listed in the Standards Section?

Section 010.3.1 is titled “Prestressing forces and tightening torques for bolts with metric standard and fine threads.” That’s where you’ll find the factory values for M8 through M30 bolts in both standard and fine pitch. The table includes Class 8.8, 10.9, and 12.9 bolts. If you’re reassembling the splitter box (020.2.8) or the fan gear pump (020.3.1), those numbers are your only guarantee against stripped threads or joint failure. The manual doesn’t distinguish between ISO and ASTM – it’s the Liebherr standard, which is what the machine was built to. I always cross‑reference these with a click‑type torque wrench after the initial pull.

20 Safety Sub-Sections for the L 556

From 010.1.1 to 010.1.20, the manual covers general safety, startup precautions, slope operation (010.1.7), parking (010.1.8), towing (010.1.10), and even crane transport (010.1.15). Each sub‑section has its own checklist and warnings. The vibration protection section (010.1.19) includes seat suspension adjustment specs. The “See and be seen” section (010.1.20) details operator field‑of‑view requirements – useful if you’re adding cameras or mirrors. This isn’t a generic safety pamphlet; it’s the engineering team’s risk assessment for this specific chassis. Use it before every major repair.

Check the Special Tools List Before You Start

Section 010.2 lists special tools for every major system: 010.2.2 for Liebherr diesel engines, 010.2.3 for hydraulic cylinders (Z kinematics), 010.2.6 for electrical, 010.2.8 for the front axle MT-L II, and 010.2.10 for the air conditioning system. Before you crack a hydraulic line on the steering cylinder (010.2.5), see if you have the correct seal driver and backup ring tool. I’ve watched a tech ruin a $700 steering cylinder because he used a socket to tap in a wiper seal. The manual calls out the part numbers for each specialized tool – you can order them from Liebherr or fabricate your own if you’re careful. Don’t attempt the transmission split without the anchoring fixture from 010.2.7 – the input shaft will walk out of the bearing and you’ll be buying a new case.

Technical Data: Diesel Engine and Drive Group Specs

Section 020.2 covers the complete drive group: diesel engine (020.2.1), DPF temperature sensors (020.2.2), fuel tank capacity (020.2.3), pre‑filter and fine filter (020.2.4/020.2.5), clutch (020.2.7), and splitter box (020.2.8). The engine section gives you oil capacity in quarts, injection timing, and valve adjustment specs – all in both metric and imperial equivalents. The fan gear pump (020.3.1) and motor (020.3.2) have flow rates and pressure relief settings. If you’re chasing a cooling system issue, those numbers are your baseline. The working hydraulics section (020.4) covers the pump (020.4.1), pilot control unit (020.4.2), stabilisation module (020.4.4), and ride control (020.4.5). Each component has a separate sub‑chapter with removal, installation, and testing procedures. That’s where you’ll spend most of your time on this loader.

Who Needs This Manual

This is for the shop that services heavy equipment or the owner‑operator who does his own maintenance. The L 556 is a 20‑ton class wheel loader with a 200‑horsepower diesel, a powershift transmission, and a load‑sensing hydraulic system. You aren’t fixing it with a crescent wrench and a prayer. Every procedure assumes you have a hydraulic pressure test kit, a diagnostic scan tool, and a set of torque wrenches that are calibrated within the last year. If you’re a home‑garage mechanic who’s comfortable with a compact tractor, the first step is reading section 010.1.4 (safety during start‑up) before you even approach the machine. The manual is written for trained Liebherr technicians – it doesn’t teach you hydraulics or electronics. It gives you the factory data so you can apply what you already know.

Source Authenticity: OEM vs. Aftermarket

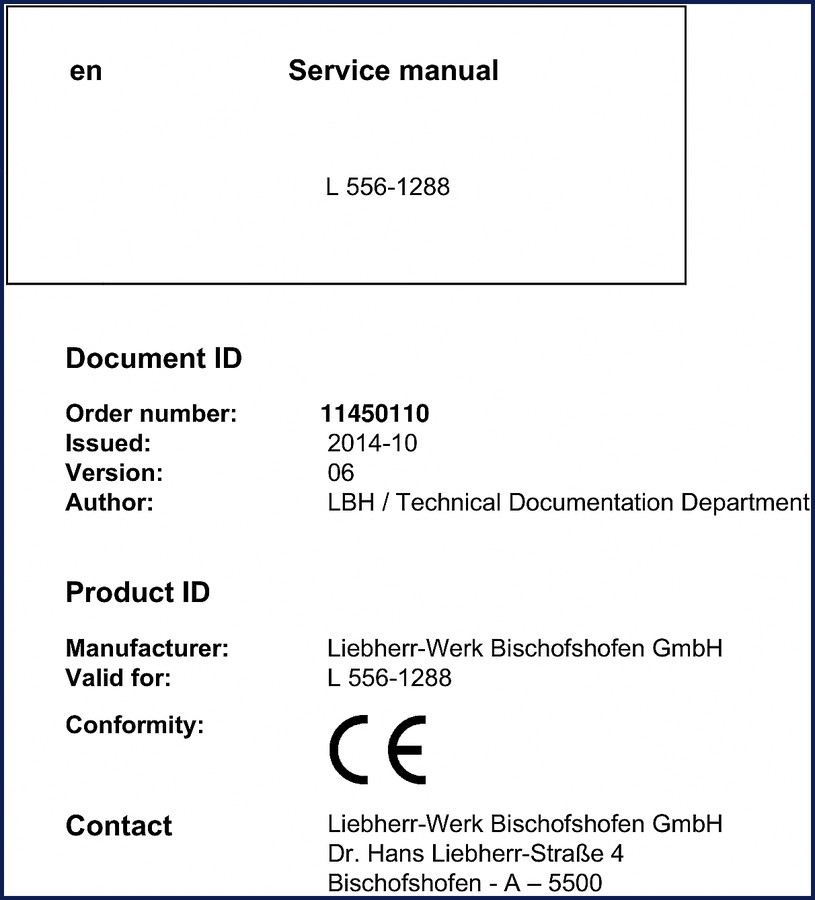

This manual is an original factory PDF from Liebherr-Werk Bischofshofen, order number 11450110, issued October 2014, version 06. The document ID and author information are printed on every page. I’ve worked with aftermarket manuals that claim to cover the L 556 but use generic torque charts and missing wiring diagrams. Those will cost you more in downtime than the price of this manual. The 010.3.2 section on piston and piston nut assembly for hydraulic cylinders (WN 4121) includes the maximum permissible adapter operating pressure – a number that changes with each cylinder revision. The aftermarket won’t have that. If you’re rebuilding a hydraulic cylinder from a 2014 L 556, you need the factory spec, not a guess from 2009.

FAQ

Does this manual include wiring diagrams?

Yes. The TOC lists circuit diagrams, hydraulic plans, and technical drawings in the preface. The actual diagrams are in the later sections of the manual – you’ll need them for diagnosing electrical faults on the stabilisation module or ride control system.

Can I use this for a 2012 L 556?

This manual is specifically for model year 2014, serial number L 556-1288. Earlier models may have different hydraulic pump configurations or engine revisions. Check the parts catalog for your serial number before ordering.

The bottom line: if you’re going to open a Liebherr L 556 for a repair, do it with the factory data in your hand. Don’t rely on forum posts or generic PDFs. Access the Factory Manual from AutoRepairManuals and keep a copy on your shop tablet. Your tools, and your liability, will thank you.
