Liebherr L 550-1287 2014 Service Manual

If you’re pulling a transmission out of a 2014 Liebherr L 550-1287 without factory specs, you’re wasting time and risking a $20,000 mistake. This manual is the difference between a proper rebuild and a scrap pile. I’ve seen too many guys try to fudge torque values with aftermarket data—ends with stripped threads or a hydraulic leak that costs a week of downtime. This is the original OEM document, 726 pages, direct from Liebherr-Werk Bischofshofen GmbH. It covers every bolt, every hose, every sensor on the machine.

010 Introduction: Safety Instructions and Special Tools

Page 3 of the manual lays out the warning symbols used throughout—DANGER, WARNING, CAUTION, ATTENTION. These aren’t decoration. When a section says “DANGER: Rotation of the impeller”, you stop and disconnect the battery. Page 4 shows the exact structure of each warning: type of hazard, consequences, and mandatory actions. The safety section runs 18 subsections covering everything from welding on the machine (010.1.13) to transporting by crane (010.1.15). Skip this part and you’re gambling with your life and the machine. Also included is a full list of special tools (010.2) needed for maintenance and repair—Liebherr diesel engine tools, hydraulic cylinder tools, steering cylinders, electrical system, transmission, axles, A/C, cab glazing, and central lubrication. If you don’t have the right puller or adapter, the manual tells you exactly what to buy or fabricate. Manual Transmission work on this loader requires the correct bearing separator from the list.

Technical Data for the 2014 L 550-1287

Section 020 breaks down the complete machine specs: overall dimensions with Z lift arms, industrial lift arms, drive group, diesel engine, fuel system, cooling system, and working hydraulics. You get pump flow rates, tank capacities, filter part numbers, and the splitter box clutch data. Ever need to know the fan gear motor displacement? It’s in 020.3.2. The manual gives you the numbers in metric, but you can convert to Imperial if you’re using inch-pound torque wrenches. For serious work, use the factory values—don’t trust a third-party conversion table. Liebherr D 904 D 906 D 914 D 916 D 924 2003 Service Manual – OEM Factory Specs is a separate manual for engine-specific repairs, but this one covers the complete L 550-1287.

What Torque Specifications Are Included?

You need to tighten a hydraulic cylinder piston nut? Section 010.3.2 (Assembly instructions for the piston and piston nut, WN 4121) gives the exact prestressing force and tightening torque. The table shows maximum permissible adapter operating pressure, application range, and requirements. General bolt torque tables for metric standard and fine threads are in 010.3.1. These are the same values Liebherr uses on the assembly line. I’ve seen aftermarket manuals list 50 ft-lbs where the factory calls for 68 Nm (about 50 ft-lbs, but with a specific angle or sequence). Liebherr R984 C 2008 Service Manual – OEM Factory Specs for Track Excavator also uses this same torque philosophy—don’t wing it.

3 Reasons to Trust the OEM Factory Manual

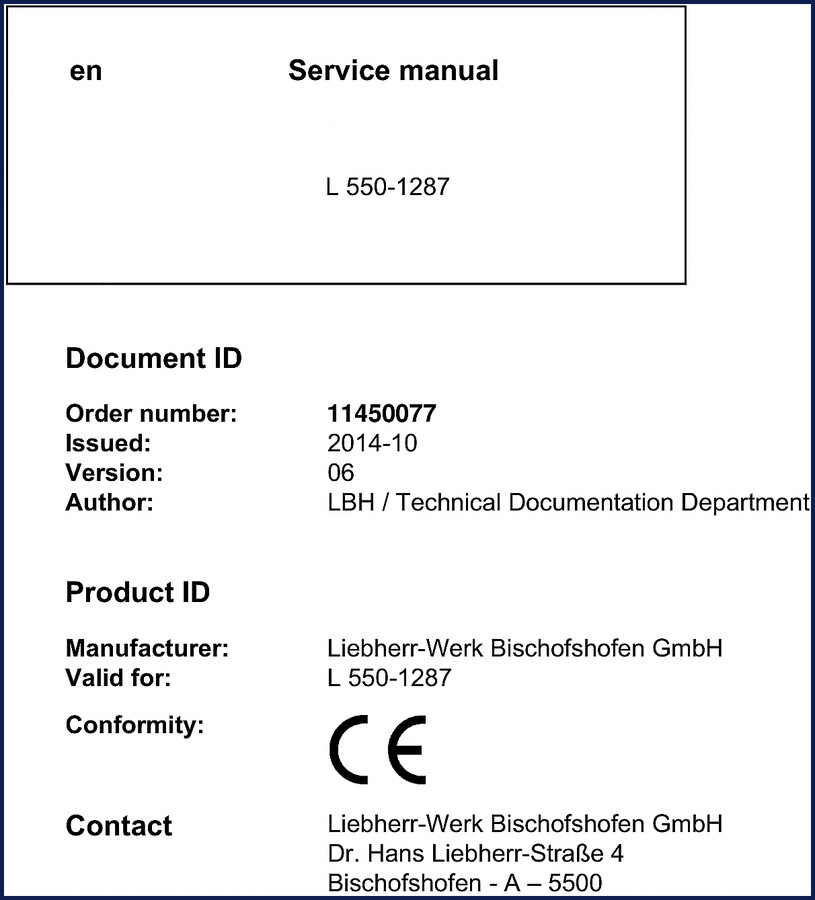

First, this is the original Liebherr document, order number 11450077, issued 2014-10, version 06. It’s not a scan of a scan or a translation from Russian. Second, the 726 pages include step-by-step removal and installation procedures for every major component—engine, transmission, axles, hydraulics, electrical system. Third, every safety warning is context-specific. For example, section 010.1.12 warns about hydro accumulators: you must depressurize before disconnecting lines. That’s not in a generic manual. Liebherr Serie 4 2013 Service Manual – 1176 Pages of Factory Specs covers a different series, but the same engineering rigor applies.

Get the Right Tools from the Special Tools Section

Section 010.2 lists 13 subcategories of special tools. If you’re rebuilding the front axle MT-L II, you need the tools in 010.2.8. For the rear axle, 010.2.9. The manual even gives you the tool numbers—order them directly from Liebherr or fabricate them if you’re skilled. I’ve had to make a puller for the steering cylinder because the local dealer didn’t stock it; the drawing in the manual saved me two days of guessing. Manual Transmission work on the splitter box (020.2.8) requires special alignment pins. Don’t start without them.

Does this manual cover the engine rebuild?

Yes, section 020.2 covers the diesel engine, including removal and installation.

What are the safety precautions for welding?

Section 010.1.13 provides specific instructions for welding work on the machine, including precautions to avoid fire and electrical hazards. It covers disconnecting the battery, removing surrounding components, and grounding procedures. Follow these steps exactly to prevent damage to electronic control units. The manual also specifies the use of a welding ground clamp directly to the component being welded, not through bearings or hydraulic lines, to avoid electrical arcing through sensitive parts. That level of detail is why you pay for the OEM document.

Is the manual available in English?

Yes, this is the English language factory manual.

How do I find the correct torque for the cylinder piston nut?

Section 010.3.2 covers assembly instructions for the hydraulic cylinder piston and piston nut, including the required prestressing force and tightening torque. Refer to the table for your specific cylinder configuration.

Every hour you spend with a generic guide is an hour you could be turning wrenches with the right data. Access the Factory Manual now and get the complete 726-page OEM service manual for the 2014 Liebherr L 550-1287. No guesswork, no aftermarket approximations—just the specs that keep the machine running.
