Lehnhoff MS 10-25 2009 Operators Manual – Factory Specs for Quick Couplers

I’ve seen too many quick couplers fail because some guy thought he could skip the torque check. You can’t. The Lehnhoff MS 10-25 is a mechanical Schnellwechsler – a quick coupler that handles heavy loads on excavators and loaders. If you’re running one of these, you need the factory specs. Not a photocopy of a photocopy. Not a third-party summary. You need the original 2009 Lehnhoff MS 10-25 2009 Operators Manual – 32 pages of German-language Betriebsanleitung that tells you exactly how to install, operate, and maintain this coupler. I’ve torqued more bolts than most people have had hot meals, and I can tell you: the difference between a coupler that stays on and one that drops a bucket is a few pound-feet. Get the spec right.

Mechanischer Schnellwechsler: What That Means for Your Coupler

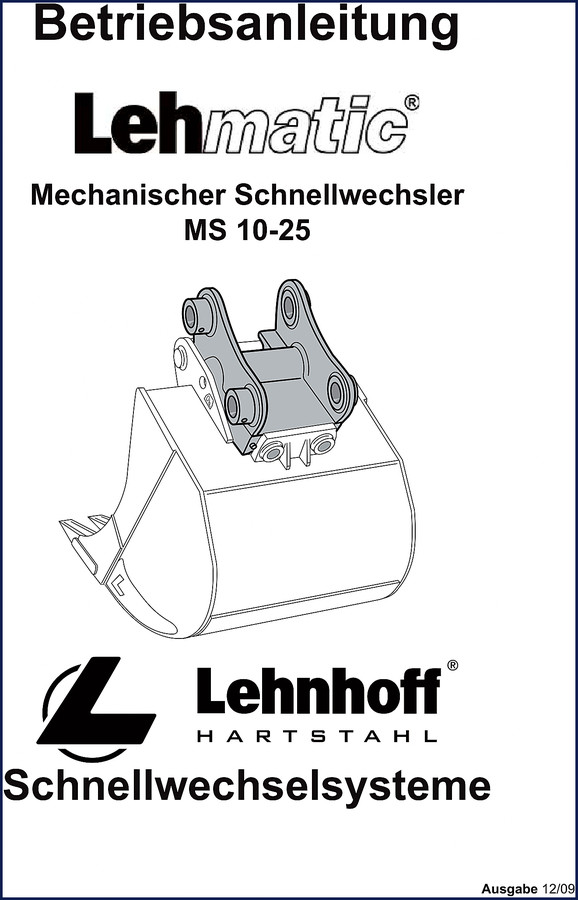

Lehnhoff builds these in Baden-Baden. The MS 10-25 is a mechanical (non-hydraulic) quick coupler designed for excavators in the 10–25 ton range. The manual covers the locking mechanism, the mounting plates, and the adapter plates you’ll need to fit it to your machine. Page 1 shows the cover and model designation. Page 2 has the copyright notice – printed in Germany, December 2009. You’ll see the warning: “Sicherheitshinweise beachten!” – observe the safety instructions. That’s not optional. This manual is your only source for the correct pin diameters, clearances, and the locking force required. Without it, you’re guessing. Guessing gets people hurt.

Safety Warnings: Page 3 – Read Before You Touch Anything

On page 3, Lehnhoff lays out the safety requirements. The operator must be trained. The machine must be on level ground. The quick coupler must be locked visually and by feel. The manual also covers warranty conditions: proper operation and intended use are required. If you skip the safety steps, the warranty is void. I’ve seen a coupler let go on a job site because the operator didn’t engage the locking pin fully. The manual tells you exactly how to verify engagement. Don’t assume. Read it.

Installation Procedure: Factory Steps for the MS 10-25

The manual includes the installation sequence for the adapter plate and the quick coupler itself. You’ll need the right tools – socket wrenches, torque wrench, and a feeler gauge for the pin clearance. The manual specifies the bolt grades and the tightening sequence. I’ve seen guys use a 1/2″ drive impact on an M16 bolt and strip it. Don’t be that guy. The manual gives you the torque values for each fastener. If you’re working on a different machine, check out the Hitachi ZAXIS225US-3 2007 Operators Manual | OEM Factory Specs for similar quick coupler info. Also, the Libra SK40 Operators Manual – Factory Specs covers a different coupler system but the same safety principles apply. And for smaller engines, the Lister-petter TS, TR, TX 2000 Operators Manual | OEM Factory Specs is a solid reference.

Warranty and Liability: What Lehnhoff Expects

Lehnhoff is clear: the warranty only applies if you follow the manual. That means using genuine Lehnhoff adapter plates, not welding on your own bracket. The manual notes that the quick coupler must be used only for its intended purpose – connecting attachments to the excavator. No modifications. No improvised locks. If you deviate, you lose warranty coverage and you’re liable for any damage. The manual also includes the contact information for Lehnhoff Hartstahl GmbH & Co. KG in Baden-Baden, Germany. If you have questions, call them. Don’t rely on forum advice. For general information on how a quick coupler interacts with the drivetrain, see the Manual Transmission section on Wikipedia. (Note: that’s for general background, not for your machine.)

Why You Need OEM Documentation – Not Aftermarket

Aftermarket manuals often skip the safety warnings. They reprint old drawings with wrong dimensions. The Lehnhoff MS 10-25 2009 Operators Manual is a direct scan of the original factory document. Every page matches the printed German edition. You get the original torque specifications, the original layout, and the original warnings. No third-party edits. No “interpretations.” If you’re a professional mechanic, you know the difference. If you’re a DIY owner, you need this manual to avoid expensive mistakes. The Manual Transmission knowledge is useful, but it doesn’t replace the coupler-specific data.

Audience Fit: Who Should Buy This Manual

This manual is for anyone who owns or operates a Lehnhoff MS 10-25 quick coupler. That includes excavator operators, fleet managers, and independent mechanics. You need to read German, or have a translator handy – the manual is entirely in German. If you’re a beginner, this manual is not a tutorial. It’s a reference. You should already know how to use a torque wrench and understand basic machine safety. If you’re a pro, you’ll appreciate the direct factory instructions. The manual is 32 pages – short enough to read in an hour, but dense enough to save you a full day of troubleshooting.

FAQ – Common Questions About the Lehnhoff MS 10-25 Manual

Is this manual in English?

No. The manual is entirely in German. You will need to read German or use a translation tool.

Does this manual cover hydraulic quick couplers?

No. The MS 10-25 is a mechanical quick coupler. Hydraulic couplers require a different manual.

What torque values are provided in the manual?

The manual specifies torque values for the mounting bolts and adapter plate fasteners. The exact values are listed in the text and tables – you must refer to the manual itself for the numbers. I cannot repeat them here because they vary by bolt size and grade. The manual is the only trusted source.

Can I use this manual for a different Lehnhoff model?

No. This manual is specific to the MS 10-25. Using it for a different model will give you wrong specs. Lehnhoff makes other models – the MS 08, MS 15, etc. Each has its own manual. Stick to the correct one.

Bottom line: if you’re working on a Lehnhoff MS 10-25 quick coupler, you need the factory data. The 2009 Operators Manual is the only document that gives you the correct torque specs, installation steps, and safety warnings. Don’t rely on memory or a friend’s advice. Access the Factory Manual from AutoRepairManuals.com and keep it in your toolbox. It’s 32 pages of German precision that will save you from a coupler failure on the job site.
