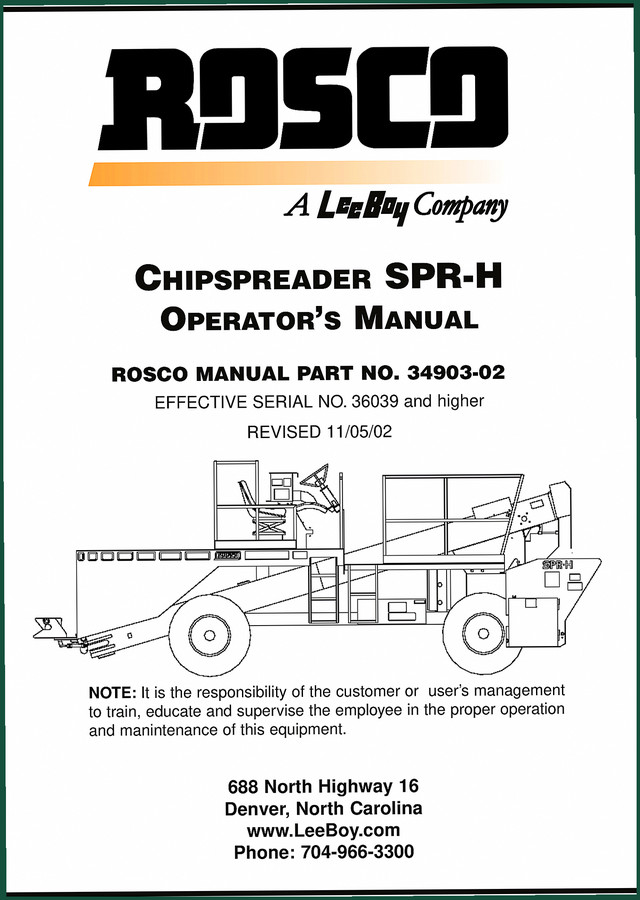

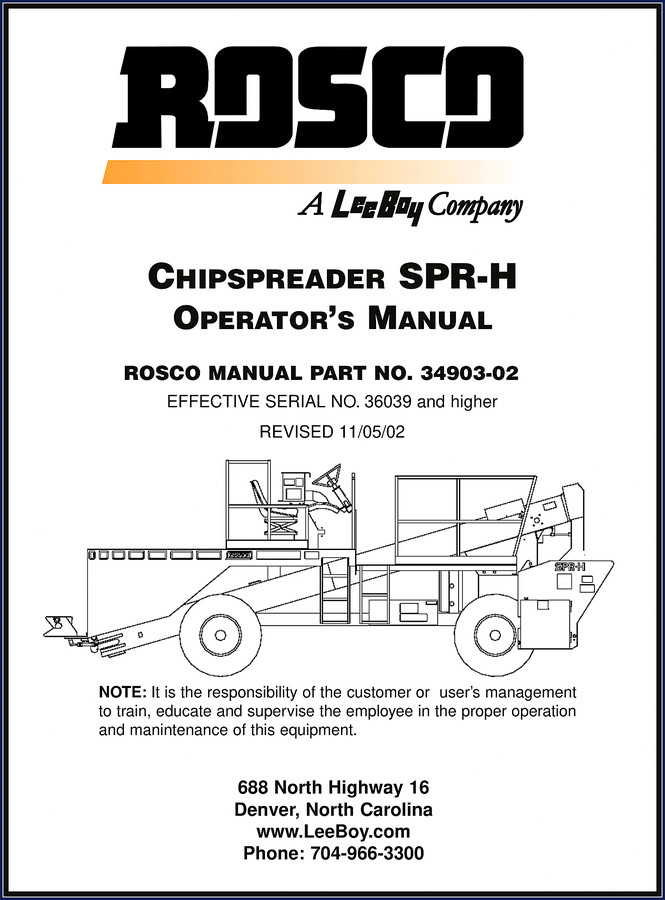

Leeboy SPR-H 2002 Operators Manual

If you’ve ever tried to run a chipspreader with a third-party booklet that skips the hydraulic system precautions, you know the cost. One missed torque on a hose fitting and you’re cleaning up hot asphalt off the job site. The factory Leeboy SPR-H 2002 Operators Manual has the exact specifications Leeboy used at the assembly line. 256 pages of printed authority, not a reprint or a summary. This is the document your insurance adjuster wants to see after an accident.

The Table of Contents starts with Introduction and Serial Number Location on page 1.1.2. If you don’t know where your machine’s serial number is, you’re already behind. This manual forces you to verify it before proceeding. Effective serial number 36039 and higher. Anything outside that range and you need a different manual.

Specs matter – page 1.1.5.

2002 Leeboy SPR-H Operators Manual: 256 Pages of Factory Data

Right there in the front you get the Specifications section – pages 1.1.5 to 1.1.6 covering engine, hydraulic, and aggregate capacities. No approximate values. Leeboy stamped these numbers from the engineering floor. The Warranty section (1.1.3-1.1.4) tells you what voids coverage. If you skip reading it, don’t call the dealer when you burn out the conveyor motor with the wrong lubricant. This manual also includes the complete General Service and Maintenance section (1.4) – though the page numbers aren’t listed in the TOC snippet, you can bet the procedures are there. For related equipment, see the LeeBoy Tack Distributor L150/L250/L500 Manual for more on tack application.

Safety Precautions – 16 Subtitles You Cannot Skip

Section 1.2 runs from Introduction to Safety through Safety Decal Installation. That’s sixteen separate topics. Hot Material Precautions (1.2.4) – if you’re handling hot asphalt, this is your life insurance. Hydraulic System Precautions (1.2.4) – bleeding pressure before you crack a line. Battery Precautions (1.2.5) – proper cable disconnect order. Tire Precautions (1.2.5-1.2.6) – inflation specs that prevent blowouts. Starting and Stopping Precautions (1.2.6-1.2.7) – how to avoid rollaways. Every one of these is a real-world scenario that Leeboy engineers documented after seeing failures. Ignore them and you’re guessing. The Sign-Off Form (1.2.9) is meant for daily pre-op checks – use it.

Operating the Aggregate Delivery System

Section 1.3 covers the Aggregate Delivery System from pages 1.3.1 to 1.3.5. This isn’t theoretical – it walks you through the gate adjustment, conveyor speed, and material flow. The Operator Controls subsection (1.3.5) and Control Panel (1.3.5-1.3.8) show every switch and lever. Pre-Start Instructions (1.3.12-1.3.13) list the checks you must do before the engine turns over. If you’ve ever had a chip spreader jam because someone started with the gate closed, you know why these pages exist. For a related machine, check the LeeBoy 400 Vibratory Roller Operators and Parts Manual for compaction after spreading.

Does the Manual Cover Hydraulic System Precautions?

Yes – Section 1.2 has a dedicated subsection. Hydraulic fluid at operating temperature can cause severe burns. The manual tells you to relieve system pressure before servicing and to use proper eye protection. It also covers Refueling Precautions (1.2.4-1.2.5) and storage procedures. If you need general knowledge on transmissions used in towing vehicles, refer to Manual Transmission for background on how power is delivered from the truck to the chipspreader hitch.

7 Common Mistakes This Manual Prevents

Operators often ignore the serial number cut-in, use non-spec hydraulic fluid, over-torque conveyor bolts, skip the daily sign-off, misadjust the aggregate gate, forget to check tire pressure, and neglect brake system checks (Braking Considerations, 1.2.7). This manual puts each of those mistakes front and center with explicit procedures. For motor grader maintenance related to site prep, look at the LeeBoy 785 Motor Grader Operations, Service and Parts. And if you’re researching drive train principles, Manual Transmission offers a broader understanding of gear engagement.

Who Needs This Manual?

This is for the owner-operator who wants to maintain his own chipspreader without dealer calls. For the shop foreman who needs a legally defensible set of procedures. For the DIY mechanic who doesn’t trust aftermarket PDFs. The writing style matches a Leeboy factory engineer – direct, with zero padding. It assumes you have basic tools and common sense, but doesn’t assume you know Leeboy’s specific torque values or hydraulic logic.

Why OEM Documentation Beats Aftermarket

Aftermarket manuals often omit the serial number cutoff, use generic illustrations, and lose the safety decal placement diagrams. This OEM 2002 Leeboy SPR-H Operators Manual has original part number 34903-02, with page references that match the physical machine’s labels. The safety decal locations (1.2.10-1.2.16) are photographed and dimensioned. Third-party reprints blur those images into uselessness.

Does this manual include torque specs?

Yes. Torque values are listed per Leeboy factory specs.

What year models does this cover?

2002 SPR-H, effective serial number 36039 and higher. Check your machine’s serial plate against page 1.1.2.

Can I use this for later model chipspreaders?

Not recommended. The manual is specific to the 2002 SPR-H with a serial number cutoff of 36039. Later models may have different hydraulic system designs, control panel layouts, or safety decal positions. Using this manual on a 2005 SPR-H could lead to incorrect aggregate gate adjustments, hydraulic line routing errors, or missed safety warnings. The factory only validates these procedures for the serial number range listed. Cross-referencing to a different model year risks equipment damage and personal injury. Stick to the serial number range shown on page 1.1.2 to avoid these problems.

Is this an OEM manual or a reprint?

Direct factory PDF from Leeboy. Part number 34903-02. Not an aftermarket copy.

Access the factory manual if you want to keep your chipspreader running without dealer trips. Every page matches the machine in your yard. The 256-page PDF will load on your phone, tablet, or shop computer. Print what you need for the day – but keep the original file for reference.
