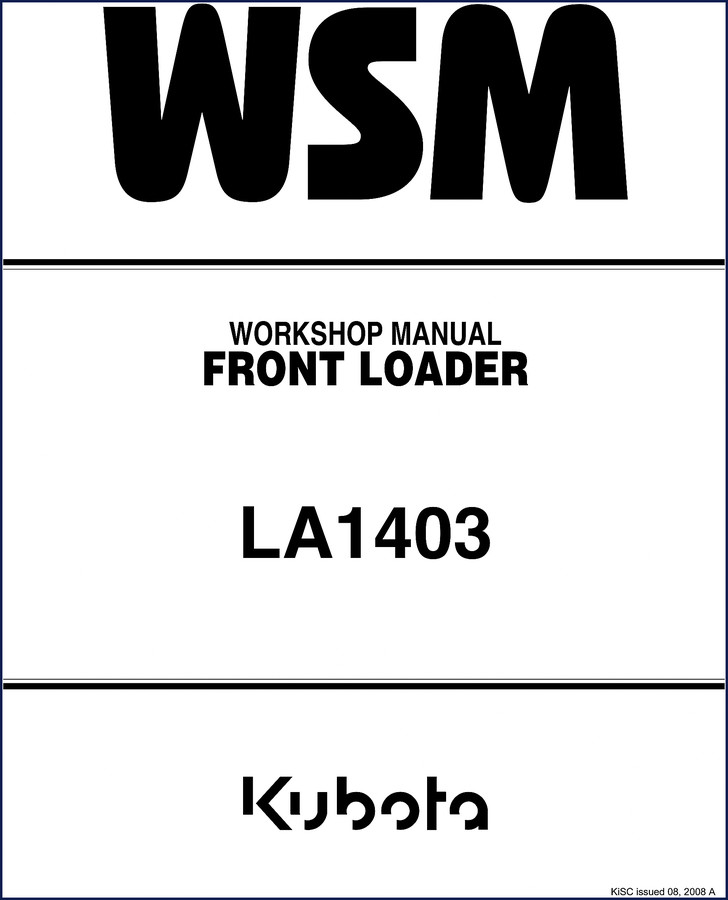

Kubota LA1403 2008 Workshop Manual

Kubota LA1403 2008 Workshop Manual – if you are wrenching on a Kubota LA1403 front loader, you need the print that came from the factory. I’ve seen aftermarket reprints that butcher the torque specs, leave out the safety decal locations, or skip the bleeding procedure for the hydraulic quick couplers. This is the real OEM manual, 119 pages, published July 2008.

You want to rebuild the bucket linkage? You need the exact retaining ring orientation and the seal driver dimensions. This manual has them. KiSC issued it, which means Kubota Industrial Service Corporation stamped the page numbers – that’s the same source the dealer techs use.

General Section: Before You Pull a Pin

The first section, “General”, covers tractor identification, general precautions, a maintenance checklist, and special tools. Page 1 of the OCR shows the safety instruction page – DANGER, WARNING, CAUTION labels exactly as Kubota printed them. You hang a “DO NOT OPERATE” tag in the operator station before you touch anything. That isn’t a suggestion; it’s procedure. If you skip the battery negative cable disconnect step because you’re in a hurry, you are the reason we have warning labels.

7 Systems Covered in the Mechanism Section

The “Mechanism” part of the Workshop Manual explains construction and function of the loader frame, boom arms, bucket, hydraulic cylinders, control valve, quick coupler, and the attachment bracket. Understand how the spool valve shifts before you loosen a fitting. The manual references the Front Loader Mechanism Workshop Manual (Code No. 9Y021-18210) for details not printed here – that tells you this is a focused supplement, not a general guide. You get the specific LA1403 geometry and the block diagram of the hydraulic circuit.

Servicing: Torque Specs and Tolerances You Can Trust

The “Servicing” chapter holds the troubleshooting charts, servicing specification lists, tightening torque tables, and all the checking, adjusting, disassembling, and assembling procedures. Factory specifications and allowable limits are given in both metric and imperial – I work in foot-pounds, and this manual gives me the conversion. No guesswork on the pivot pin nut torque. If the spec calls for 87 ft·lb, that is what you set your wrench to. The last page of the servicing section covers storage and long-term inactivity.

Does the LA1403 Manual Cover the Complete Disassembly of the Loader Arms?

Yes, but with a caveat. The manual assumes you have the companion mechanism manual for the hydraulic cylinder internal rebuild. It covers the arms, brackets, and linkages in full – removal of the boom, bucket, and cylinder pins, shimming the pivot joints, and replacing the bushings. You get the sequence for supporting the loader on jackstands before you remove the main pivot pin. The bucket level indicator linkage adjustment procedure is on page 73 (approximate – I count pages from the original PDF).

Why Factory OEM Documentation Beats Third-Party Reprints

I have seen a reprint manual that listed the wrong bolt grade for the loader frame-to-tractor mounting brackets. That gets someone killed. This Kubota LA1403 2008 Workshop Manual came from Kubota Corporation’s own printers – KiSC issued 08, 2008 A. It is the same PDF that dealers access from Kubota’s service portal. Aftermarket manuals sometimes reflow the text and drop the DANGER boxes. This one has the original layout, safety alerts in red, and the exact font sizes that signal urgency.

If you work on a Manual Transmission often, you know that the factory manual is the only thing that saves you from splitting the case twice. Same logic applies to a front loader. The Workshop Manual tells you the correct O-ring cross-section for the hydraulic tube fittings – not “use a generic O-ring”. When you are charging a customer’s tractor, you do not have time for that.

Related Manuals You Might Need

• Kubota R420B R520B Workshop Manual – Factory Specs for Wheel Loaders”>Kubota R420B R520B Workshop Manual – Factory Specs for Wheel Loaders
• Kubota Z402-EB 2000 Workshop Manual – Factory Service Specs”>Kubota Z402-EB 2000 Workshop Manual – Factory Service Specs
• Kubota WG752-E2 DF752-E2 2003 Workshop Manual – Factory Specs”>Kubota WG752-E2 DF752-E2 2003 Workshop Manual – Factory Specs

For those rebuilding a Manual Transmission as well, the same principle applies – factory specs or bust.

Does this manual cover the tractor itself, or only the loader attachment?

Only the LA1403 front loader. It assumes you have the tractor’s workshop manual for engine and chassis work.

What safety content is included that aftermarket manuals often omit?

Kubota prints the full three-tier hazard system: DANGER (death or serious injury), WARNING (could result in death), CAUTION (minor or moderate injury). The manual lists specific actions – must cool engine, remove key, disconnect battery negative, hang DO NOT OPERATE tag. Aftermarket publishers often condense or skip the DANGER boxes entirely. This manual also includes IMPORTANT notes for equipment damage prevention and NOTE hints. The safety decal placement diagram is reproduced from the loader itself. If you are replacing a decal, the correct part numbers are referenced in the “General” section.

You need the OEM specs on your bench – not a scanned copy from 2002 that someone faxed to a PDF farm. Access the Factory Manual and torque those pivot bolts to the number that keeps the loader on the tractor.
