Kubota GR1600EC 2005 Service Manual

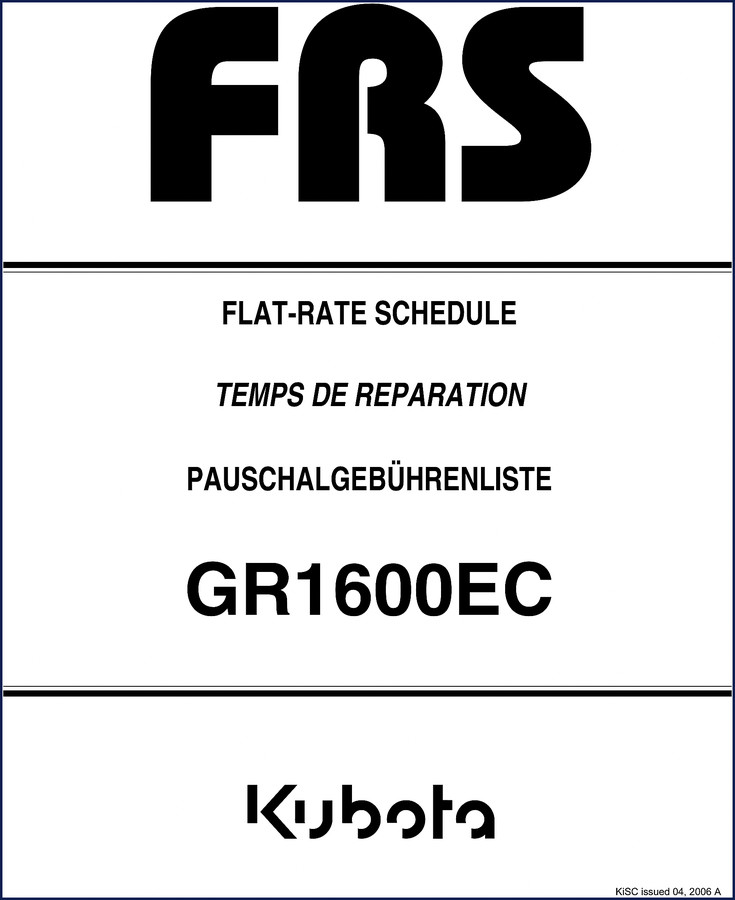

Every time I see a shop mechanic reaching for a third‑party flat‑rate guide, I wince. Those aftermarket numbers are off by 20% sometimes. That’s a loss on warranty claims. You need the real data. The Kubota GR1600EC 2005 Service Manual is that data – straight from the factory floor. 91 pages of OEM‑audited flat‑rate times, exploded illustrations, and job code breakdowns. This isn’t a reprint or a scan of a scan. It’s the original document Kubota issued in 2005.

Engine Maintenance Service Coverage

Start with the GLMa section – MAINTENANCE SERVICE (ENGINE). That’s oil changes, filter intervals, valve adjustments. The manual gives you the standard operation time for each job, not a guess. If you’re billing warranty work, you input the job code number and the clock starts. No arguing with the dealer about whether a lube job should take 0.3 or 0.5 hours. The chart says 0.3. End of discussion.

Does This Manual Cover the H.S.T. Group?

Yes. The GLGg section is dedicated to the H.S.T. (hydrostatic transmission). It lists the disassembly and reassembly times for the whole unit, plus individual repair codes for seals and valves. Compare this to a conventional Manual Transmission – you’ll see why the H.S.T. flat‑rate is higher. If you’re swapping a transmission, you need the job code from this book to get paid properly.

7 Major Systems Detailed in 91 Pages

Look at the table of contents: Engine, Body, Implement, Steering, Front Axle, Transmission, Electrical. Seven system groups with exploded diagrams for each. The parts are numbered in the illustration so you can identify them without disassembly. Combined with the job codes, you can estimate a full engine rebuild down to the last bolt. The Kubota LA243EC 2006 Service Manual – Flat-Rate Schedule for Front Loader covers similar format for loader attachments, so if you run a mixed fleet, grab that too.

Use the Flat-Rate Schedule Correctly

Do not cherry‑pick job codes. The manual explicitly warns: when the service work covers two or more points, select the item that covers the whole range. Don’t add up individual codes – you’ll overcharge or undercharge. The standard operation time includes diagnosis, part retrieval, cleaning, and inspection. It does not include cosmetic painting or external cleaning not specified. Follow the exploded illustrations carefully. The point to service is indicated by a leading line, a marking, or a dotted‑line box. Misidentify it and your time will be wrong.

Kubota GR1600EC 2005 Service Manual: Why OEM Matters

I’ve seen aftermarket “flat‑rate” books that list times for a different engine model and call it close enough. Kubota doesn’t play that. This manual was written for the GR1600EC specifically. The Kubota L210 Z 1100-A Service Manual – 124 Pages of Factory Specs and Kubota M9540, M8540 2008 Service Manual – Flat Rate Schedule are separate – and they should be. Don’t cross‑reference. You need the exact document for the exact serial number range. For a deeper understanding of the mechanical systems referenced, see Manual Transmission basics on Wikipedia – but for flat‑rate, stick to this OEM book.

Cylinder Head Group: OEM Specs You Can Trust

Section GLEe covers the cylinder head group. The flat‑rate time for a cylinder head gasket replacement includes removing the bonnet, cover group, and intake/exhaust components. Every nut and bolt is accounted for. If you’re doing this job at a dealer flat rate, you need the correct code and time. One misstep and you’re losing money. The 91 pages are packed with these details – every group from fuel to electrical to the mower deck is treated the same way.

Is this the full service manual or just flat‑rate?

Flat‑rate schedule with exploded diagrams and job codes.

Can I use this for DIY repairs without shop experience?

The manual is written for professional mechanics with average ability. It assumes you have tools and a flat concrete floor. You’ll get job descriptions and standard times, but not step‑by‑step rebuild instructions. For a beginner, pair this with a genuine service manual for repair procedures. However, the exploded illustrations are very helpful for part identification and understanding what needs to come off in what order. The flat‑rate times also give you a realistic idea of how long a job should take – a good reality check if you’re tackling a major repair on your own.

If you need to bill warranty work accurately or just want to know how long a job should take, access the Factory Manual. It’s the only number that matters.
