Description

Kubota D905-EB, D1005-EB, D1105-EB, V1205-EB, V1305-EB 2007 Technical Manual

If you are wrenching on any of these Kubota diesel engines — Kubota D905-EB, D1005-EB, D1105-EB, V1205-EB, V1305-EB 2007 Technical Manual — you need the numbers that came from the factory, not some reprint from a third party that guessed the torque values. I have seen one too many head gasket failures because somebody used a generic spec from an online forum. This is a 17-page OEM document, issued September 2007, straight from Kubota Industrial Service Center. It is not a full service manual – it is the technical manual with the servicing specifications and tightening torques that you lean on when the job calls for exact measurements. Page 1 lays out engine body specs: oil capacities, compression pressure, valve clearances. You want 412 to 469 psi compression? Page 1 has it. You want valve clearance when cold – 0.016 to 0.045 mm? That is on page 2. Do not trust your memory. Do not trust the internet. Trust this PDF.

Servicing Specifications: The Numbers You Can’t Guess

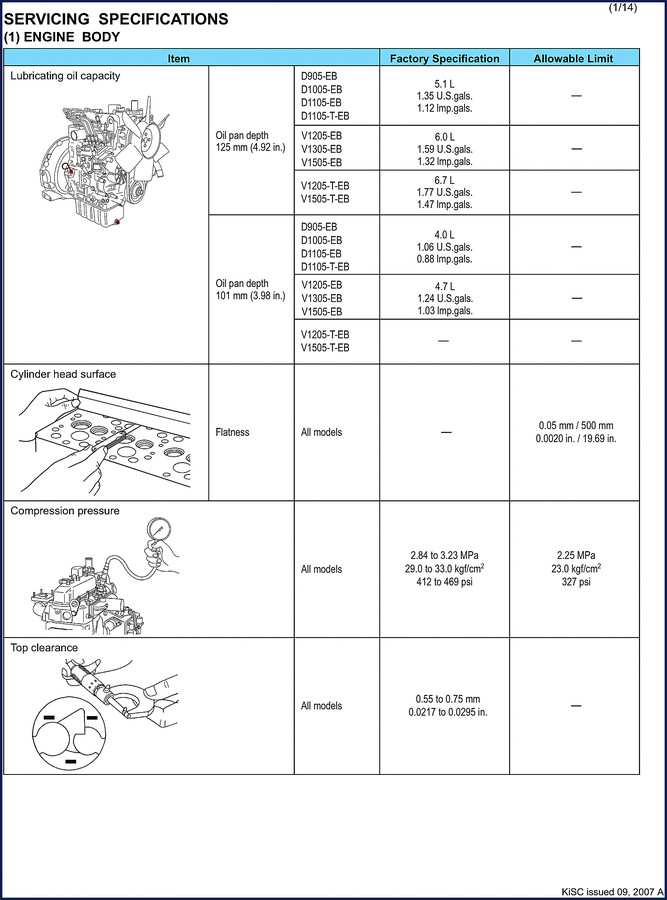

This manual is built around two sections: SERVICING SPECIFICATIONS and TIGHTENING TORQUES. The first section runs 14 pages, covering the engine body in full. You get oil pan capacities for both the shallow and deep pans — 5.1 L for the D905-EB with a 125 mm pan, 4.0 L with the shallow. Cylinder head flatness limit is 0.05 mm over 500 mm. Compression pressure factory spec is 2.84 to 3.23 MPa, with an allowable limit of 2.25 MPa. Top clearance: 0.55 to 0.75 mm. These are not suggestions. These are the values that keep the engine from self-destructing. The manual also lists valve spring free length, setting load, valve stem O.D., and guide I.D. If you are rebuilding a head, you check every one of those. Anything outside allowable limit gets replaced. No exceptions.

Tightening Torques: Follow the Chart or Replace the Head

The second section is the tightening torque chart. I cannot stress this enough — head bolts on these engines have specific sequences and torque values that change depending on whether you are using lubricated or dry threads. The manual does not leave that to interpretation. You get the foot-pounds and the angle degrees. On page 3 of the OCR excerpt you see references to 1.047 rad (60°) and 0.785 rad (45°) for valve seat angles, but the torque section (not fully shown here) will give you the exact numbers for the critical fasteners. A torque wrench is not optional. You snap a bolt on a V1305-EB block because you thought “that feels tight” and the customer is looking at a $2,000 cylinder head replacement. Use the chart.

Valve Clearance: 0.016 to 0.045 mm – No Room for Error

Page 2 of the manual shows valve clearance when cold: 0.016 to 0.045 mm (0.00063 to 0.00177 in). That is a tiny gap. Set it too tight, the valve hangs open and burns. Too loose, you get noise and lost power. The manual also gives you valve recessing specs — intake side 0.05 mm protrusion to 0.25 mm recessing, exhaust side 0 to 0.1 mm recessing. These are the numbers that tell you whether the seat is worn out. Do not guess. You measure with a dial indicator and a straightedge. The aftermarket manuals I have seen often round the clearance to something like “0.02 to 0.05 mm” and skip the allowable limits. This manual gives you both factory spec and allowable limit. That is the difference between a rebuild that lasts and one that comes back in 500 hours.

17 Pages – Is That Enough for a Professional Job?

Some people look at the page count — 17 pages — and think it is too short. Let me be clear: this is a technical manual, not a full workshop service manual. It is the spec sheet you keep in your toolbox or on your tablet when you need the exact numbers. It does not include step-by-step removal procedures, wiring diagrams, or exploded views. What it does include is the OEM-approved servicing specifications and tightening torques that apply across the D905-EB, D1005-EB, D1105-EB, V1205-EB, and V1305-EB models. If you already have the factory service manual for the machine (like a Kubota RTV or tractor), this PDF fills the gap by giving you the latest 2007 specifications. For a shop that does engine overhauls regularly, this 17-page document is worth its weight in saved comebacks.

OEM Source: Why Third-Party Reprints Cost You Money

Look at the OCR excerpt from this manual. The layout is dense, the language is Japanese-English translation that is direct. “Item Factory Specification Allowable Limit” — that is the table header. There is no fluff. The data came from Kubota’s engineering department, not from a guy copying a copy of a copy. I have used third-party specs that claimed to be “from the factory” and found they were off by 0.2 mm on valve guide clearance. That is enough to wipe out a guide in 100 hours. This PDF is a scan of the original KISC-issued document. You can see the page numbers, the revision letter “A” dated September 2007. That is authenticity you can stake your reputation on. When a customer asks why you used that torque value, you show them the factory page. Period.

If you work on other Kubota equipment, check out the related manuals: Kubota STV32 STV36 STV40 2006 Technical Manual – Flat Rate Schedule”>Kubota STV32, STV36, STV40 2006 Technical Manual. For utility vehicles, the Kubota RTV900G, RTV900W, RTV900R, RTV900W EC, RTV900 EC 2006 Technical Manual”>Kubota RTV900 series manual has its own specs. And for compact tractors, the Kubota B21, B2320, B2620, B2920 Technical Manual – 292-Page Factory Service Manu”>B21–B2920 service manual covers hydraulics and drivetrain. For external references, if you need to understand Manual Transmission”>manual transmission basics for a separate project, Wikipedia has a good overview; same for the Manual Transmission”>manual transmission article on gear ratios. But for these Kubota diesels, stick to OEM data.

FAQ

Does this manual cover the V1505-EB or V1505-T-EB?

No. It covers D905-EB, D1005-EB, D1105-EB, V1205-EB, and V1305-EB only.

Can I use this manual to perform a full engine rebuild?

You can use it for the servicing specs and torque values, but it does not include disassembly procedures or exploded diagrams. It is a technical manual, not a service manual. You need a separate workshop manual for the machine (e.g., tractor or generator) to get the removal and installation steps. However, the specs in this manual are the ones you check during a rebuild — compression, valve clearance, spring tension, oil capacities, and torque values. If you have the service manual already, this PDF fills the gap for the latest 2007 spec updates.

What tightening torques are listed in the manual?

The manual contains a TIGHTENING TORQUES section. The exact values are not reproduced in the preview, but they include cylinder head bolts, connecting rod nuts, main bearing cap bolts, and other engine critical fasteners. This is the data from the factory, so you can trust it matches the actual Kubota engineering release.

Is this a PDF format?

Yes. You will receive a digital PDF file. It is a scanned copy of the original 17-page printed technical manual, with clear text and tables.

Stop renting a stall to a machine that’s down while you search forums for a torque spec. Get the factory numbers in your hand. Access the Factory Manual now and keep it in your shop folder. Your cylinder head gasket will thank you.
