Kubota D1503-M-E2B, D1703-M-E2B, D1803-M-E2B, V2003-M-E2B, V2003-M-T-E2B Technical Manual

You have a Kubota engine on the stand, maybe from a D1503-M-E2B or a V2003-M-T-E2B. You need compression pressure specs, valve clearance numbers, and torque values that won’t leave a head gasket weeping. A generic repair manual from a third party will give you ballpark numbers that don’t match the factory tolerances. This 17-page Kubota D1503-M-E2B, D1703-M-E2B, D1803-M-E2B, V2003-M-E2B, V2003-M-T-E2B Technical Manual is the OEM document printed from Kubota’s own system. The table of contents lists two sections: Servicing Specifications and Tightening Torques. That is the entire document. No extra pages, no generic diagrams – just the data you need when the engine is torn down.

SERVICING SPECIFICATIONS – Engine Body Data

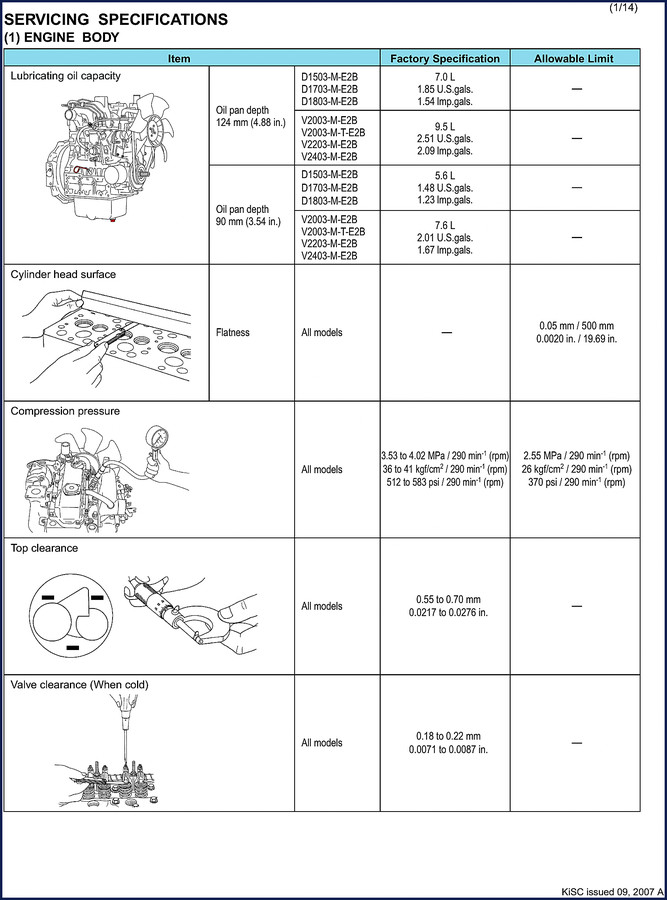

On page 1 you get compression pressure at 290 rpm: factory spec is 3.53 to 4.02 MPa (512 to 583 psi) for all models. Allowable limit is 2.55 MPa (370 psi). If you see numbers below that, you are looking at rings or valves. The same page lists top clearance, valve clearance when cold, and oil pan depth. The D1503-M-E2B uses a 124 mm (4.88 in.) deep oil pan; other models may have a 90 mm pan. Lubricating oil capacity varies: D1503-M-E2B holds 7.0 L (1.85 U.S. gal), while V2003-M-E2B holds 9.5 L (2.51 U.S. gal). These specs are per model, not a one-size-fits-all guess.

TIGHTENING TORQUES – Getting It Right

Torque values for head bolts, main bearings, and connecting rods are often what separate a running engine from a parts-destroyer. The Tightening Torques section (second half of the manual) gives you the numbers in N·m, kgf·m, and lbf·ft. Because I know the drill: you torque a head bolt to 117.6 N·m (86.7 lbf·ft) on these engines. If you use an aftermarket spec that is 5% off, you risk pulling threads or losing clamp load. Page 2 shows the valve spring setting load – 117.6 N at 35.0 mm for intake springs, 100.0 N at 35.0 mm for exhaust. That is factory data, not a reprint from a third party.

Compression Pressure and Valve Clearance

Compression pressure for the D1703-M-E2B and D1803-M-E2B is the same range as the other models: 3.53–4.02 MPa at 290 rpm. Valve clearance when cold: intake 0.18–0.22 mm (0.0071–0.0087 in.), exhaust 0.55–0.70 mm (0.0217–0.0276 in.). If you are adjusting valves without these numbers, you are guessing. The manual also gives the flatness of the cylinder head surface – 0.05 mm over 500 mm (0.0020 in. over 19.69 in.). A warped head beyond that will leak. I have seen techs skip this check and then wonder why the head gasket fails.

Oil Pan Depth and Fluid Capacities

Engine oil capacity depends on the oil pan depth. The D1503-M-E2B uses a deep pan (124 mm), capacity 7.0 L. The V2003-M-T-E2B uses a shallow pan (90 mm), capacity 5.6 L (1.48 U.S. gal). If you fill a V2003-T with 7 L, you will overfill and risk aeration. Page 1 lists each model separately. When pulling the engine from a machine with a Manual Transmission, these oil pan measurements matter for clearance.

3 Reasons to Trust OEM over Aftermarket

First, the specs are from Kubota’s own KiSC database – not photocopied from an older manual with typos. Second, the tolerances are production-line numbers, not “rebuild” approximations. Third, the tightening torque table includes angles like 60° and 45° for fasteners that require angle control. Aftermarket manuals often skip the angle spec entirely. This OEM document includes the exact valve timing diagram (page 3): intake opens 12° before TDC, exhaust closes 8° after TDC. That kind of timing data is critical when setting valve lash on a V2003-M-T-E2B with a turbo.

Beyond the engine body, the servicing specifications cover valve stem O.D., valve guide I.D., rocker arm shaft clearance, and tappet guide clearance. On page 2, the valve spring free length A is 41.2 mm (1.6220 in.), tilt limit is 1.0 mm. Those numbers matter if you are reusing old springs. One valve spring that’s 0.5 mm short will cause a miss. The manual also gives the seat width for intake and exhaust: 2.12 mm (0.0835 in.) factory spec. Aftermarket manuals often say “check for wear” – no number.

If you need to reference a related engine platform, check the Kubota STV32 STV36 ST40 2006 Technical Manual – Flat Rate Schedule for labor times, or the Kubota RTV900G, RTV900W, RTV900R, RTV900W EC, RTV900 EC 2006 Technical Manual for the utility vehicle versions. For a full chassis service manual, the Kubota B21, B2320, B2620, B2920 Technical Manual – 292-Page Factory Service Manu covers transmission and hydraulic systems. And if you are rebuilding a transmission, understand the difference between this engine manual and a Manual Transmission service manual – the torque specs are not interchangeable.

Does This Manual Cover the Fuel System?

No. This manual is strictly engine mechanical servicing specifications and tightening torques. Fuel injection pump timing and governor adjustments are not included. You will need a separate fuel system manual for that. But for head gasket replacement, valve adjustment, oil pan swap, or compression testing, this is the document.

What models are covered in this manual?

D1503-M-E2B, D1703-M-E2B, D1803-M-E2B, V2003-M-E2B, V2003-M-T-E2B.

How many pages is it?

17 pages.

Does it include wiring diagrams?

This manual focuses on engine mechanical servicing specifications and tightening torques. It does not include electrical wiring diagrams or hydraulic system diagrams. For those, you would need the full workshop manual covering the entire machine. The 17 pages here are dedicated to precise factory specs for engine body, valve train, oil pan, lubrication, and torque values. If you are doing a complete overhaul, you will want the full manual. But for setting compression, adjusting valves, or torquing head bolts, this is the document you want.

Why should I trust this over an aftermarket manual?

OEM data. Aftermarket reprints skip specs and often have wrong torque numbers.

Every time I grab a spec sheet off the shelf, I check the source. This is a Kubota factory document – 17 pages, no reprint, no aftermarket nonsense. If you are working on any of these five engines and you need the real numbers, access the factory manual.
