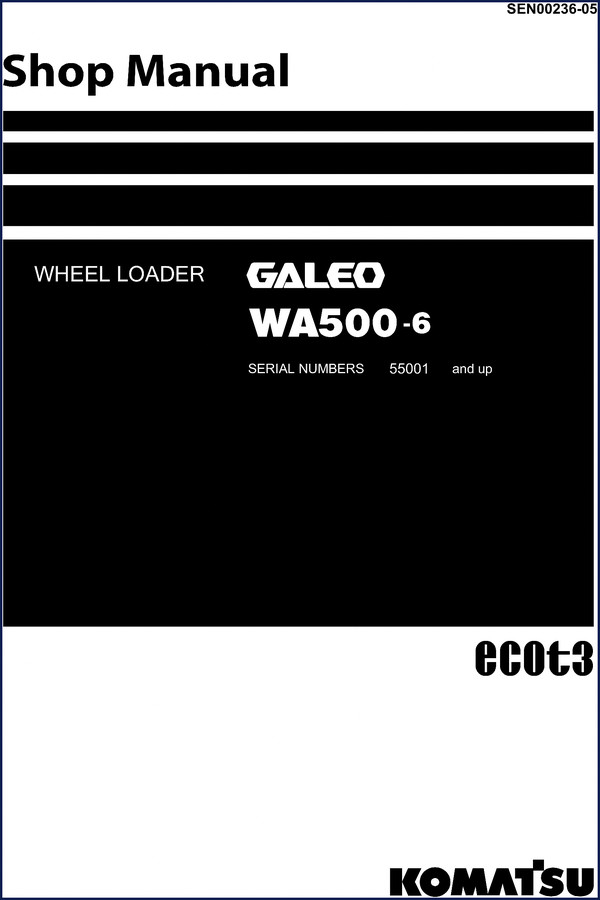

Komatsu WA500 Workshop Manual

If you’ve ever had a loader down because you guessed at a hydraulic relief valve setting or used aftermarket torque values on a differential bolt, you know the cost. That hour of head-scratching is billable time you don’t get back. The Komatsu WA500 Workshop Manual is the only document that gets that charge pressure right because it came from the engineers who built the machine. 1735 pages of factory data, not a third-party rehash. I’ve torqued enough head bolts to know that when the manual says 89 ft-lbs, you use 89 ft-lbs—not the internet average.

Power Train System Diagrams: Where the Specs Live

Open to the Power Train section (Part 1 and Part 2). You’ll see system diagrams for the torque converter, transmission, ECMV, and the limited slip differential. Each valve—main relief, torque converter relief, lubrication relief—has its own page with cross-section views and adjustment procedures. Need the charge pressure for the torque converter regulator valve? It’s in the Standard Value Table on page 73 of the PDF bookmark (Testing and Adjusting). That number is specific to the WA500-6, serial numbers 55001 and up. Don’t use a generic Komatsu spec.

Hydraulic System Piping Diagrams and Valve Adjustments

Hydraulic System Part 1 and Part 2 cover the CLSS, work equipment control valve, and cooling fan motor. The piping diagrams show every hose route and fitting. The manual includes the function and operation of each valve in the control bank. If you’re swapping a steering pump or rebuilding the joystick steering linkage, the exploded views tell you the exact order of disassembly. The manual also lists the tools required for testing and adjusting—stuff like flow meters and pressure gauges with specific ranges.

Testing and Adjusting Chapter: Tools and Procedures

Chapter 30 — Testing and Adjusting (four parts) covers measuring engine speed, exhaust gas color, compression pressure, blow-by pressure, and fuel system diagnostics. There’s a section on releasing residual pressure in the fuel system before you crack a line. That’s the kind of detail that keeps you from getting a diesel shower. Each test procedure specifies the tool by Komatsu part number or generic equivalent. The valve clearance adjustment procedure tells you the exact sequence and cold clearances for the SA6D125E engine. No guesswork.

Standard Value Table: Why Factory Numbers Matter

Section 20 is the Standard Service Value Table. It’s split into engine and chassis. This is where you find the acceptable ranges for everything: oil pressure, boost pressure, transmission clutch clearances, brake accumulator pre-charge. I’ve seen guys reuse a torque converter after measuring end play within spec—only because they had the factory table. Without it, you’re scrapping parts that are still good or running parts that are already junk. The conversion table at the back helps if you work in both imperial and metric units.

Who Needs This 1735-Page Workshop Manual?

This manual is for anyone touching a WA500-6 wheel loader: shop owners who need liability-proof documentation, mobile techs who diagnose on-site, and DIY farmers who maintain their own fleet. The troubleshooting section (40) decodes every failure code by component—transmission controller, machine monitor, engine starting circuit. If you’ve got a “spn 5246 fmi 14” code on a WA500-6, the manual walks you through the circuit check without swapping sensors randomly. It’s also the reference you need for Komatsu WA65-5 WA70-5 WA80-5 2005 Workshop Manual”>smaller wheel loaders in the same family, or a Komatsu WH609-1E0 WH613-1E0 WH713-1E0 WH714H-1E0 WH716-1E0 Workshop Manual”>WH series backhoe if you run mixed Komatsu equipment. The Komatsu PW95R-2 Workshop Manual – 520 Pages of Factory Specs”>PW95R-2 excavator manual follows the same structure, so learning this one translates.

Foreword and Safety: Not Fluff

The foreword explains how the manual is organized—each section has a Form Number for updates. More important: the safety notice covers handling electrical equipment and hydraulic components, push-pull coupler disconnect procedures, and precautions when carrying out operations. That section alone is worth reading before you start a major repair. The standard tightening torque table (plain bolts, nuts, flanged fasteners) applies across the whole machine. Use it.

How does this manual handle wiring diagrams?

The Electrical System sections (Parts 1-3) include full circuit diagrams for the machine monitor, transmission controller, engine starting/stopping, preheating, parking brake, lamps, horn, wiper, and KOMTRAX terminal. Each circuit has a separate page with wire colors and connector pin numbers. The manual also explains the electric wire code—so you can trace a brown/white stripe wire back to its source. About 300 pages of electrical diagnosis content alone.

Can I use this manual for the WA500-5?

No. The WA500-6 has a different transmission control system (ECMV) and updated hydraulics. The -5 manual has different torque specs and testing procedures.

Factory documentation from Komatsu, published as a direct scan of the OEM binder. No reprints or third-party compilations. If you maintain heavy equipment, you know the difference between a manual and a photocopy of a manual. This is the real thing. Manual Transmission”>Manual transmission basics apply to the WA500’s powershift, but the specific clutch clearances and relief pressures come from this book. For a broader view of the industry, check the Automotive Industry Overview”>automotive industry overview—but when you need to rebuild a torque converter, you need this manual. Access the Factory Manual and get back to turning wrenches with actual data.
