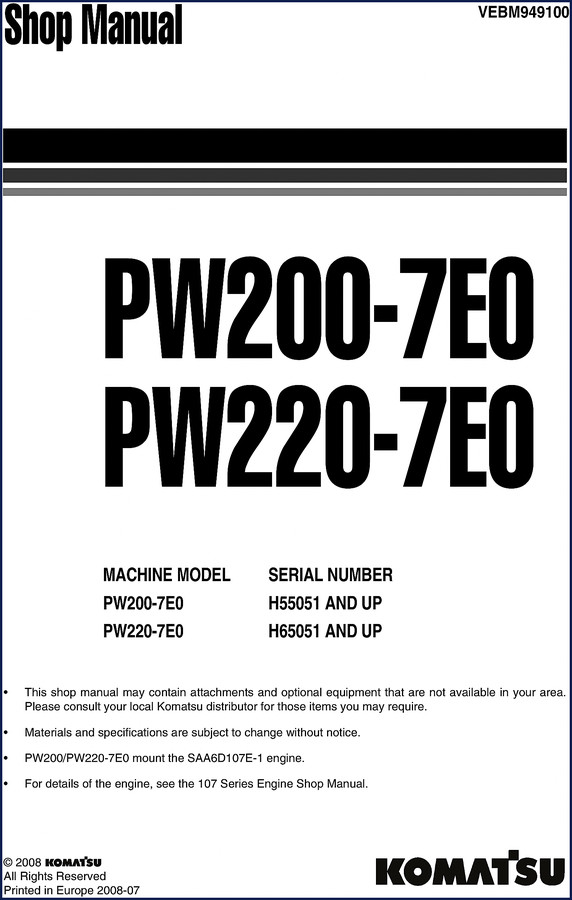

Komatsu PW200-7E0, PW220-7E0 2008 Workshop Manual – 1242 Pages of Factory Specs

I’ve seen too many guys walk into my shop with a binder of aftermarket printouts and a stripped bolt to prove it. The Komatsu PW200-7E0 and PW220-7E0 are 25-ton class machines with hydraulic systems that need the right numbers. You don’t have to guess when you have the factory workshop manual from 2008 — 1242 pages of the actual OEM data Komatsu engineers wrote for their technicians. Every torque spec, every pressure check, every electrical connector pinout is there. No omissions. No “refer to dealer” nonsense. This is what I use when a PW200-7E0 rolls into my bay with a transmission slip or a CLSS error code.

Every technician knows that aftermarket manuals skip chapters. Cutting costs means cutting content. Not here. Inside this PDF you get the full Foreword with safety notices, general precautions, and preparations for work — the kind of stuff that keeps your fingers attached. Then you hit the Standard tightening torque tables on page 00-21. Those numbers cover bolts, nuts, hose fittings, split flange bolts, and even the 107 engine series torque specs for eye joints and tapered screws. I’ve caught three separate wrecks on customer machines because aftermarket books gave the wrong ft-lb for a swing motor mounting bolt. This manual doesn’t make that mistake.

Standard Tightening Torque: Why You Need Page 00-21

The Foreword chapter lays out exactly what you need before you crack a wrench. Coating materials, hoisting instructions, electric wire codes by thickness and color. The torque tables are separated by component: standard bolts and nuts, hose nuts, split flange bolts, taper seal and face seal hose fittings, and a full section for the 107 engine series. If you’re rebuilding the SAA6D107E-1 engine (which these models mount), you also reference the separate 107 Series Engine Shop Manual, but the torque specs here are the ones Komatsu certified for the chassis installation. That’s page 00-21 to 00-25. I’ve used these numbers on a front axle pinion nut and the transmission coupling — they have never failed.

Does This Manual Cover the SAA6D107E-1 Engine?

It covers everything that attaches to it and the engine control system. The Electrical system chapter details the engine controller (CN-CE01, CN-CE02, CN-CE03), the machine control system diagram, and functions like one-touch power maximizing, auto-deceleration, and auto-warm-up. You get sensor data for coolant temperature, oil pressure, rotation speed, boost pressure, and water-in-fuel detection. The section on “Testing and Adjusting” (chapter 20) splits into multiple troubleshooting branches: electrical system (E-Mode), hydraulic and mechanical system (H-Mode), and error checking without monitor codes. That’s seven distinct troubleshooting sections — enough to burn through any driveability complaint. For the engine itself, you’ll want the companion engine manual, but the workshop manual gives you the integration specs for engine-to-pump matching.

7 Distinct Troubleshooting Sections

Chapter 20 isn’t just a single list of codes. It’s broken down into: Testing and Adjusting (page 20-1), Troubleshooting (page 20-301), Troubleshooting when service code “Electrical system” and failure code “Mechanical system” are indicated (page 20-401), Troubleshooting of electrical system (E-Mode) (page 20-701), Troubleshooting of electrical system (Error checking of items without monitor codes) (page 20-801), and Troubleshooting of hydraulic and mechanical system (H-Mode) (page 20-901). Each branch targets a specific symptom pattern. I’ve used the E-Mode section to chase a phantom PPC valve issue that turned out to be a bad CN-CE01 connector pin. The H-Mode section has a flow chart for swing motor relief valve pressure that saved me two hours of guesswork.

Hydraulic Circuit Diagrams: Read Them Before You Disconnect Anything

The manual includes full hydraulic circuit diagrams and equipment layout drawings. You get the hydraulic pump (HPV95+95), LS valve, PC valve, pilot pressure control (PPC) system, control valve, CLSS with variable pressure compensation valve, centre swivel joint, travel PPC pedal, and work equipment PPC valve. Every hose size and port location is dimensioned. I always pull up the hydraulic circuit diagram on my tablet before pulling a line — one misrouted hose can cost a day of bleeding. The manual also covers the swing motor relief valve operation, travel motor operation, and clutch control circuit. For the transmission and axles, it diagrams the front and rear axle, suspension lock cylinder circuit, and axle oscillation limits. If you’re rebuilding a travel motor, the “Operation of travel motor” section gives you the internal valve sequence. That’s the kind of detail aftermarket books leave out.

CLSS System: Variable Pressure Compensation Valve Explained

The Closed-Center Load Sensing System (CLSS) is what makes these excavators smooth. The manual devotes a full subsection to the basic principle, main relief valve, and variable pressure compensation valve. It explains how the pump adjusts flow based on load. If you’re chasing a sluggish boom or erratic swing, you need to understand the PC valve and LS valve interaction. The manual gives you the test points and adjustment procedures in the Testing and Adjusting chapter. I’ve used this section to set the pressure compensator on a PW220-7E0 that had no fine control — took the spec from page 20-101 and had it dialed in under an hour.

OEM Print vs Aftermarket – Factory Original Data Only

I don’t trust aftermarket manuals for anything beyond a parts lookup. They reprint outdated numbers, they skip the safety warnings, and they often leave out the torque tables that keep a machine from leaking. This workshop manual is a direct PDF of Komatsu’s own publication (part number VEBM949100). It includes the original 2008 copyright, the list of revised pages, and the exact same layout a dealer technician would have in paper form. AutoRepairManuals sources directly from factory archives — no scanning from a third-party copy, no missing pages. You get the full 1242 pages, searchable, printable, and organized by the same section numbering system Komatsu uses in their training classes. I can open the “Structure, Function and Maintenance Standard” chapter (10-1) and find the swing circle wear limits in seconds. That’s real value.

Frequently Asked Questions

What models does this manual cover?

It covers the Komatsu PW200-7E0 (serial H55051 and up) and PW220-7E0 (serial H65051 and up).

How many pages and what sections are included?

1242 pages. Sections: Foreword (safety, tightening torques), General (specs, dimensions, working ranges), Structure/Function/Maintenance Standard (engine parts, radiator, power train, swing, undercarriage, transmission, axles, brakes, steering, hydraulics, electrical), Testing and Adjusting (with multiple troubleshooting subsections for electrical and hydraulic systems), Disassembly and Assembly, and Other. The manual is organized for a technician to find the procedure fast — each chapter has its own page prefix (00, 01, 10, 20, 30, 90).

Does this include wiring diagrams?

Yes. Chapter 20 includes troubleshooting for electrical systems with full wiring diagrams. The Electrical system chapter covers the engine controller (CN-CE01, CN-CE02, CN-CE03), sensor locations (coolant temperature, oil pressure, rotation, boost pressure, water-in-fuel, oil level, coolant level, hydraulic oil temperature, fuel level), and the machine monitor system with keypad layout and LCD adjustment switches. There’s also an overload warning device outline.

Is this a reprint or a copy?

It’s the original OEM PDF from Komatsu’s own 2008 press. AutoRepairManuals sources directly from factory archives. You get the exact same content a dealer technician would have on their workbench — no missing pages, no blurry scans.

Look, you’re already spending the money on the machine. Spend a little more to get the right information. If you need manuals for other Komatsu wheeled models, check out the Komatsu WA65-5 WA70-5 WA80-5 2005 Workshop Manual”> or the Komatsu WH609-1E0 WH613-1E0 WH713-1E0 WH714H-1E0 WH716-1E0 Workshop Manual”>. For smaller excavators, the Komatsu PW95R-2 Workshop Manual – 520 Pages of Factory Specs”> covers the chassis. And if you need to understand the theory behind the transmissions in this manual, read up on Manual Transmission”> or Manual Transmission”> on Wikipedia. But for the PW200-7E0 and PW220-7E0, this one manual is all you need. Access the Factory Manual from AutoRepairManuals and keep it on your tablet in the bay.
