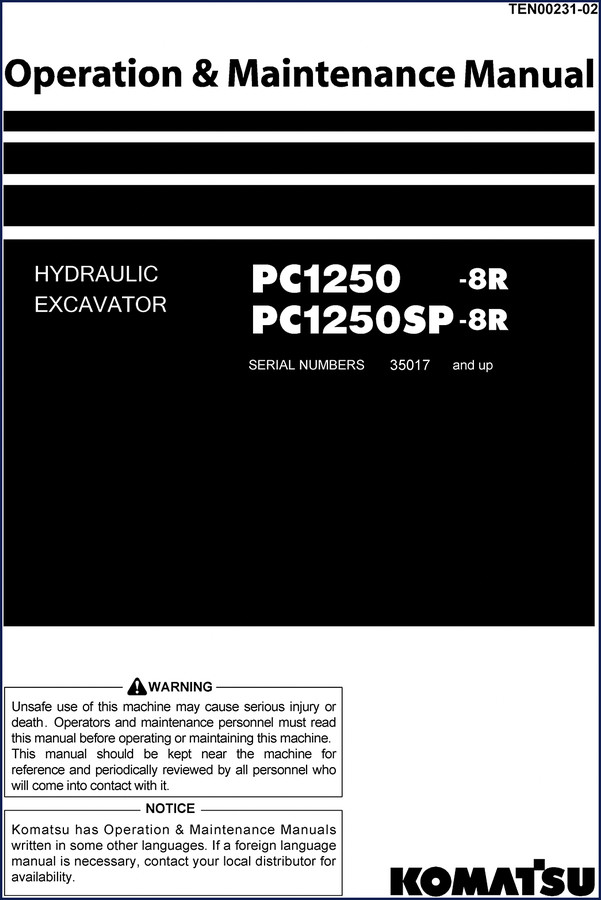

Komatsu PC1250-8R, PC1250SP-8R Operators Manual – 387 Pages of Factory Specs

Description

Let me tell you something I’ve learned after torquing head bolts for 28 years: aftermarket manuals are the reason I spend Saturdays chasing oil leaks. When you’ve got a 125-ton excavator in your bay and the customer is breathing down your neck, guessing on a torque spec or a fluid capacity isn’t an option. That’s where the Komatsu PC1250-8R, PC1250SP-8R Operators Manual comes in. It’s the same book Komatsu ships with the machine – not a scan, not a reprint, not a third-party interpretation. 387 pages of factory data, and I’ve used it on machines with serial numbers starting at 35017. If you’re maintaining one of these big yellow beasts, this is the only reference you should trust.

38 Safety Subsections – Not a Suggestion

Safety is the first thing I teach every green kid who walks into my shop. This manual dedicates an entire section to safety labels, fire prevention, getting on and off the machine, and even what to do if you run the engine inside a building. The table of contents lists 38 separate safety subheadings, including “Precautions for Operation” and “Precautions for Maintenance.” Flip to the safety labels location page, and you’ll see exactly where the warnings are glued to the machine. For a 125-ton excavator, one wrong move with the swing brake or the work equipment means a $30,000 repair or worse. This manual walks you through each precaution without assuming you know the machine.

Torque Specs: Tightening Torque List

I’ve seen more stripped threads on aftermarket data than I care to count. The torque specs in this manual come straight from Komatsu’s engineering. The “Tightening Torque List” in the Maintenance section gives you foot-pounds for every critical fastener – from the track adjuster to the engine mounting bolts. You won’t find a general “tighten securely” cop-out. It lists specific values because Komatsu knows that a loose swing drive housing will cost you a full day of downtime. Use Imperial units? So do I. The manual includes both SI and imperial conversions on the spec pages, but the critical torque values are given in N·m, and you can convert or look up the equivalent ft-lb from the factory chart.

Maintenance Schedule – 10 Hours to 8000 Hours

One of the biggest mistakes I see is ignoring the break-in inspections. This manual includes an “Initial 100 Hours” and “Initial 500 Hours” maintenance procedure that most aftermarket guides skip entirely. Then it goes into the regular intervals: every 10 hours, 100, 250, 500, 1000, 2000, 4000, 5000, and 8000 hours. Each subsection tells you exactly which grease points, which filters, and which fluid levels to check. For the PC1250SP-8R, the hydraulic system holds a lot of oil, and the manual specifies the exact grade and capacity from the “Recommended Fuel, Coolant, and Lubricant” section. I’ve had customers try to “save money” by using 10W instead of the recommended 30W hydraulic oil – that ends up costing them a pump rebuild. Stick to the factory schedule.

Engine: SAA6D170E-3 – What the Manual Tells You

The heart of this machine is the Komatsu SAA6D170E-3 diesel engine. The Operators Manual covers starting the engine, after-start procedures, and stopping the engine with the correct warm-up and cool-down steps. It also includes troubleshooting for running out of fuel – something that happens more often than you’d think on a jobsite. For the engine, you get the engine serial number location, the service meter location, and the proper idle speed adjustments. This is not a repair manual, but it’s the operating bible. If you’ve got a fuel system issue or a warning light on the monitor, the “Troubles and Actions” section on page 73 tells you what to look at first. Page 73 is where I send my guys when the discharge battery or “other trouble” shows up.

Why OEM Documentation Beats Aftermarket

I’ve bought aftermarket manuals that had the wrong fuel capacity for the PC1250-8R by 20 gallons. Not exaggerating. This manual came from Komatsu’s own publishing, with part numbers for safety critical parts like lift cylinder hoses and O-rings. The “Safety Critical Parts List” is printed in the manual – something no third-party reprint will include. When you’re dealing with a machine that can lift 70 tons, you don’t want a “close enough” spec. OEM means the exact same content that Komatsu puts in the magazine box on the operator’s seat. I keep a copy in my shop for reference when we’re doing annual inspections. For related Komatsu manuals, check out the Komatsu WH609-1E0 – WH716-1E0 Operators Manual | 272 Pages OEM for wheel loaders, or the Komatsu WD900-3 2004 Operators Manual – Factory OEM Specs for dozer variants. If you work on backhoes, the Komatsu WB146-5 WB146PS-5 2006 Operators Manual – OEM Safety & Maintenance is a solid reference too.

You might wonder how to use this manual if you’re replacing a transmission component on a similar machine. The external resource on Manual Transmission provides general background, but for Komatsu-specific transmissions, stick to the factory data. Another good external reference is the Manual Transmission article on gearbox design, but never substitute that for the actual machine specs.

Who Needs This Manual?

If you’re a DIY operator or a fleet technician, this manual is your daily reference. Beginners often skip the “Before Starting Engine” checklist – that’s where the manual saves you from a hydraulic lock. Professional mechanics will use the “Tightening Torque Specifications” table to avoid over-torquing the track adjuster cap. Workshop owners should have a copy in the service office so every tech reads the “Precautions for Maintenance” before touching the high-pressure lines. The 387 pages are organized by operation first, then maintenance, then specs – exactly the order you need when you’re standing next to the machine with a wrench in your hand.

FAQ – Four Questions I Get Asked Most

Does this manual cover the PC1250-8R and PC1250SP-8R only?

Yes. It’s specifically for those two models with serial numbers from 35017 and up. Do not use it for the PC1250-7 or earlier series – different engine and hydraulic specs.

Can I use this manual for repair work like cylinder rebuilds?

It’s an operators manual, not a service manual. It covers daily inspection, maintenance schedules, and safe operation. For major overhauls you’ll need the shop manual. But it does include torque specs for critical fasteners and fluid capacities that you absolutely need.

What format is the access?

PDF with 387 pages, full OCR and bookmarked table of contents. You can print sections, but I recommend keeping it on a tablet in the cab – same place Komatsu says to store the printed manual (left side magazine box).

Are the torque values in Imperial or metric?

Komatsu gives specifications in SI units (N·m). Page 73 shows the tightening torque list. I always convert to ft-lb using the chart on that page – it’s accurate to the factory values. No rounding errors.

Bottom line: if you’ve got a PC1250-8R or PC1250SP-8R on your site or in your shop, this manual is the difference between doing the job right and bleeding money on do-overs. Access the Factory Manual now and keep it on your workbench – you’ll thank yourself the first time a warning light comes on.
