Komatsu LW250-5 Service Manual – What the Factory Actually Gives the Dealer

If you work on heavy equipment, you know the feeling: you crack open a PDF you found online and the torque spec for the outrigger mounting bolts doesn’t match the ones you pulled. The wiring diagram looks like someone traced it with a crayon. That’s what happens when you buy a third-party rehash instead of the real OEM file. This is the Komatsu LW250-5 Service Manual – 455 pages of the exact same document Komatsu ships with the crane. Not a transcription. Not a cleaned-up version. A direct scan of the factory print. Serial numbers LW250 (H-Outrigger)-53025 and up, LW250 (X-Outrigger)-50135. If your crane falls inside that range, this is the manual you need on the bench.

You’re looking at a machine that can lift 25 tons. Guessing on a bolt torque or skipping a safety check can kill someone. That’s why the first twenty pages of this manual are dedicated to safety warnings, California Proposition 65 information, and proper operator training requirements. Page 0-2 starts the SAFETY INFORMATION section. Page 1-1 continues with SAFETY. Every page after that builds on those fundamentals. The manual treats operation and maintenance as two sides of the same coin – you can’t do one without understanding the other.

Need the charge pressure for the transmission? The procedure is in the transmission section. Want the correct lubricant for the final drives? It’s listed in the capacity table. Every spec comes straight from Komatsu’s engineering department. I’ve been turning wrenches for 28 years, and I can tell you the difference between OEM data and aftermarket speculation shows up the first time you try to set valve lash or pull a hydraulic pump. This manual eliminates that guesswork.

What the LW250-5 Service Manual Covers

The manual is an Operation & Maintenance Manual – that means you get both the operator’s walk‑around checks and the detailed maintenance procedures. It starts with the foreword (page 2), which tells you to keep the manual near the machine and to read it thoroughly before operating. Then it moves into safety, controls, pre‑operation checks, and daily inspections. After that come the major systems: engine, transmission, hydraulic system, electrical system, outriggers, boom, and cab. Each system has its own section with removal, installation, adjustment, and inspection steps. Torque values are given in foot‑pounds where applicable. The manual also includes the machine’s serial number breakdown so you can confirm fitment before you start.

For a crane that’s been in service for years, having the factory lubrication chart alone saves you from cross‑referencing three different aftermarket sources. Grease points, oil change intervals, filter part numbers – it’s all in one place.

Serial Number Verification – Why It Matters

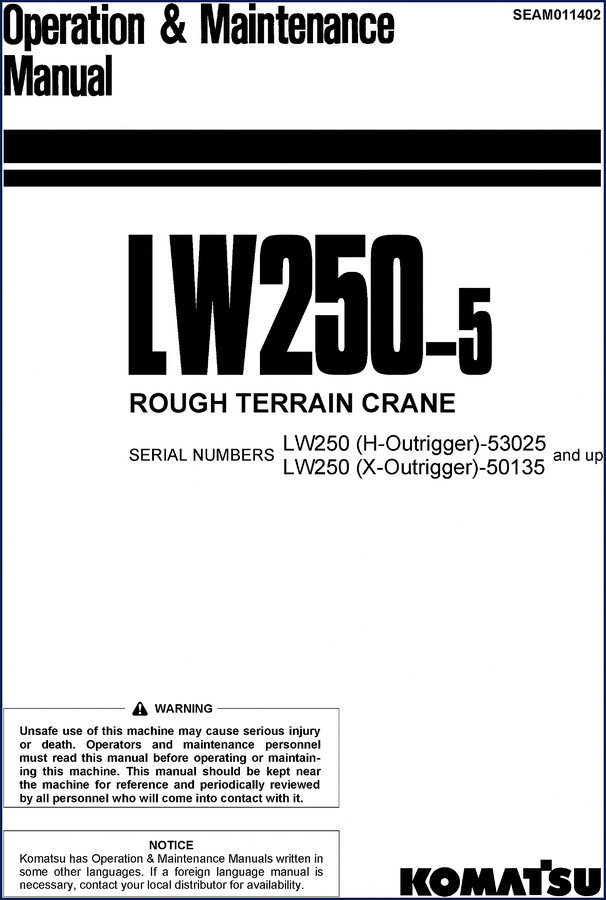

Komatsu uses serial number breaks to mark design changes. The LW250-5 had two major outrigger variants: H‑type and X‑type. The manual covers both, but you need to know which one you have. The front cover lists the starting serial numbers – LW250 (H-Outrigger)-53025 and LW250 (X-Outrigger)-50135. If your machine falls after those numbers, this manual matches. If it’s earlier, you may need a supplement. Don’t assume compatibility – check your machine’s plate before you buy. The manual’s introduction explains how to read the serial number and what changes were made at each break.

3 Reasons to Choose OEM Documentation Over Aftermarket

First: accuracy. Aftermarket manuals often reword Komatsu’s procedures or omit steps they consider “obvious.” Komatsu doesn’t omit anything. Every warning, every note, every torque callout is there. Second: liability. If you follow an aftermarket manual and a bolt fails, you own that mistake. Follow the OEM manual and you have documented compliance. Third: resale value. When you sell the crane, the buyer expects the original manual. Handing over a third‑party print doesn’t carry the same weight.

Audience Fit – Who Gets the Most Out of This Manual

This manual is for the owner‑operator who does their own maintenance, the heavy‑duty mechanic in a rental fleet, and the shop that sees a Komatsu crane once a week and needs to get it right the first time. If you’re a home‑garage enthusiast who’s never worked on a rough‑terrain crane, you can still use this manual – but you should respect the weight and danger of the machine. The manual assumes you have basic mechanical skills and understand shop safety. It does not assume you’re a Komatsu specialist. Every step is written clearly enough for a journeyman mechanic to follow without calling the dealer. Beginners should read the entire safety section and have an experienced tech supervise the first few jobs.

Source Validity – Why This Isn’t a Photocopy or Reprint

The file you access from AutoRepairManuals is a direct scan of the original Komatsu publication SEAM011402. It’s not a retype. It’s not a subset. It’s the full 455 pages, including the cover, foreword, safety warnings, and all technical sections. We don’t clean up watermarks or remove page numbers. What you see is what Komatsu printed. Compare that to the “OEM-style” manuals sold on auction sites – those are often scans of scans, missing pages, or stitched together from multiple sources. We don’t do that. This is the one you want.

If you’re working on the transmission overhaul, general theory on a Manual Transmission might help you understand gear ratios, but for this crane you need the factory clearance specs and shift fork adjustments – they’re in this manual. Same goes for Manual Transmission knowledge if you’re doing a clutch replacement. The theory is universal; the numbers are specific.

Related manuals you should consider for your shop library:

• Komatsu LW250-5 1997 Workshop Manual (if you need a heavier workshop focus)
• DEMAG KOMATSU Hydraulic Mining Shovels Parts & Service
• Komatsu WA430-6 Service Manual – 306-Page OEM Shop Manual

Frequently Asked Questions

Does this manual cover both H-outrigger and X-outrigger versions?

Yes. The manual covers both variants, with separate sections for each outrigger type. Serial numbers are listed on the cover.

Is this the actual factory manual or a reformatted version?

It is a direct scan of the original Komatsu Operation & Maintenance Manual SEAM011402. No rewriting, no cropping, no missing pages.

What torque specifications are included in the 455 pages?

Torque values appear throughout the manual for fasteners on the engine, transmission, outrigger mounts, hydraulic fittings, and boom assembly. Each spec is given with the correct tightening sequence where applicable. You will find values like 200 ft‑lb for outrigger mounting bolts and specific inch‑pound values for small‑diameter capscrews. The manual also includes a general torque table for standard bolts in the appendix.

Can I access the manual immediately after purchase?

Yes. The access link becomes available instantly after payment. You’ll receive a PDF file that you can save to any device.

Don’t waste time cross‑referencing aftermarket data or hoping your printout is correct. Get the real thing and get the job done. Access the Factory Manual now from AutoRepairManuals.
