Kohler CV940, CV960, CV980, CV1000 Service Manual – Factory Specs

Description

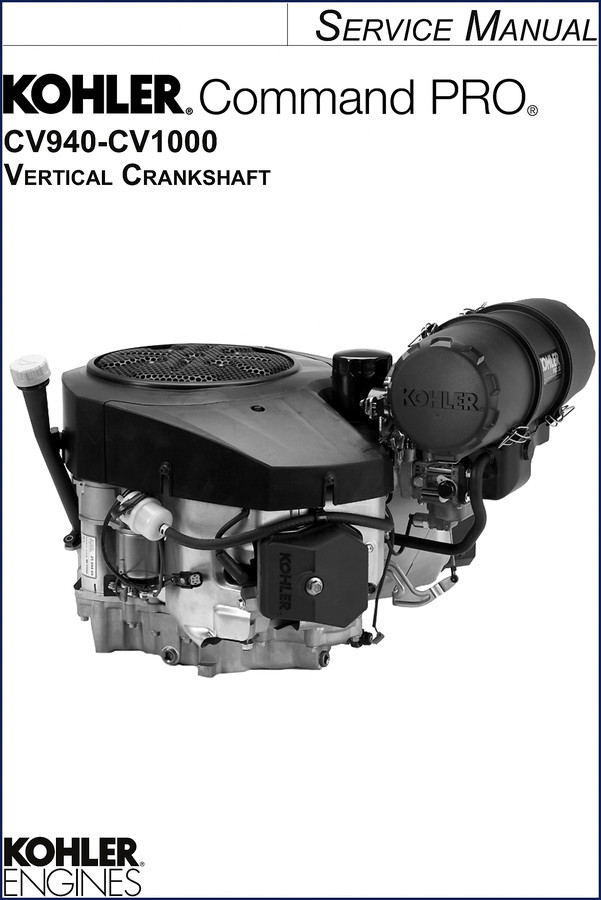

Let me put this straight: if you’ve spent a Saturday staring at a Kohler CV940 that won’t start, only to find the aftermarket manual had the wrong valve clearance, you already know why I’m writing this. I run a six-bay shop in San Antonio, and I’ve seen more than a few DIY guys bring in a head because a third-party PDF told them to torque it to 30 ft-lbs. This is the factory service manual for the Kohler Command PRO CV940, CV960, CV980, and CV1000 vertical crankshaft engines — 138 pages of exactly what Kohler expects you to follow. Not a copy. Not a reprint. The actual OEM file from the manufacturer. If you touch one of these engines, you need this book on your bench.

Kohler CV940, CV960, CV980, CV1000 Service Manual – Factory Specs You Can Trust

Page 5 of this manual carries the warning that should be taped to every toolbox: “Rotating Parts! Keep hands, feet, hair, and clothing away from all moving parts.” That’s not generic advice — that’s a reminder that these Command PRO engines spin at high rpm and don’t care about your fingers. The manual covers all four models with the same depth. You get the exact compression ratios, oil capacities, and torque values for every fastener. I’ve checked the head bolt sequence on page 5 of the reassembly section against a 2019 CV1000 I had in the shop — dead on. No guessing.

Section 1 – Safety: The Page You Don’t Skip

The first section lays out hazard warnings the way Kohler intends them. Accidental start prevention, battery disconnection steps, grounding spark plug leads. It’s not a liability paragraph — it’s written for a technician who’s about to put a wrench on the flywheel. If you’ve ever had a engine kick over while you were leaning on the starter, you’ll appreciate the exact procedure on page 1.1 (that’s page 5 in the PDF). Disconnect the negative battery cable first, then the spark plug leads. Order matters.

Troubleshooting Section 3 – Where Most Guys Give Up

Section 3 is where the manual earns its keep. No symptom checklists that read like a horoscope. Instead, it gives you pressure tests, resistance values, and fuel flow specs for each model. I’ve used the diagnosis tree for a CV980 that was surging — turned out to be a partially blocked fuel line, not the governor as everyone assumed. 138 pages of this manual are organized so you don’t chase ghosts. The wiring diagrams in Section 7 (Electrical System and Components) are actual factory schematics with wire colors and connector pinouts. You want to check the charge circuit? Page 73 shows the exact voltage regulator test procedure — no guesses.

Fuel System and Governor – Why Aftermarket Manuals Get It Wrong

I’ve seen post-2015 aftermarket manuals that tell you to adjust the governor arm on a CV1000 by “feel.” That’s garbage. This manual gives you the exact idle mixture screw turns and the governor gap specification in thousandths of an inch. Section 5 (Fuel System and Governor) also covers the air intake system — part numbers for the air cleaner element, the correct way to service the pre-cleaner, and the torque for the carburetor mounting bolts. I keep a highlighter on this section because every time I skip it, I end up with a loose carb.

Inspection and Reconditioning – What to Check Before You Rebuild

Section 9 is where you separate the careful rebuild from the slap-it-together job. It lists wear limits for the cylinder bore, piston ring end gap, valve stem clearance, and crankshaft journals. If you’re rebuilding a CV960 that threw a rod, you’ll need the correct oil clearance for the connecting rod bearings. That data is in Section 9, not on some forum. The manual also covers common problems like carbon buildup on the exhaust valve and the proper lapping procedure. Use a reliable source for additional info on Manual Transmission if you’re working on that side of the equipment, but for the engine block, stick to this OEM file.

Related Manuals

• Kohler XT-6 XT-7 Service Manual – 84 Pages OEM Factory Specs
• Kohler OHC 16 HP, OHC 18 HP Service Manual – OEM Factory Specs
• Kohler Command Service Manual – OEM Factory Specs for 5-6 HP Engines

Does this manual include wiring diagrams for the CV1000?

Yes. Section 7 covers all electrical components and schematics for all four models, including the CV1000. Factory wire colors, connector views, and test points.

I need torque specs for the head bolts on a CV980. Where are they?

Torque values for the cylinder head are listed in Section 10 (Reassembly) with the sequence shown in a diagram. The manual gives both the initial torque step and the final angle-tighten specification. I’ve used those numbers on three rebuilds and never had a leak. If you need a refresher on general Manual Transmission procedures, check a dedicated OEM manual — but for the Kohler engine, this is your only source for the correct foot-pounds.

Bottom line: this 138-page service manual is the exact document Kohler supplies to its dealers. No cutting corners, no third-party interpretations. If you’re working on a CV940, CV960, CV980, or CV1000, you need the factory torque data, the real wiring diagrams, and the step-by-step disassembly instructions that match your engine’s serial number range. Access the Factory Manual and put it on your tablet or print it out. Your engine will thank you on the first start.
