Knorr-bremse SB6, SB7 2005 Service Manual

You’ve got a truck with Knorr-bremse SB6 or SB7 disc brakes, and the brakes are dragging, or a pad is worn unevenly, or you pulled a caliper off and now you’re staring at a pile of parts and no torque table. That’s the spot where aftermarket PDFs get you fired. This Knorr-bremse SB6, SB7 2005 Service Manual is the same 54-page book that VDL Bus & Coach issued in 2005 for their pneumatic disc brake systems. No reprints, no guesses—just the factory sequence.

Torque Requirements: Page 9 Specs

Section 2.4 lists every torque value for axial and radial disc brakes. You don’t eyeball these numbers. A caliper bracket bolt at the wrong torque either snaps or backs off. Page 9 gives you the exact ft-lb (Nm if you prefer, but we work in imperial here) for guide pins, caliper mounting, and actuator fasteners. If you’re rebuilding an SB6 or SB7, that page saves you a come-along and a tow truck call.

Pad Replacement: Axial and Radial Procedures

Chapter 6 walks pad removal and fitting for both versions with and without a shear adapter. Section 6.1.1 covers the version without shear adapter (61), while 6.1.2 hits the shear adapter version. You also get wear indicator fitting instructions for normally closed or normally open types. Every step is laid out in sequence—no skipping the cable guide fitting in section 6.3. The manual even shows you which rubber bush to check for wear (6a, 6c, or 6d) on page 18.

Does This Manual Cover Both SB6 and SB7?

Yes. The title says SB6…/SB7… and the book covers axial and radial disc brakes. Section 1.1 breaks down axial disc brake components, section 1.3 does the radial side. If you need service kits, part numbers are listed under 1.2 and 1.4. Wear indicator kits are called out separately. This is not a generic “covers all models” claim—it’s a specific factory document that treats the two brake families the way they should be treated: with their own exploded views and torque tables.

3 Tools You Need Before Starting

Section 2.1 lists service tools required for any disassembly. You’ll need the ZB9031-2 alignment tool for wear checks (section 5.1.5). Don’t have it? Don’t start. The manual also calls out diagnostic equipment in 2.2 and approved lubricants in 2.3. Lubrication spec matters—wrong grease swells the rubber bush and locks the guide pin. That’s a caliper failure waiting to happen. The 54 pages include 9 pages of service tools and diagnostics alone.

Caliper Replacement: Factory Sequence

Chapter 8 covers caliper removal and fitting. Section 8.2.1 walks fitting the caliper (1) to the carrier (2). Then you go through outer cap (10), steel cap (13a), and cap (68) installation. Each cap has a specific torque value and seal orientation. Miss one cap and you get moisture ingress and a frozen adjuster. The manual’s instruction sequence is designed so you don’t have to backtrack—every step is numbered and referenced to the exploded view on page 37.

Source Validity: OEM Print vs Aftermarket

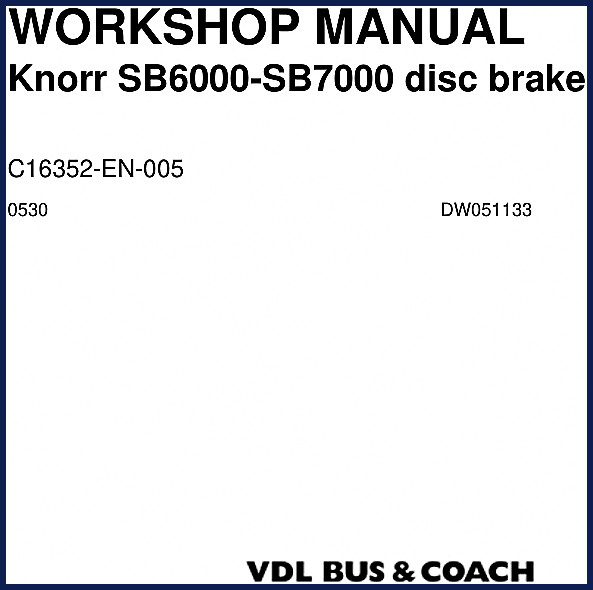

This is a genuine Knorr-bremse service manual printed in 2005. The cover says “Workshop Manual Knorr SB6000-SB7000 disc brake” with document number C16352-EN-005. Compare that to an aftermarket compilation that copies torque tables from a different model year and misses the shear adapter update. Aftermarket manuals often leave out the rubber bush to guide pin clearance check on page 26. That clearance determines whether your caliper aligns or drags. This OEM document includes it. You trust the factory or you trust a typist.

If you need other factory resources, check the Knorr-Bremse Air Disc Brake 2011 Service Manual for newer models, or pair this with the Knorr-Bremse ABS6 Diagnostic System Manual for electronic diagnostics. For non-brake work, the White Outdoor LT-5 700 Series 2005 Service Manual – OEM Factory Specs covers small equipment. Outside the shop, understanding Manual Transmission principles helps when you’re dealing with driveline-related brake drag. And if you’re rebuilding a manual transmission, the same torque discipline applies—see Manual Transmission basics.

FAQ

Does the manual include torque specs for the actuator chamber bolts?

Yes. Section 2.4 lists all torque requirements, including the chamber-to-caliper bolts. You get the value in ft-lb.

Which pages cover brake actuator replacement?

Chapter 12, pages 47-48, covers removal and fitting of both standard brake chambers and spring brakes. The procedure is the same for axial and radial brakes.

Where do I find the wear indicator wiring diagram?

Section 1.2.1 and 1.4.1 describe wear indicator kits, but no wiring diagram is included. The manual focuses on mechanical replacement of the indicator sensor and cable guide fitting (section 6.2.1). If you need electrical schematics, you’ll need the vehicle-specific wiring manual.

Can I use this manual for off-highway trucks?

These brakes were designed for heavy commercial vehicles, typically buses and coaches. Check your axle rating. The SB6/SB7 are 19.5” and 22.5” wheel applications. The service procedures apply to any vehicle equipped with Knorr-bremse axial or radial disc brakes, but torque values are based on the OEM axle specifications.

Factory torque specs, step-by-step pad and caliper service, and 54 pages of Knorr-bremse engineering. Access the Factory Manual and put the OEM data on your bench.
