Kawasaki 95, 115ZV Training Manual – Factory Torque Converter & Transmission Data

If you are rebuilding a torque converter or transmission on a Kawasaki 95, 115ZV and you do not have the factory diagnostic checklist, you are working blind. I have seen technicians skip the pre-start clutch pressure test and then wonder why the machine creeps in neutral. That is a wasted day. This is a 420-page OEM Training Manual – not a reprint, not a third-party interpretation. It was written by Kawasaki Heavy Industries for their service departments. That is the only thing I will recommend for this kind of work.

Torque Converter and Transmission Group: What This Manual Covers

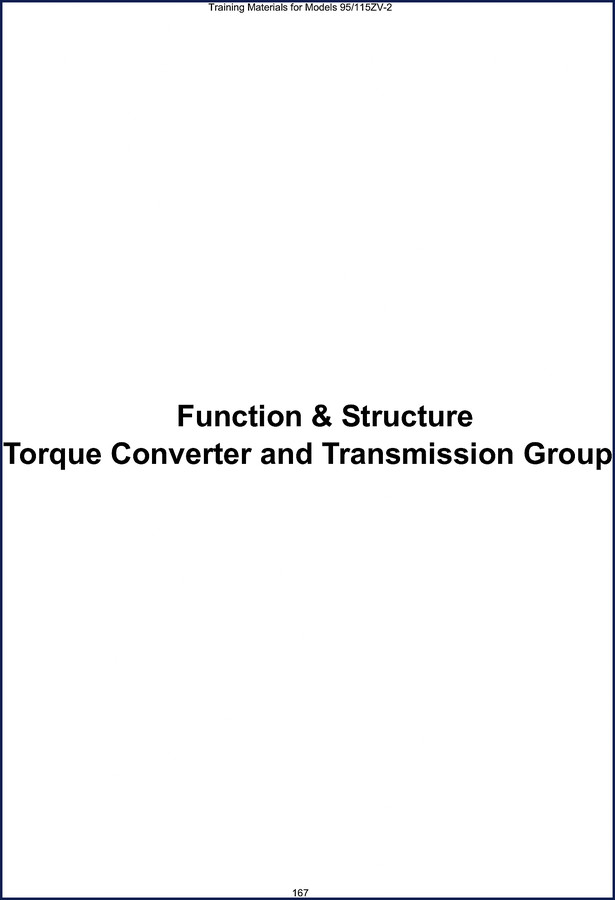

The main section is titled “Torque Converter and Transmission Group.” It walks you through the function and structure of the hydraulic circuit. Page 167 starts the diagnostic procedure. You get a full checklist that must be completed before start-up: transmission cooler cleaned, in-line pressure filter replaced, linkage checked. If you skip any of those, the test data is worthless. The manual gives you the exact order and the spec for “operating temperature” – no guesswork.

For DIYers or equipment owners who maintain their own loaders, this is the difference between a successful rebuild and a comeback. You are not guessing which line to pressure-test. The manual lists every clutch pressure test: F1, F2, F3, F4, N1, N2, R1, R2, R3 – all with expected MPa and psi values. That is the kind of data that saves you from buying a second torque converter.

Diagnostic Data Sheets – The Pre-Start Checklist

Page 2 of the manual is a blank data sheet that the Kawasaki factory expects a technician to fill out. It records hours, machine model, ambient temperature, tire size, brand and specification of oil. Then it lists the tests: clutch pressure at low idle, clutch pressure at high idle, high idle RPM, low idle RPM, T/C stall RPM, hydraulic stall RPM, full stall RPM, creep with brake (F1) and creep with brake (R2). You fill in initial test and retest columns. If your initial test data is incorrect, the manual says “correct and retest.” That is not a suggestion – it is the procedure. I have seen guys skip the retest and ship a machine that still had a stuck regulator valve.

Having this checklist in front of you keeps you honest. It also gives you a paper trail if the customer claims a warranty issue. The manual is designed to protect you and the dealer.

Pressure Test Kit Part Numbers and Gauge Specs

Kawasaki specifies exactly what gauges you need. Test kit part number ZZKL3002A. It includes a 500 PSI gauge for T/M pressure, a 1000 PSI gauge for hydraulic pilot and brake valve pressure, and a 6000 PSI gauge for main hydraulic, steering, and unloader valve setting. The manual tells you the adapter part numbers – 1/4″ NPT adapters (ABH121504N) and a 144″ hose. If you need to check Orbitrol pilot pressure, you order item 7 (38900-23510-OSP) separately. No guessing which fitting works. You buy what Kawasaki says, or you risk a blown seal.

This section alone is worth the price if you are setting up a service truck. I keep a copy of this page in my tool box because I have been burned buying cheap gauge kits that do not have the right adapters. Do that once and you learn.

Critical Installation Recommendations for Rebuilt Transmissions

Page 4 of the manual is titled “Critical recommendations for installing T/C’s, and T/M’s.” It is a dealer release – meaning Kawasaki does not want you to skip it. It says: “Inspect flywheel pilot bushing.” That sounds obvious, but I have seen rebuilt transmissions fail because a worn pilot bushing was reused. The manual goes into the detail of what to look for and how to measure it. If you ignore it, warranty coverage can be voided. That is not a threat – it is a fact.

When you are dealing with a 95 or 115ZV loader, the torque converter and transmission are the heart of the machine. One misalignment at installation will chew up a pump drive gear in 50 hours. This manual gives you the measurements and the order of assembly so you do not have to learn that the hard way.

3 Reasons to Trust OEM Training Manuals Over Aftermarket

First, the data comes from Kawasaki Construction Machinery Division. The torque specs and pressure values are what the factory uses – not something a third party reverse-engineered.

Second, the training manual includes blank data sheets and checklists that aftermarket books never reproduce. You need those forms to document the job.

Third, the manual covers model-specific differences between the 95 and 115ZV-2. Aftermarket sources often treat them as identical, but the stall RPM ranges differ. You do not want to break a $2,000 torque converter because you used the wrong spec.

If you are also maintaining other Kawasaki equipment, check the K3V112DT Instruction Manual for pump details, or the Kawasaki Zx7R Rr Quick Reference Guide for motorcycle applications. For two-wheeled Kawasakis, the Kawasaki Ninja ZX-6R ZX-6RR Workshop Manual covers engine and chassis specs. For a basic understanding of how a torque converter couples to a Manual Transmission, that external article explains the principles. The same fundamentals apply here, but always use the factory spec for your specific loader – see Manual Transmission for a general overview, but never substitute it for the OEM numbers in this manual.

Frequently Asked Questions

Does this manual cover both the 95 and 115ZV models side by side?

Yes. The training manual is written for Models 95/115ZV-2. It includes specific diagnostic data for each model where they differ, such as stall RPM and clutch pressure values.

Is this a repair manual or a training manual?

Training manual. It focuses on diagnostic procedures, pressure testing, and installation recommendations. It does not include step-by-step engine overhaul instructions – that is in the service manual.

What format is the access?

The original file is a PDF of 420 pages. It is not scanned – it is the original factory PDF with bookmarks. You get the same document Kawasaki sends to dealers.

Can I use this manual for a Kawasaki 70ZV or 90ZV?

The diagnostic principles are similar, but torque converter stall and clutch pressures are specific to the 95 and 115ZV. Using these specs on another model can cause misdiagnosis. Get the correct manual for your machine.
