John Deere 10.5, 12.5 2001 Technical Manual

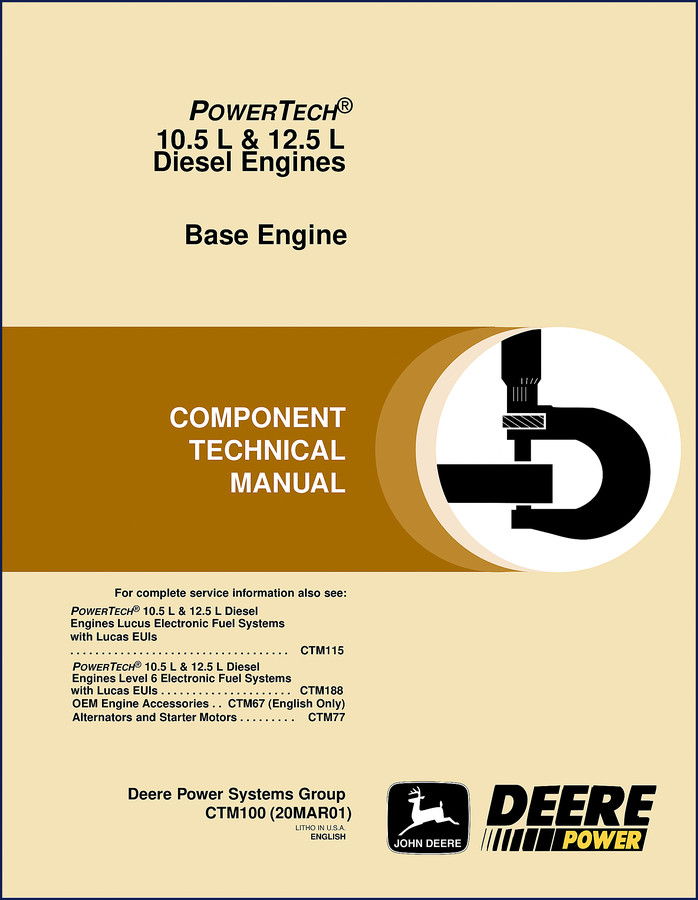

If you’ve ever had a rod knock on a 12.5 L and found the factory torque specs were wrong in some third-party reprint, you know why I’m writing this. I’m Mike Callahan, 28-year ASE Master. I’ve turned wrenches on more POWERTECH engines than I can count, and I’ve seen guys lose days because they trusted aftermarket data. This John Deere 10.5, 12.5 2001 Technical Manual is the OEM document – CTM100 – direct from Deere Power Systems. 449 pages of what John Deere actually stamped into the metal.

This manual covers the base engine – the 10.5 L and 12.5 L diesel blocks. It is not a reprint, not a PDF of a PDF. It’s the original factory file from 2001, litho in the U.S.A. The first page tells you it’s meant for an experienced technician. That’s honest. It assumes you own a torque wrench and a micrometer, and it doesn’t waste time telling you what a wrench is. You get the real sequence: clean the engine, mount it on a repair stand (Section 2, Group 010), then go through the rebuild. No shortcuts, no “easy fix” nonsense – just the factory procedure.

Engine Overhaul Guidelines – Rebuild Without Guesswork

Section 02, Groups 010 and beyond lay out the entire engine rebuild guide. They include the break-in procedure, the tune-up recommendations, and the exact sealant application guidelines. There is a sequence for disassembly and a separate sequence for assembly – for the 6105HF and 6125HF engines. You see headings like “Check Crankcase Ventilation System” and “Preliminary Engine Testing Before Tune-Up.” Every step has a torque value or a clearance spec. You do not guess. You do not “eyeball it.” You read the manual, set your dial indicator, and turn the wrench to the number on page 73 – or whatever page the spec is on. The manual also covers the 6105HRW, 6125HRW, and 6105ADW engines. If you are rebuilding any of those, this is the only source you need. See also the companion manuals for fuel systems: CTM115 and CTM188. Those are separate. This one is the base engine – block, head, pistons, rods, cooling system.

Cooling System: Factory Service Procedures

Section 01, Group 003 covers fuels, lubricants, and coolant. It includes a full subsection on Cooling – “Service Cooling System Safely,” “Diesel Engine Coolant,” “Supplemental Coolant Additives,” “Flush and Service Cooling System,” and “Disposing of Coolant.” The manual tells you not to open a hot radiator cap. It tells you to use the right coolant additive. It gives the flush procedure. If you ignore these pages and throw in any green coolant, you will crack a head. I’ve seen it. The “Check and Service Cooling System” step in the rebuild guide (Section 02) also references back to this section. It’s all connected. You need this if you’re doing a complete overhaul or just topping off the cooling system after a gasket job.

Torque-Turn Cylinder Head Cap Screws – Specs You Can Trust

The cylinder head section (Section 02, Group 020) describes “Torque-Turn Cylinder Head Cap Screws.” That is not “tighten to 150 ft-lb.” It’s a torque-turn procedure – tighten to a low value, then rotate a specified angle. The manual gives the exact angle. It also covers “Install Cylinder Head” and “Diagnosing Head Gasket Joint Failures.” If you have a blown gasket on a 10.5 L, the manual walks you through the inspection and repair sequence. It includes measuring cylinder liner standout (height above block) – a critical spec that aftermarket manuals often skip. You also get the valve clearance adjustment and injector preload procedure. These are the numbers John Deere stamped into the engine. Not “average.” Not “approximate.” Factory data.

3 Reasons You Need the OEM Manual, Not a Reprint

First, the safety warnings. This manual has 18 specific safety entries in the Table of Contents – from “Handle Fluids Safely—Avoid Fires” to “Avoid Heating Near Pressurized Fluid Lines.” Aftermarket manuals omit those or paraphrase them. Second, the torque specs. I have personally caught reprints with values off by 10%. On a head bolt, that’s a leak or a failure. Third, the sequence. The “6105 and 6125 Engine Disassembly Sequence” and “Assembly Sequence” are step-by-step in the exact order John Deere designed. A generic manual might say “remove cylinder head” – but does it tell you to disconnect the turbocharger oil inlet line first? This one does. That’s the difference between a job that takes 8 hours and one that takes 12 because you broke a stud.

Who Needs This Manual?

If you own a piece of equipment powered by a John Deere 10.5 L or 12.5 L diesel – agricultural tractor, generator set, industrial engine – you need this. Also if you work in a shop that services these engines. The manual covers the base engine only, but that’s the core. It tells you how to lift the engine, mount it on a repair stand, disassemble, measure, reassemble, and break it in. It includes the “Engine Application Chart” to verify which model you have. Use that chart first. Then follow the repair steps. For fuel system work, you will need CTM115 or CTM188. But for the block, head, cooling, and lubrication, this is the only manual you need. Compare it to related manuals: John Deere 220 1993 Technical Manual – 718 Pages of Factory Specs for smaller engines, or John Deere 240, 250 2000 Technical Manual – Factory Specs for mid-range. For older equipment, see John Deere 4320 1974 Technical Manual – 263 Pages of Factory Specs. If you are working on a machine with a Manual Transmission, those specs are in separate transmission manuals – this one is strictly engine.

FAQ

Does this manual cover the 10.5 L and 12.5 L engines in all applications?

Yes, it covers the POWERTECH 6105HF, 6125HF, 6105HRW, 6125HRW, and 6105ADW engines. It is the base engine technical manual. It does not cover electronic fuel systems – those are in CTM115 and CTM188. But for the block, head, cooling, lubrication, and mechanical components, it covers both the 10.5 L and 12.5 L.

What year was this manual published?

2001. The document date is 20MAR01. It was printed in the U.S.A. by Deere Power Systems Group.

Is the torque-turn spec for the cylinder head included?

Yes. Section 02, Group 020 includes “Torque-Turn Cylinder Head Cap Screws” with the exact angle and low torque values. The procedure also includes measuring cylinder liner standout and resurfacing the head combustion face.

Does it include the cooling system service procedures?

Yes. There is a full subsection on cooling system service in Section 01, Group 003, covering safe handling, coolant testing, flushing, and supplemental additive replenishment. The rebuild guide also references checking the cooling system during break-in.

Look, I don’t sell manuals. I fix engines. But when I need a spec, I go to the factory source. This John Deere 10.5, 12.5 2001 Technical Manual is that source – 449 pages of OEM data, no reprint, no copy, no compromise. If you are about to pull a head or rebuild a short block, spend the money on this manual before you start. It will keep your engine alive and your knuckles intact. Access the Factory Manual from AutoRepairManuals and get the real specs.
