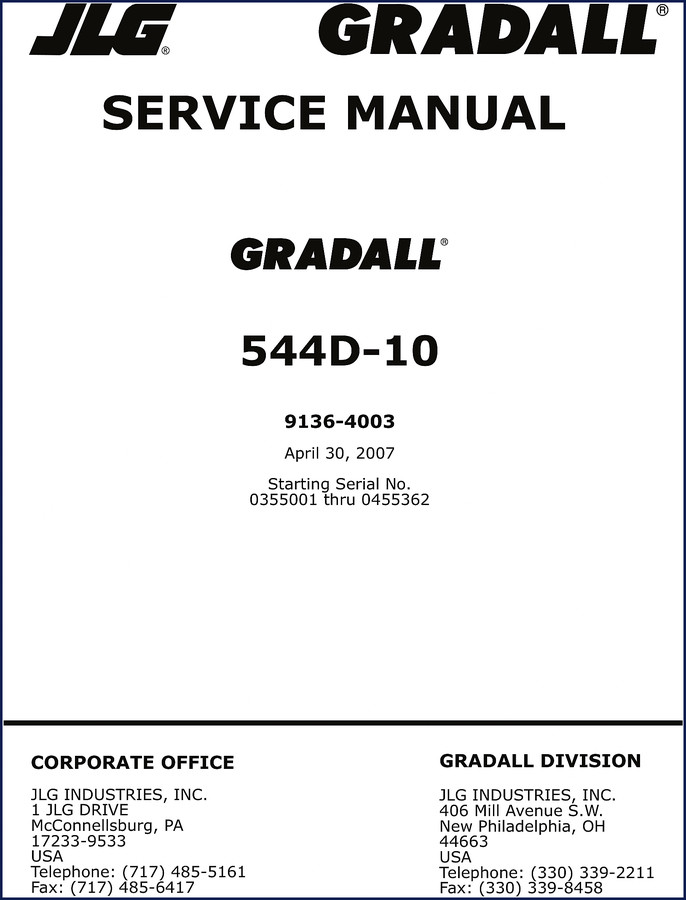

JLG 544D-10 2007 Service Manual

If you’re wrenching on a JLG 544D-10 2007 Service Manual is what you need on the bench. I’ve seen guys chase gremlins for two days because they used a third-party wiring diagram. This 392-page factory binder gives you JLG’s own torque values, hydraulic pressures, and diagnostic steps. No guesswork. You want the boom to lift without dropping? You start here.

What the 392 Pages Cover

Seven sections break this machine down into systems you can actually trace. Engine overhaul specs, transmission disassembly, hydraulic pump removal and setup, electrical schematics for the entire cab and chassis, steering gear, axles, and the frame structure. Each section opens with a required tool list and a set of safety warnings. Page 73 lists every critical torque spec for the powertrain and boom mounting bolts. That’s where you start before reassembly.

Torque Specs and Fluid Capacities

Every bolt on this material handler has a factory torque value. The manual lists them in a single reference table on page 73 – hydraulic fitting torque, wheel lug nuts (480 ft-lbs), engine head bolts. Fluids too: engine oil capacity, hydraulic tank fill, transmission sump. You get the exact viscosity grades and fill procedures. No more calling your buddy who “thinks it’s Dextron”.

3 Reasons to Choose OEM Documentation Over Aftermarket

Aftermarket manuals reuse schematics from different models and leave out critical bulletins. OEM means JLG printed this for their own techs. Reason one: torque specs are verified against the factory assembly line. Reason two: wiring diagrams show exact connector pins and wire colors for serial number range 0355001–0455362. Reason three: safety warnings are embedded at each step – lockout/tagout procedures, pressure bleed instructions, support stands needed.

Does This Manual Cover the Hydraulic System?

Yes, and it’s the section I use most. The hydraulic chapter includes pump and control valve schematics, pressure setting procedures for the load-sensing system, and bleed instructions for the pilot circuit. If you need to replace a main control valve spool, the manual tells you which shims go where. It also covers the auxiliary hydraulic circuit for attachments like grapples or forks.

Safety Warnings: What You’ll Find in the Manual

Every procedure starts with a warning – always worded for the specific step. “Release hydraulic pressure before disconnecting lines.” “Support the boom with a solid stand, not a jack.” I’ve worked in shops where a tech skipped the pin removal sequence and dropped a 2000-lb attachment. The manual won’t let you miss that. It’s written for safety first, speed second.

Who Should Use This Service Manual

Home garage guys who service their own Gradall, fleet mechanics, rental yard technicians. If you can read a torque wrench and follow a procedure, you can use this. Beginners should start with the periodic maintenance section before diving into engine rebuilds. The manual even lists the tools you’ll need – a hydraulic pressure gauge set, a certain spanner wrench for the pump, a 1-inch drive torque wrench for the wheel nuts.

For a different model, check the JLG RS10 2013 Service Manual – Factory Specs & Diagnostics for smaller material handlers. The JLG Service & Maintenance Manual 30e, 35e, 45e covers electric scissor lifts. If you need a manual for a larger telehandler, the JLG Service and Maintenance Manual 1532E-2658E is a solid reference.

Understanding how a Manual Transmission works is helpful for this machine’s ZF transmission, which is covered in full. The manual includes shift pattern diagrams and clutch pack clearance specs. If you’re more familiar with a Manual Transmission from automotive work, the hydraulic control on this Gradall uses a different shift logic – the manual explains it clearly.

There’s no substitute for the factory print. Aftermarket PDFs often blur schematics or omit pages. This is a clean scan of the original JLG document, 392 pages, searchable, with bookmarks for each system. You can print the pages you need and take them to the bay. Access the Factory Manual and get the job done right.

Is this the same as the operator’s manual?

No, this is the full service manual with repair procedures, not just operation and periodic maintenance.

Does it include wiring diagrams?

Yes, it includes complete electrical schematics for the 544D-10, covering both the engine control system and the machine control circuit. You’ll find connector pinouts, wire color codes, and component locations. I’ve used these diagrams to trace a short in the joystick harness – saved me half a day. Page 214 has the main chassis harness layout.

What serial numbers does it cover?

Serial numbers 0355001 through 0455362 and 016000192 through 0160003968, excluding 0160003856.

Can I print this manual?

Yes, the PDF is printable.
