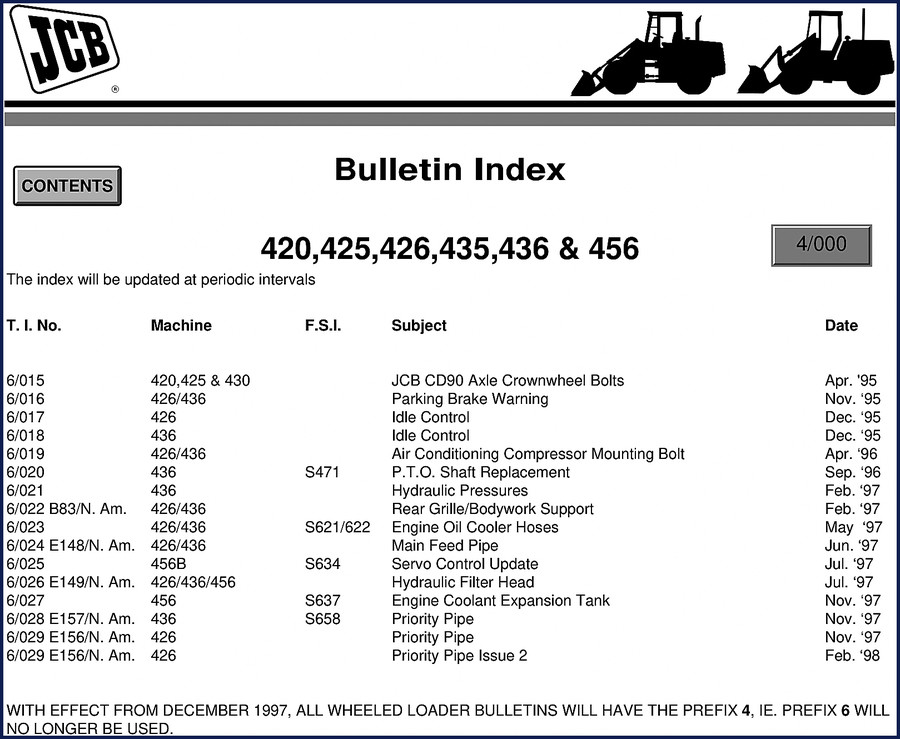

JCB 420, 425, 426, 435, 436 1997 Technical Manual

I’ve seen too many guys lose a crownwheel because they grabbed a generic torque chart off the internet. If you’re working on a JCB 420, 425, 426, 435, or 436 wheeled loader from the late 90s, this 1997 Technical Manual is the actual factory bulletin index. It’s 35 pages of what JCB sent to dealers – not a reprint, not a third-party summary. Straight from Rocester.

Torque matters.

Bulletin 6/015: Crownwheel Bolt Torque Specs

This bulletin covers the CD90 axle on 420, 425, and 430 machines. The factory procedure replaces the 8.8 grade bolts and locktabs with Verbus Ripp 12.9 grade bolts. Torque spec: 166 Nm (125 lbf ft). That’s not a suggestion – it’s the number JCB engineers calculated. Use new bolts only, part number 826/01080. The bulletin tells you to skip the dowels and locktabs. If you follow a generic manual, you’ll miss that detail.

Parking Brake Warning – What the Factory Says

Bulletin 6/016 addresses a customer complaint: the master warning light and buzzer don’t work when the parking brake is engaged. Affected machines: 426 up to serial 531051, 436 up to 533056. The service procedure is simple – park on level ground, stop the engine, then check the wiring. But you need the original bulletin to see the exact test points. Aftermarket manuals skip this.

Idle Control Bulletins for 425 and 435

Two separate bulletins – 6/017 for the 425 (Dec. ’95) and 6/018 for the 435 (Dec. ’95). Both address idle control issues. If your machine hunts or stalls at idle, these bulletins give the factory adjustment steps. No guesswork, just the settings JCB validated.

Does This Manual Cover the 456B?

The bulletin index includes several entries for the 456B – servo control update (6/025), engine coolant expansion tank (6/027), and hydraulic shut head (6/026). So yes, if you have a 456B, this manual applies. But the primary focus is the 420-436 series. Check the serial number ranges in each bulletin.

3 Reasons to Use OEM Bulletins Over Aftermarket Manuals

First, aftermarket manuals often reprint outdated specs. This is a 1997 original – the bulletins were issued as JCB discovered problems. Second, the safety notice on page 2 reminds you that these instructions assume proper training. Third, the torque values are verified by the manufacturer. You won’t find the Verbus Ripp bolt upgrade in a generic book.

Hydraulic Pressures and Engine Oil Cooler Hoses

Bulletin 6/021 (Feb. ’97) covers hydraulic pressures for the 436. Bulletin 6/023 (May ’97) covers engine oil cooler hoses for 425/436. These are critical updates – a wrong pressure setting can damage the pump, and a failed hose can dump oil onto a hot engine. The factory bulletin gives the exact pressure specs and hose routing.

If you work on other JCB equipment, check out the JCB Vibromax 2006 Technical Manual – Factory Service Bulletins for Vibratory Com and the JCB Teletruk Technical Manual – Factory Bulletin Index (145 pages). For older loaders, the JCB 900 Series 1990 Technical Manual – OEM Factory Service Bulletin Index covers that era.

For a thorough understanding of how the drivetrain interacts with the engine, refer to the Manual Transmission article on Wikipedia. The bulletin index also assumes you have a basic knowledge of Manual Transmission systems.

Is this manual a complete service manual or just a bulletin index?

It’s a bulletin index – 35 pages of factory service bulletins.

Will this manual help me fix a parking brake issue on my 426?

Yes, bulletin 6/016 covers the parking brake warning system for 426 machines up to serial number 531051 and 436 up to 533056. It gives the service procedure for the master warning light and buzzer inoperative condition. You’ll need to check your serial number, but the procedure is direct from JCB. The manual also includes bulletins for idle control, air conditioning mounting bolts, PTO shaft replacement, hydraulic pressures, and more. Each bulletin has the exact part numbers and torque specs required.
